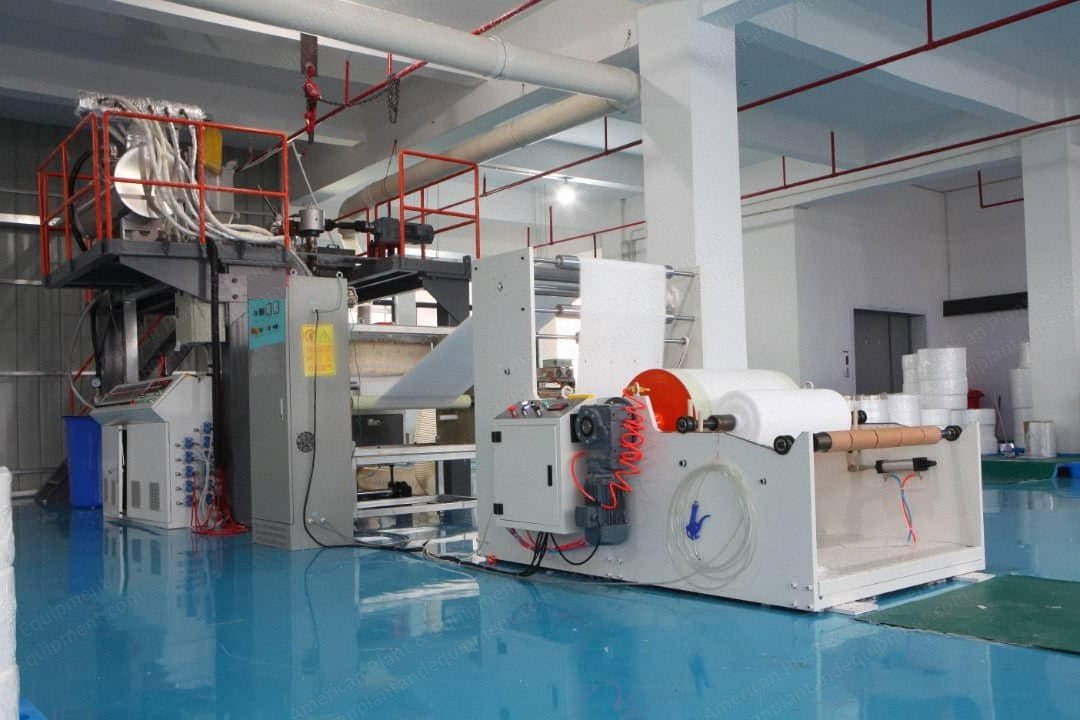

NovaStar, NN131, Melt Blown Cloth Production Line, 600mm Width, 15 to 40 kg/h Capacity (New)

NovaStar, NN131, Melt Blown Cloth Production Line, 600mm Width, 15 to 40 kg/h Capacity

Description

  1. Overview
    1. Plastic automatic charger
    2. Hopper plastic dryer
    3. NN131 single screw extruder
    4. Hydraulic screen changer
    5. Metering pump
    6. T-die
    7. Forming machine
    8. Electrostatic electret device
    9. Colier
    10. Screw air compressor
    11. Air filter
    12. Air dryer
    13. Air tank
    14. Hot air system
  2. Plastic Automatic Charger
    1. Feeding capacity: 200 kg/h
    2. Air pump power: 0.75 kw

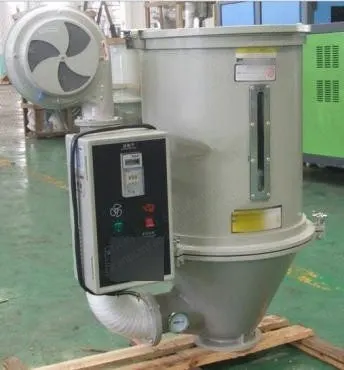

  3. Hopper Plastic Dryer
    1. Hopper cubic capacity: 100 l
    2. Feeding capacity: 50 kg
    3. Heating power: 3.7 kw
    4. Blower power: 0.12 kw

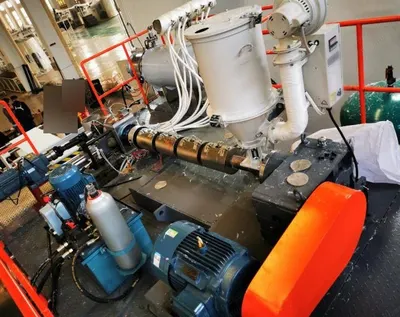

  4. NN131 Single Screw Extruder
    1. Screw and barrel material: 38CrMoAlA, nitride
    2. Screw diameter: 55 mm
    3. Screw L/D: 30:1
    4. Main motor power: 15 kw Siemens standard motor
    5. Main motor speed adjustment: 15 kw ABB inverter
    6. Barrel heating: casting heater with air cooling
    7. Heating power: 2.8 kw x 4 zones
    8. Gear box: ZLYJ series rigid gear box
    9. Extrusion capacity: 15 to 40 kg/h

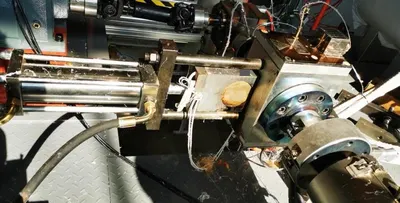

  5. Hydraulic Screen Changer
    1. Motor power: 1.1 kw
    2. Structure: double position, plate type
    3. Heaters: stainless steel heating bar

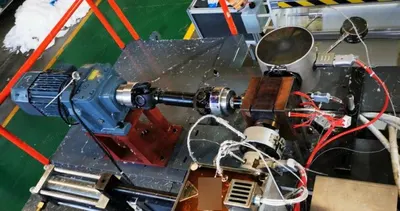

  6. Metering Pump
    1. Motor power: 2.2 kw
    2. Capacity: 30 cc
    3. Speed control: inverter
    4. Heaters: stainless steel heating bar

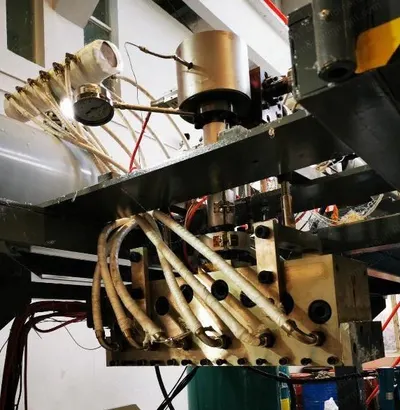

  7. T-Die
    1. Structure: T-die
    2. Material of mould: high quality alloyed steel, surface chrome plated
    3. Flow channel chrome plated, polished
    4. Specification of product: width 600 mm
    5. Air income holes: 12 pcs, high precision temperature control

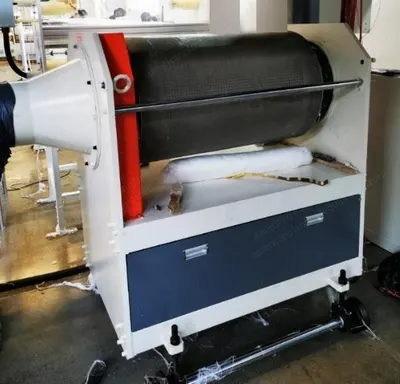

  8. Forming Machine
    1. Motor power: 1.5 kw
    2. Speed control: inverter

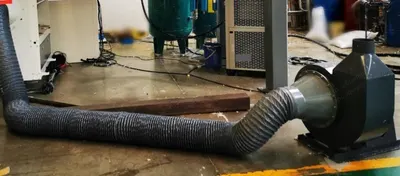

    3. Suction fan: 5.5 kw

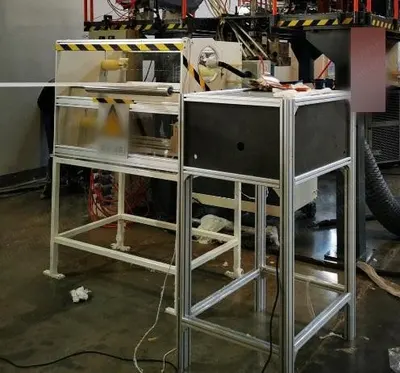

  9. Electrostatic Electret Device
    1. Includes electrostatic generator, voltage regulator, electret frame
    2. Application: generate electrostatic charge, increases the filtering efficiency
    3. Motor power: 2.2 kw
    4. Blades: 4 pcs
    5. Hauling speed control: adopt ABB inverter

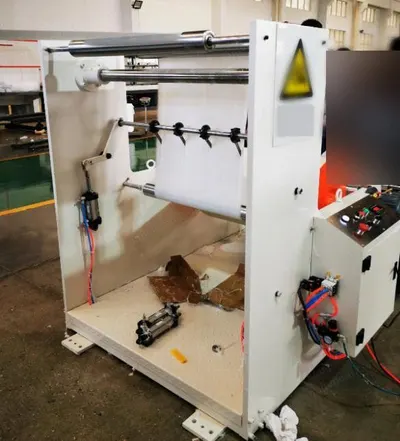

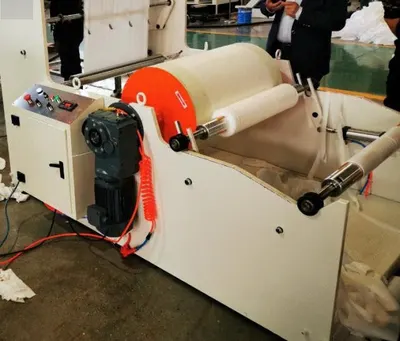

  10. Colier
    1. Coiling shaft: 2 pcs
    2. Compaction: by pneumatic control
    3. Coiling method: by self friction
  11. Screw Air Compressor
    1. Motor power: 37 kw
    2. Structure: screw type, low noisy
    3. PLC control

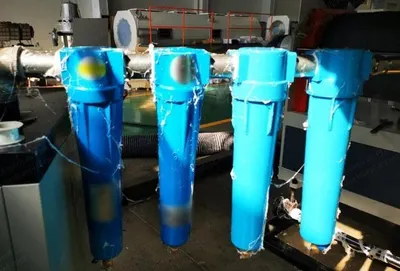

  12. Air Filter
    1. Capacity: 7 m³/min
    2. Pressure: 1.0 mpa
    3. Filtration efficiency: 3 micron / 5 ppm

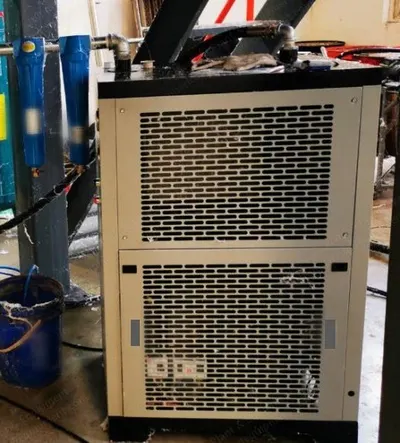

  13. Air Dryer
    1. Capacity: 6 nm³/min
    2. Pressure: 1 mpa
    3. Power: 2 hp

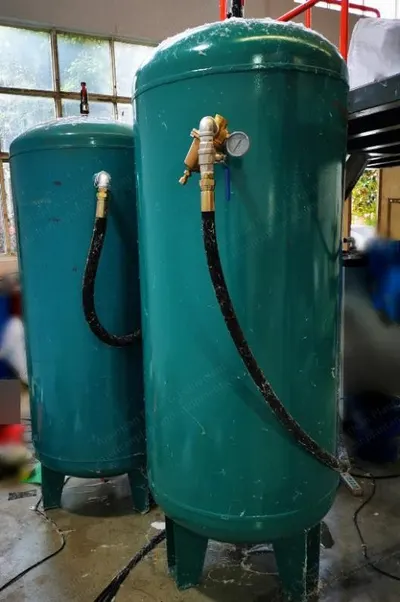

  14. Air Tank
    1. Volume: 1000 l
    2. Pressure: 1.05 mpa

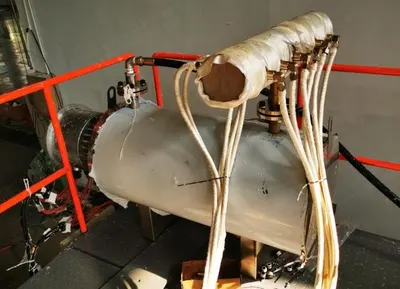

  15. Hot Air System
    1. Heating power: 60 kw
    2. Heating type: electric heating
    3. With heat insulation layer
