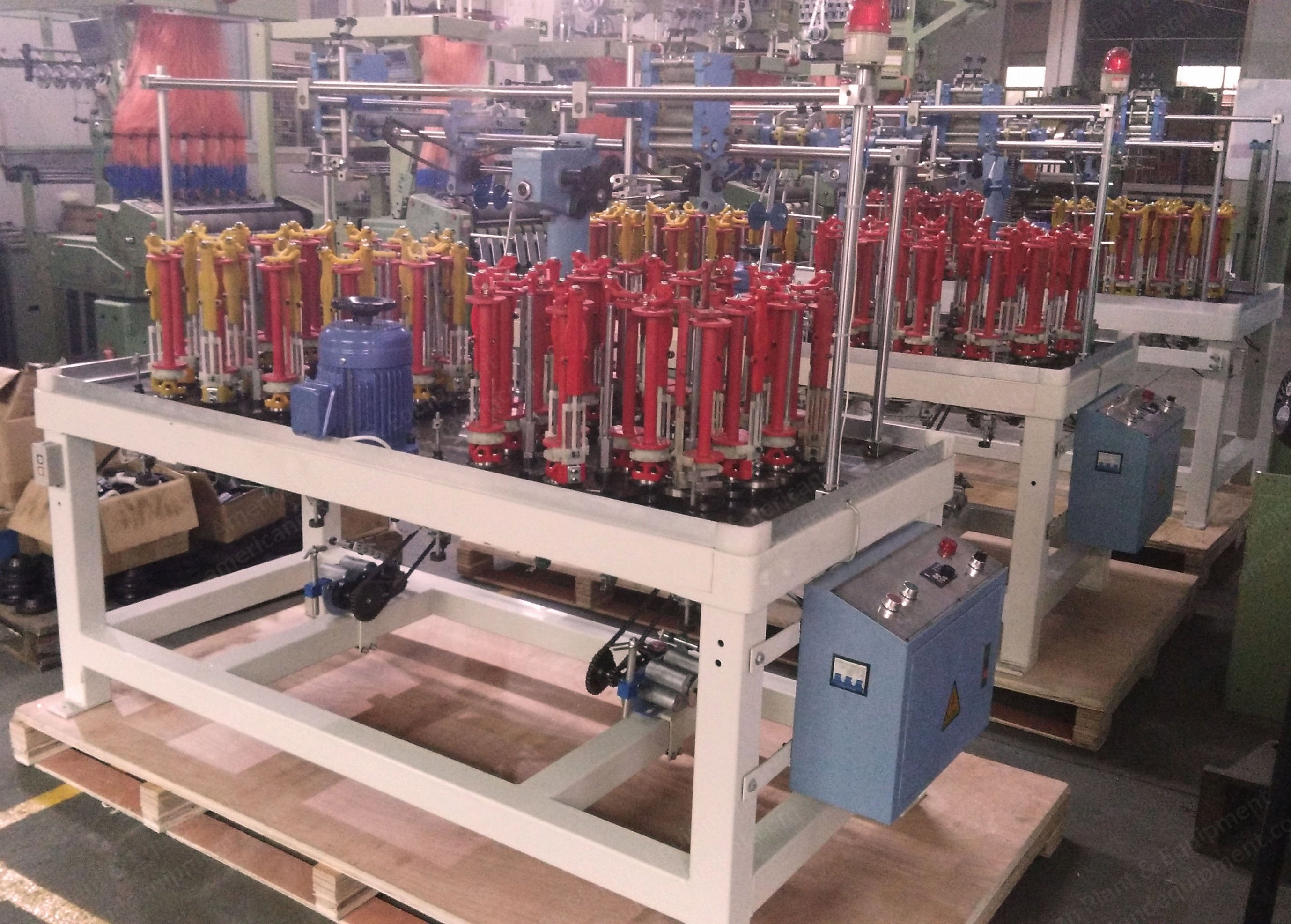

NovaStar, BE103, High-Speed Braiding Machine, 360 RPM Rotor Speed, 1 to 2 HP Motor (New)

NovaStar, BE103, High-Speed Braiding Machine, 360 RPM Rotor Speed, 1 to 2 HP Motor

Description

  1. Overview
    1. Used to make a variety of shoelaces, belts, fishing lines, ropes, decorative ribbons, and curtain accessories.
  2. Features
    1. Material: SG cast iron QT600.
    2. Well-constructed boards consist of two pieces; easy installation.
    3. Heat treatment increases hardness and improves the abrasion resistance of the board.
    4. Horn gears are perfectly aligned to reduce friction.
    5. Rotor nylon pads are made of nylon 66.
    6. Standard bobbin size: Φ48 x 140mm; big bobbin size: Φ70 x 210mm.
    7. Running speed: max inverter speed 60rpm, max motor speed 450rpm, max rotor speed 360rpm.
    8. Productivity per minute: odd number of spindles 1500 to 1800mm/min/head; even number of spindles 1200 to 1500mm/min/head.
    9. Range: 2.5 to 35mm.
  3. Specifications
    1. Model 1: 2 heads, 7 spindles, bobbin 48 x 140mm, rotor speed 360rpm, motor 1 hp, carrier A, B.
    2. Model 2: 4 heads, 16 spindles, bobbin 48 x 140mm, rotor speed 360rpm, motor 1 hp, carrier A, B.
    3. Model 3: 8 heads, 12 spindles, bobbin 48 x 140mm, rotor speed 360rpm, motor 1 hp, carrier A, B.
    4. Model 4: 6 heads, 16 spindles, bobbin 48 x 140mm, rotor speed 360rpm, motor 1 hp, carrier A, B.
    5. Model 5: 2 heads, 24 spindles, bobbin 48 x 140mm, rotor speed 360rpm, motor 1 hp, carrier A, B.
    6. Model 6: 2 heads, 32 spindles, bobbin 48 x 140mm, rotor speed 360rpm, motor 1 hp, carrier A, B.
    7. Model 7: 2 heads, 40 spindles, bobbin 48 x 140mm, rotor speed 360rpm, motor 2 hp, carrier A, B.
    8. Model 8: 4 heads, 9 spindles, bobbin 48 x 140mm, rotor speed 360rpm, motor 1 hp, carrier A, B.
    9. Model 9: 8 heads, 8 spindles, bobbin 48 x 140mm, rotor speed 360rpm, motor 1 hp, carrier A, B.
    10. Model 10: 8 heads, 9 spindles, bobbin 48 x 140mm, rotor speed 360rpm, motor 1 hp, carrier A, B.
    11. Model 11: 4 heads, 13 spindles, bobbin 48 x 140mm, rotor speed 360rpm, motor 1 hp, carrier A, B.
    12. Model 12: 8 heads, 13 spindles, bobbin 48 x 140mm, rotor speed 360rpm, motor 1 hp, carrier A, B.
    13. Model 13: 4 heads, 17 spindles, bobbin 48 x 140mm, rotor speed 360rpm, motor 1 hp, carrier A, B.
    14. Model 14: 2 heads, 21 spindles, bobbin 48 x 140mm, rotor speed 360rpm, motor 1 hp, carrier A, B.
    15. Model 15: 2 heads, 25 spindles, bobbin 48 x 140mm, rotor speed 360rpm, motor 1 hp, carrier A, B.
    16. Model 16: 2 heads, 29 spindles, bobbin 48 x 140mm, rotor speed 360rpm, motor 1 hp, carrier A, B.
    17. Model 17: 2 heads, 33 spindles, bobbin 48 x 140mm, rotor speed 360rpm, motor 1 hp, carrier A, B.
    18. Model 18: 2 heads, 41 spindles, bobbin 48 x 140mm, rotor speed 360rpm, motor 2 hp, carrier A, B.
    19. Model 19: 2 heads, 26 spindles, bobbin 48 x 140mm, rotor speed 360rpm, motor 1 hp, carrier A, B.
    20. Model 20: 2 heads, 46 spindles, bobbin 48 x 140mm, rotor speed 360rpm, motor 1 hp, carrier A, B.
    21. Model 21: 2 heads, 13 spindles, bobbin 70 x 210mm, rotor speed 360rpm, motor 1 hp, carrier C.
    22. Model 22: 2 heads, 16 spindles, bobbin 70 x 210mm, rotor speed 360rpm, motor 1 hp, carrier C.
    23. Model 23: 2 heads, 17 spindles, bobbin 70 x 210mm, rotor speed 360rpm, motor 2 hp, carrier C.
    24. Model 24: 2 heads, 21 spindles, bobbin 70 x 210mm, rotor speed 360rpm, motor 2 hp, carrier C.
    25. Model 25: 2 heads, 25 spindles, bobbin 70 x 210mm, rotor speed 360rpm, motor 2 hp, carrier C.
    26. Model 26: 2 heads, 29 spindles, bobbin 70 x 210mm, rotor speed 360rpm, motor 2 hp, carrier C.
    27. Model 27: 4 heads, 9 spindles, bobbin 70 x 210mm, rotor speed 360rpm, motor 1 hp, carrier C.
