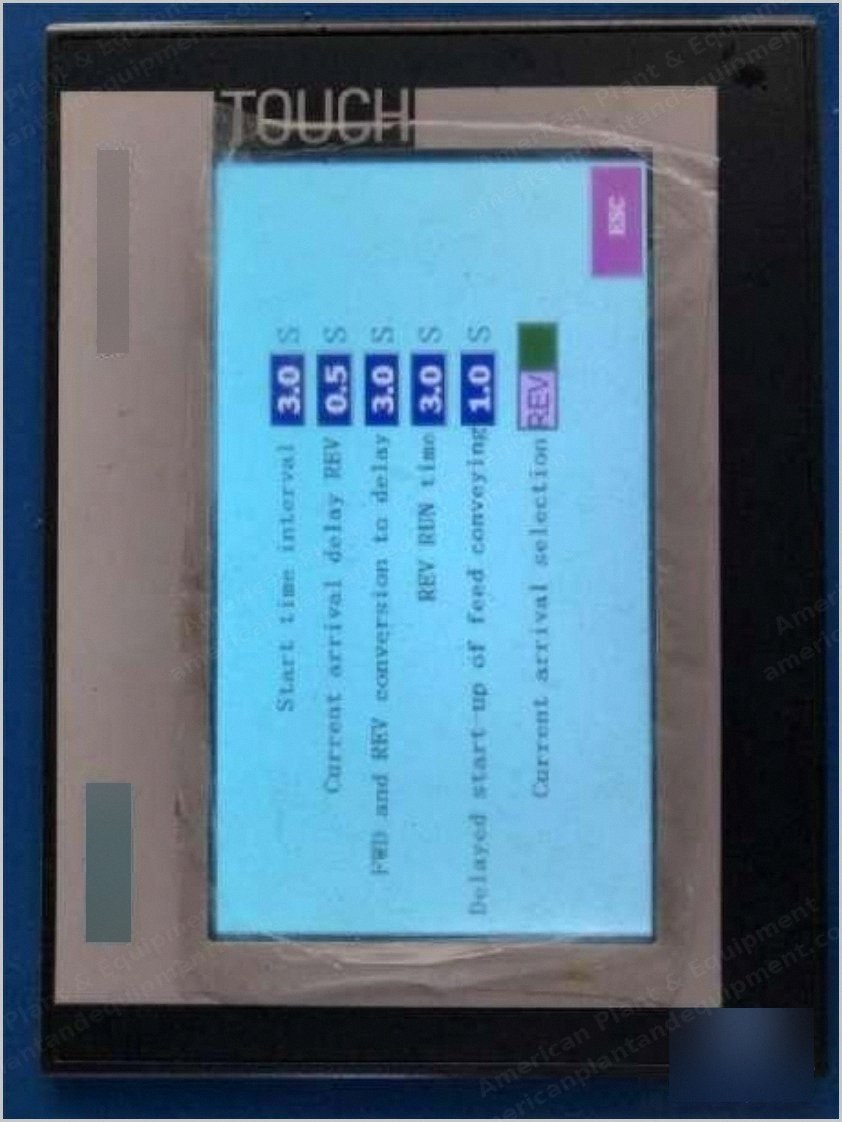

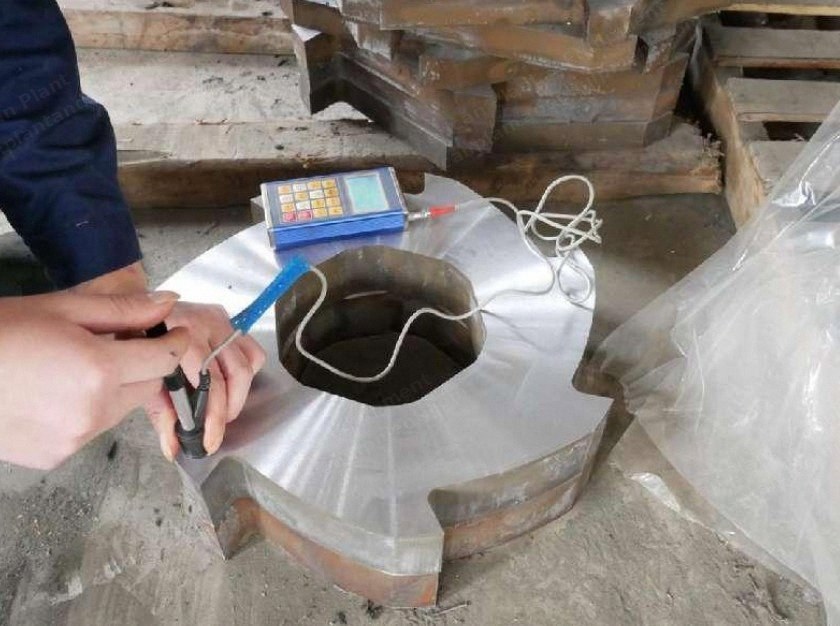

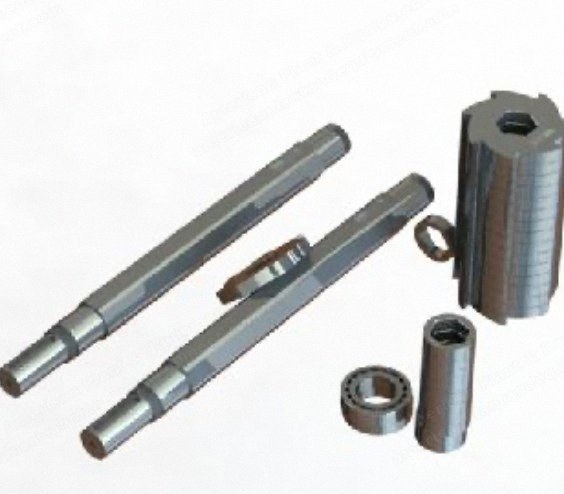

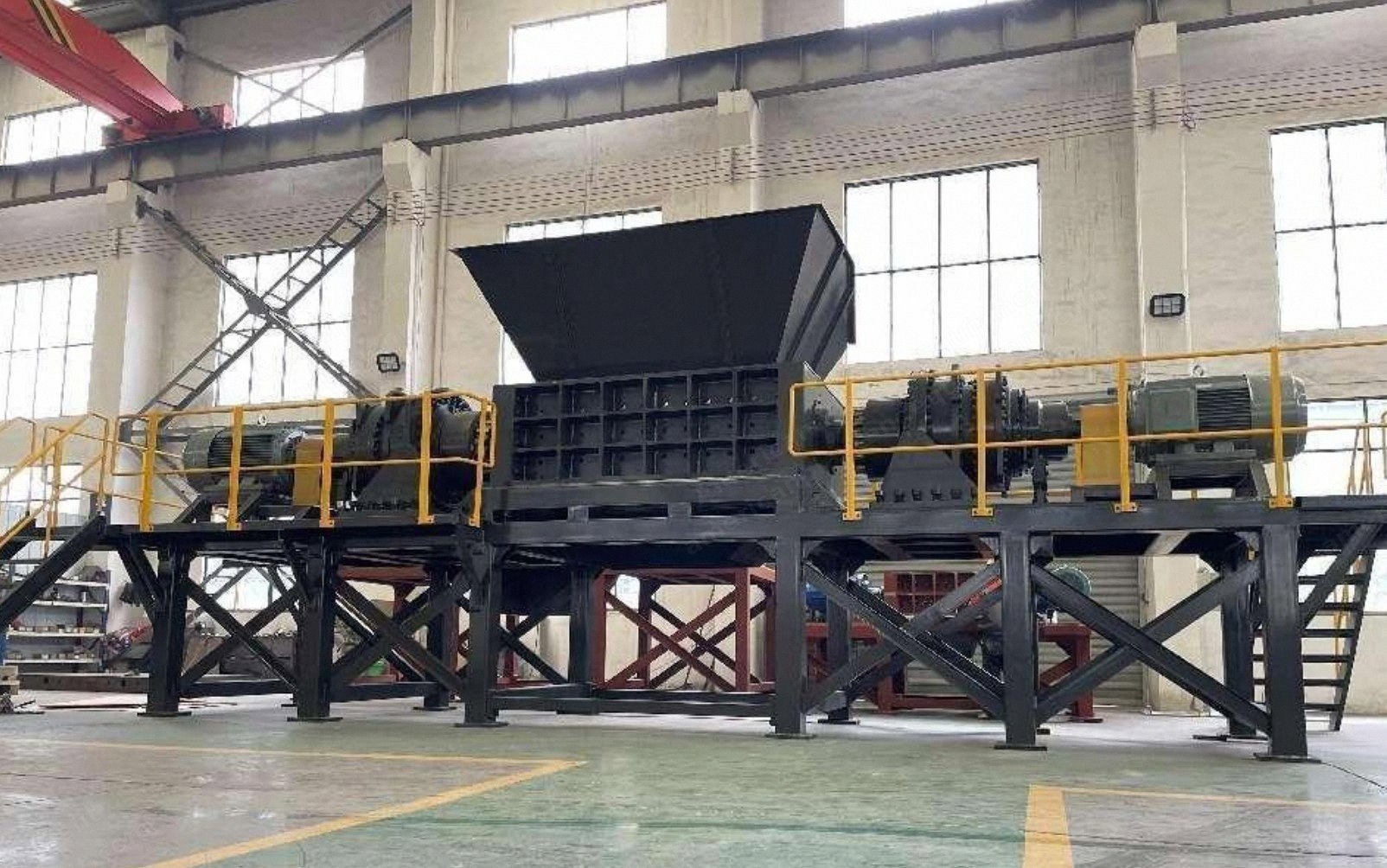

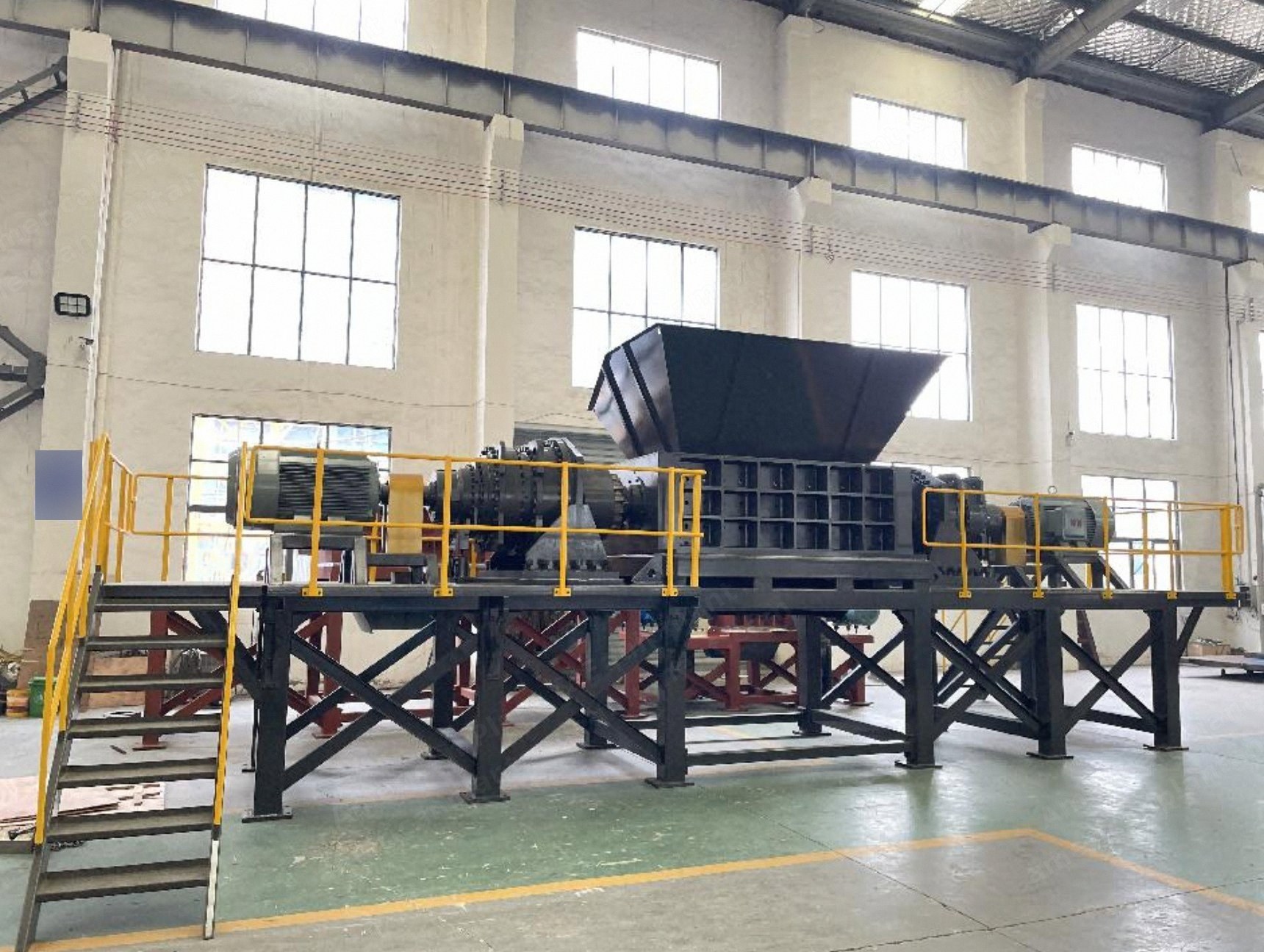

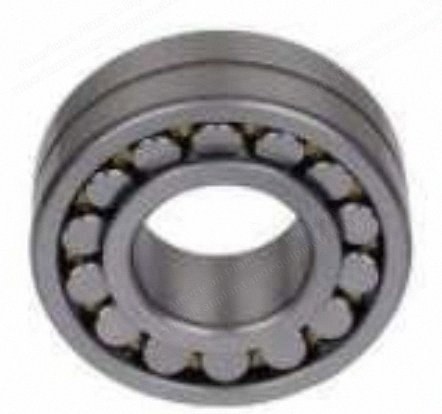

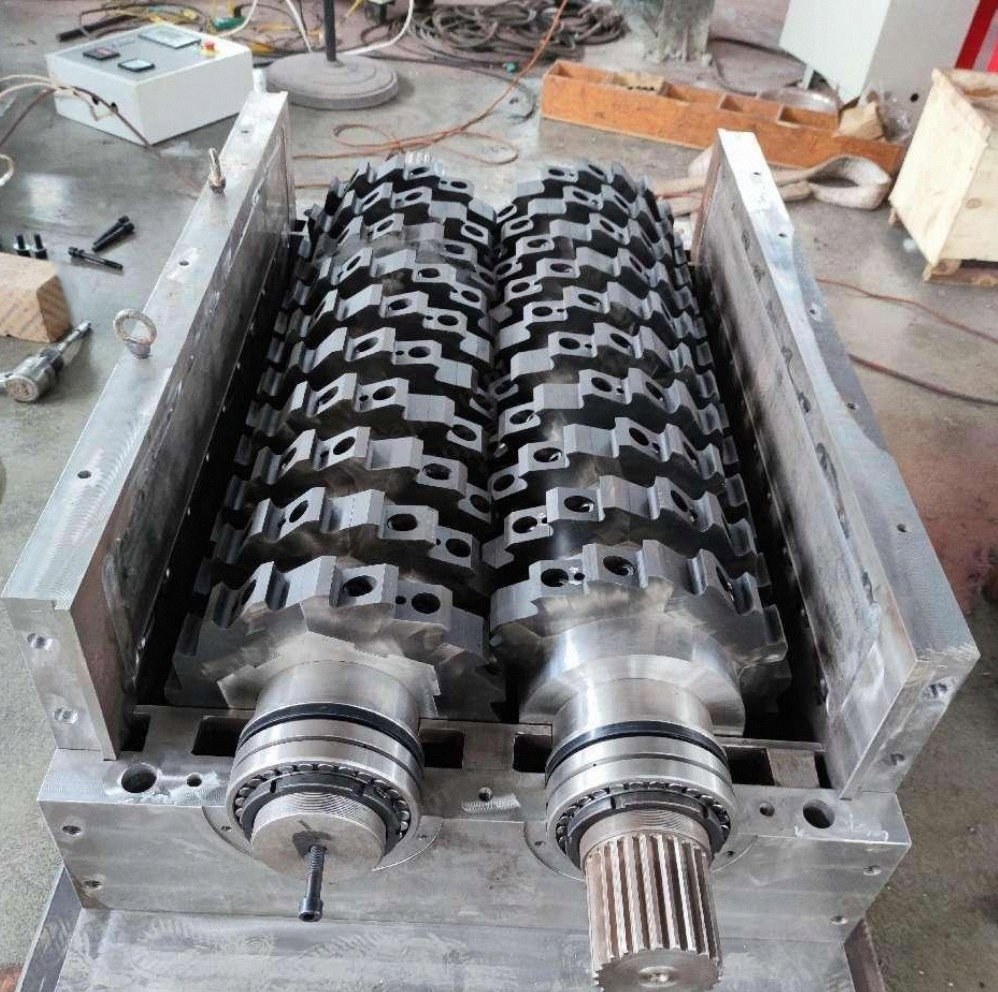

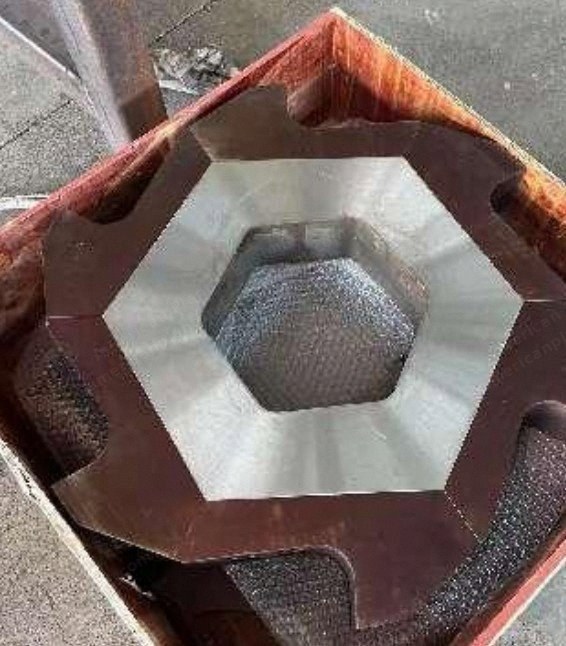

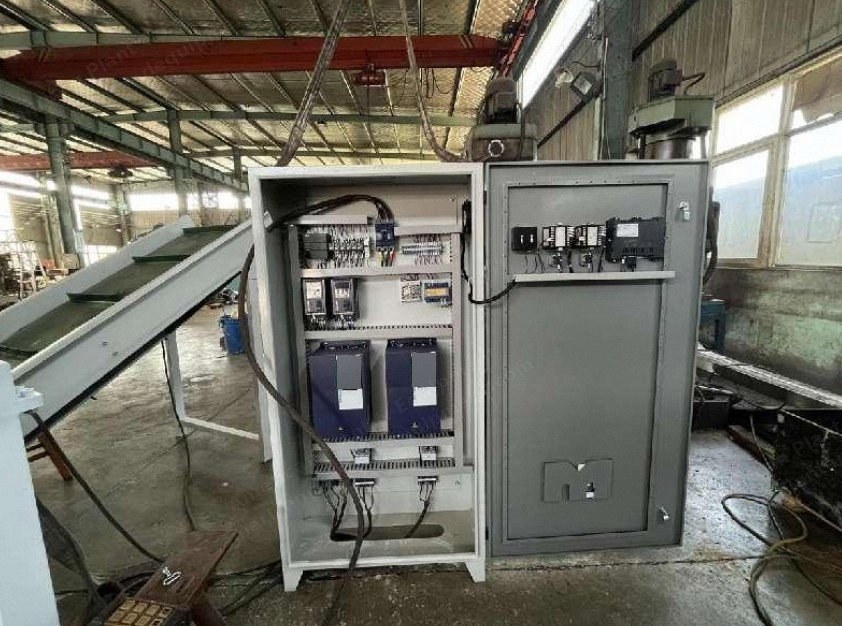

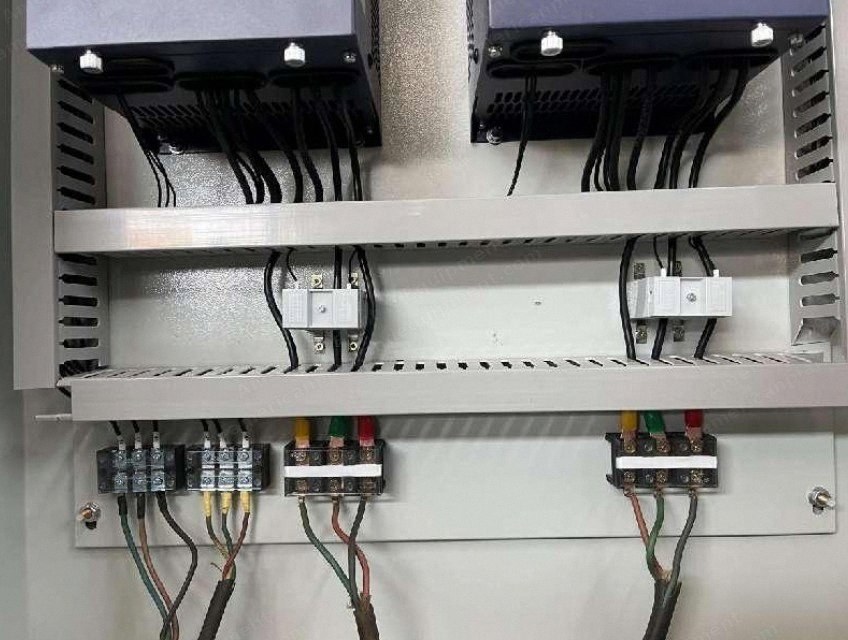

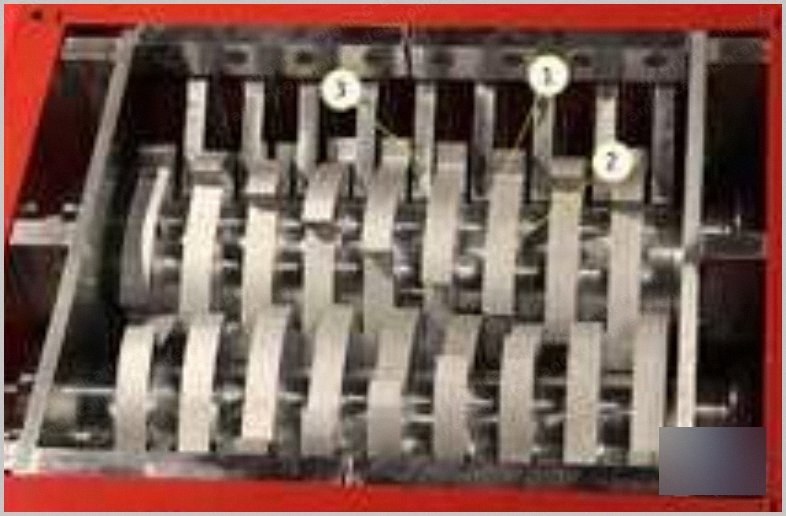

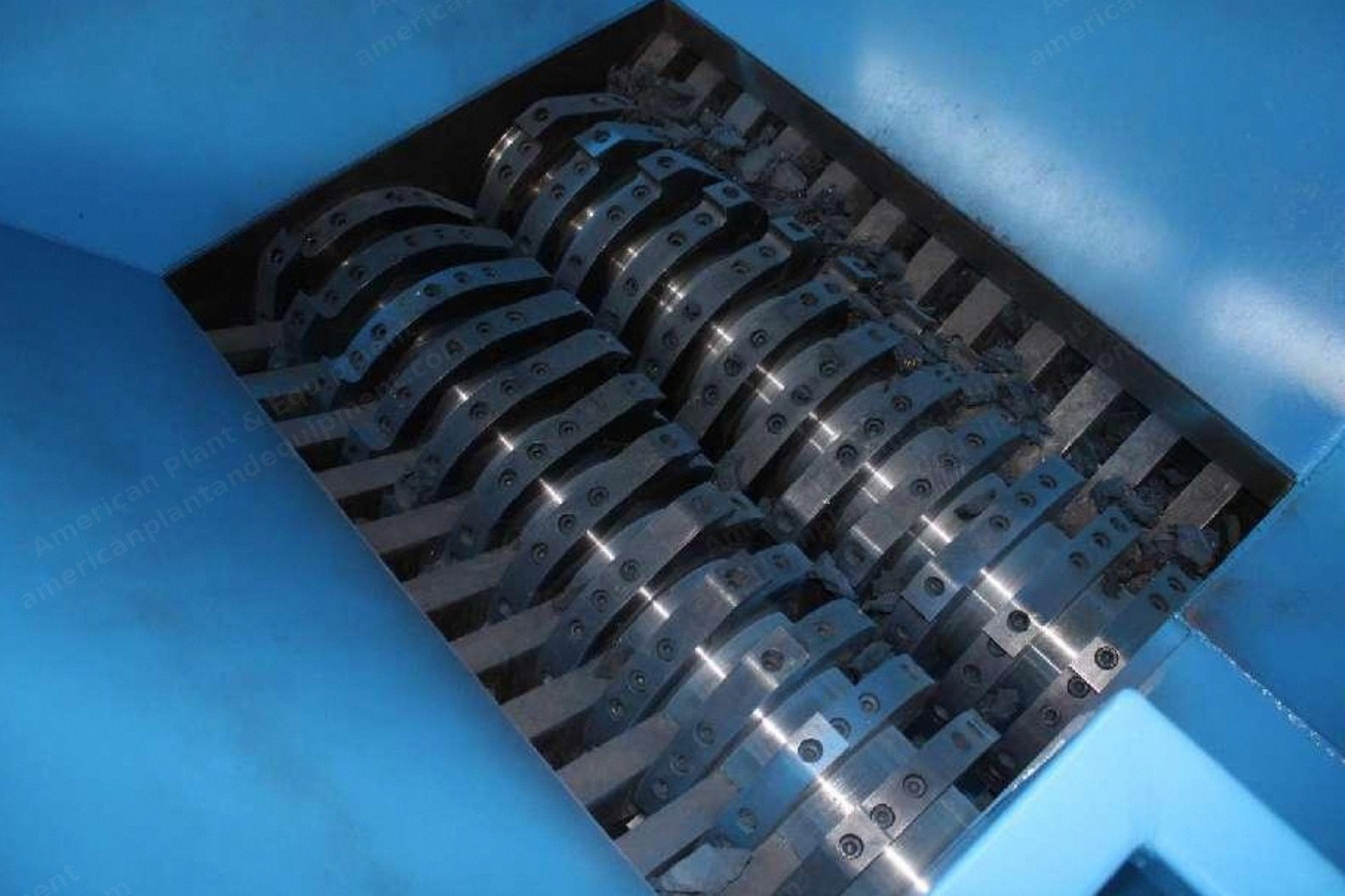

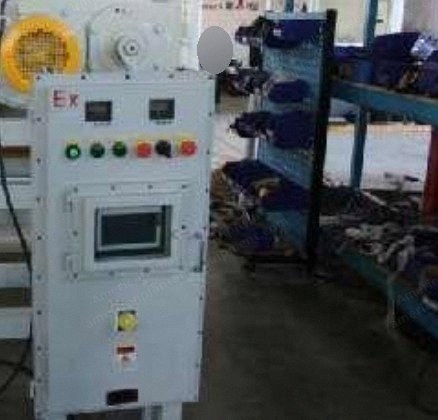

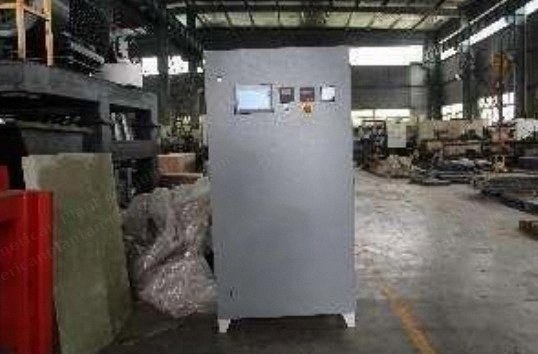

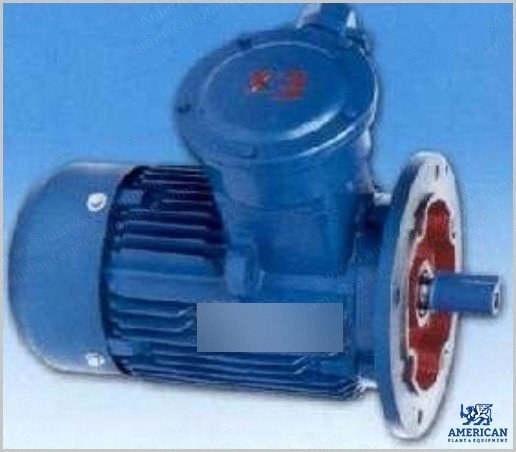

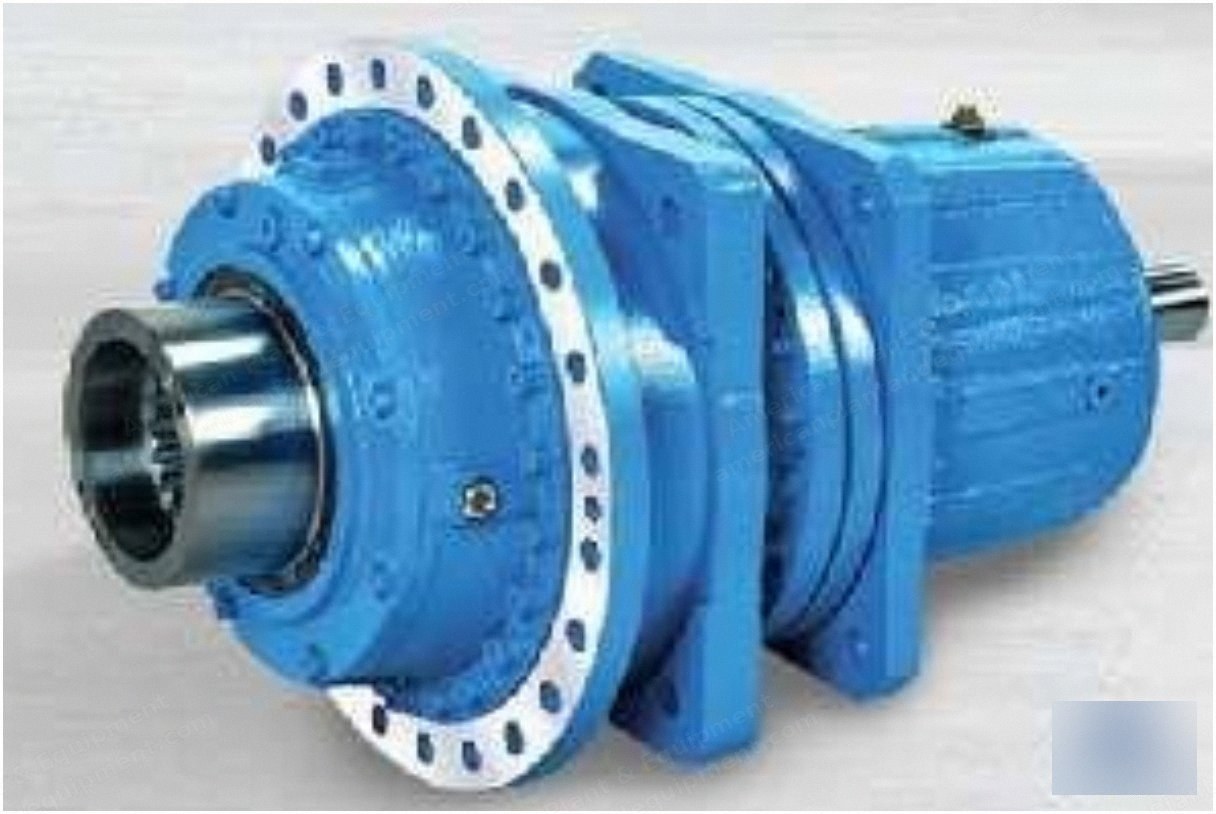

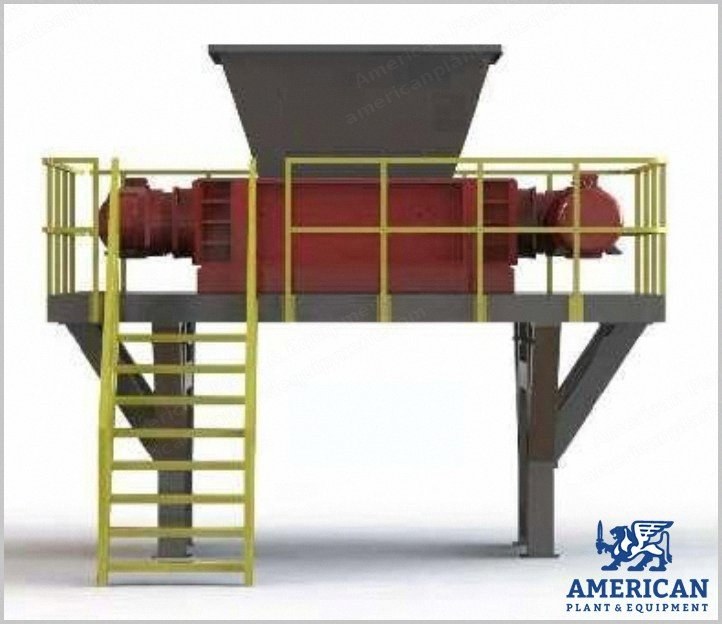

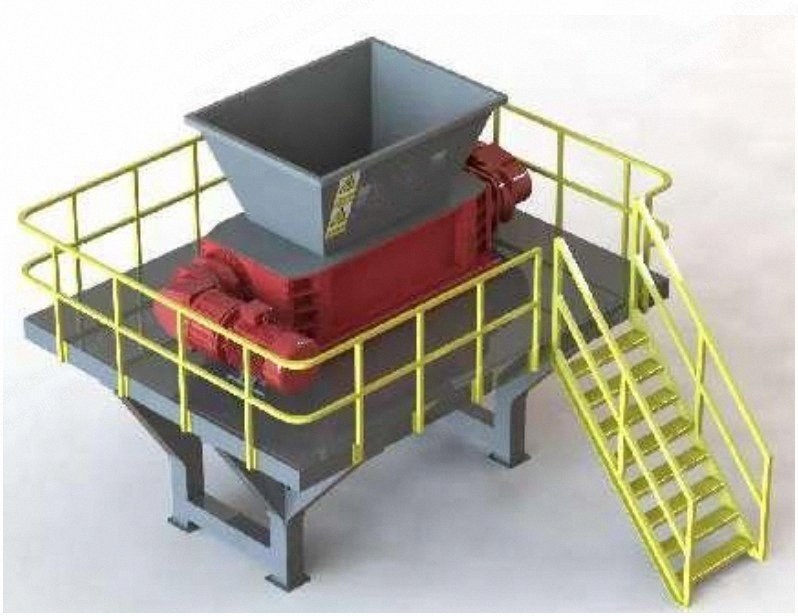

Description Overview Double shaft shredder ShreS buckets to 25 mm width strips Output product size: 100 mm Output capacity: 12,000 kg/hour Dimensions: 5500 x 2200 x 3000 mm (L x H x W) Weight: 30,000 kg Technical Specifications Number of knives: 20 pcs., size Φ750 x 120 mm (OD x T), 9Cr2Mo detachable type Number of spacers: 20 pcs., size Φ450 x 120 mm (OD x T), Q345 Number of shafts: 2 pcs., size Φ320 x 3600 mm (OD x T), 40Cr Shredder chamber inside dimension: 2000 x 1500 mm (L x W) Main shaft speed: 8 rpm Motor power: 55 kW x 2 sets Reducer: P20 planet model x 2 sets Voltage: 220 V / 380 V / 415 V / 440 V or refer to client requirement Main Components Main motor: Siemens / Wannan Gear reducer: Tongli Electric parts: Schneider Blade material: 9Cr2Mo with excellent toughness and abrasion resistance, HRC 55-58°C Shaft material: 40Cr with good comprehensive mechanical properties, low temperature impact toughness and low notch sensitivity, HB280-320 Controller: Siemens touch screen control panel PLC, easy to operate (in English) Bearing / coupling: Harbin Optional Components XP motor: dust-proof and explosion-proof motor XP controller: dust-proof and explosion-proof electric cabinet Input or output conveyor: customer must request as needed Design and Structure Heavy moving knife with high crushing efficiency Moving knife and fixed knife are cast alloy steel, strong with long service life Iron frame plate is thick with high torque resistance Easy to adjust and low maintenance Production is calculated theoretically; specific use determined according to actual density and shape of crushing material Chamber includes rotary blade, spacer, and shaft Users can customize shredder chambers of different sizes according to production requirements Control Panel Details Display screen is a 7-inch Siemens touch Smartline series with precise touch and real-time control Controls machine forward rotation, reverse rotation, and conveyor belt transmission (optional) Device automatically reverses when encountering jammed material, preventing motor overload damage Screen operation is easy to learn and user friendly Condition and Features Intelligent design saving energy consumption while reaching required production capacity Detachable type blade reduces labor cost on future blade changes; replace by loosening and tightening bolts Shaft manufactured by precision machining center to ensure precision Blade made of high-quality materials with strict processing and testing to ensure hardness and accuracy, extending blade life and sharpness High quality electric cabinet
