Suitable to mix and feed the opening fiber evenly into carding machine.
Working width: 2350 mm
Production capacity: 500 kg/h (6d polyester of first grade)
Control method: photoelectric
Installed power: 7.17 kW
Machine frame is Q235-A steel plate, and modularization assembled.
Spiked lattice is high quality PVC lattice, with thick canvas backing and angle steel supporting.
Horizontal feeding lattice is high quality anti-skipping leather lattices, one in front of the spiked lattice and one behind the spiked lattice.
Diameter of averaging and stripping rollers with pins: Φ380 mm, with three lines of pins on, the ends of the roller is anti-fiber-tangle.
Vibrating plate is made of 1.2 mm thickness stainless steel plate, polishing and no fiber-hanging.
Two photo electricity are relatively placed in the collector hopper and feeding hopper, and distance can be adjusted for 30 cm.
Worm wheel manually adjusts the width of vibrating feeding hopper and adjusting range is 100 mm.
High level fiber storage hopper is added at the fiber feeding entrance, and the fiber is delivered by roller clamping.

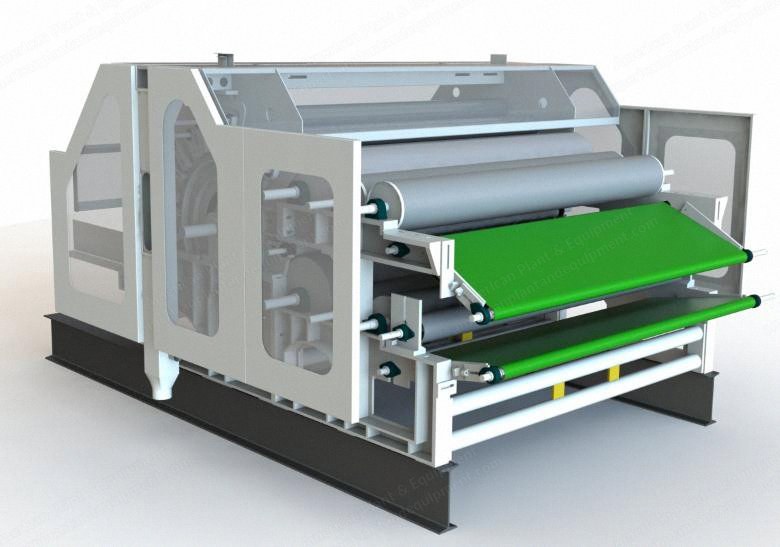

Item 002: Single Cylinder Double Ditem Carding Machine
Model: L-I 250
Application: to card fiber from feeder and process carded web into down-stream crosslapper.
Working width: 2500 mm
Output capacity: ≤500 kg/h (take first class not less than 6d fiber as standard)
Fiber range: 3d~15d × 51~67 mm PET, and shoddy fiber, etc.
Ditem outlet speed: ≤45 m/min
Installed power: 29.5 kW
Machine frame is made of high quality castings (HT200), high temperature removed stress and high-precision processed, assembled with brace.
Horizontal feeding lattice is PVC lattice, with pressing roller for evenly feeding.
Four rollers for feeding with diameter Φ65 mm, anti-metal protection device is used at the material input of machine, which could test the metal and has auto-stop warning.
Diameter of main cylinder: 1230 mm, diameter of double ditem: 492 mm
There are 5 sets of working roller and stripping roller on main-cylinder to card fiber completely and form web evenly.
Edge-suction system is equipped in 4 places and the dust particles will be transferred to special dust cage.
Walking platforms are placed on two sides of machine for maintenance. Machine safe guard cover is transparent organic glass.
Item 003: Cross Lapper
Model: PW-I 330
Used to fold evenly and lapped the fiber webs into certain width and thickness, which is for next working procedure.
Input apron width: ≤2700 mm
Output apron width: ≤3300 mm
Cross lapping speed: ≤45 m/min
Output speed: 1~10 m/min
Feeding amount: 40-3000 g/m²
Control accuracy: CV ≤5%
Installed power: 8.9 kW
Machine frame is 8 mm thickness Q235-A armor plate assembled with brace.
Anti-static PVC lattices are for transferring, cross lapping and compensating. Bottom lattice is wooden lattice.
Each lattice driving roller is seamless steel, and strengthen at the ends of axletree.
Cross lapping and reciprocating is subsection controlled accurately by PLC.
Reciprocating adopt synchronous belt for drive.
The height of bottom lattice is controlled electrically by motor, and adjustable height is 1500 mm.
Pressing lattice is equipped at output.
Item 004: Conveyor Lattice
Model: GD-330
Item 005: Double Belt Thermal-Bonded Oven (6 m Long)
Model: H-330
Item 006: Cooling Machine
Model: LQ-330
Item 007: Electrical Controlling System
Item 008: Partial Packing with Wooden Case
