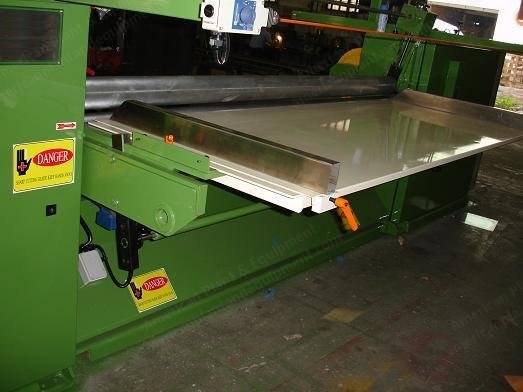

Sunkist, SA-8A, Profile Cutting Machine, 2000mm Working Width, 10.2kW

Sunkist, SA-8A, Profile Cutting Machine, 2000mm Working Width, 10.2kW

Description

  1. Overview
    1. Inventory number: E-3829
    2. Sa-8a profile cutting machine (skiver)
  2. Specifications
    1. Working width: 2000 mm (78.7)
    2. Pressure (feeding) roller: 110 mm diameter (4.33)
    3. Top pressure (feeding) roller adjustment ascend: 160 mm (6.3)
    4. Bottom pressure (feeding) roller adjustment descend: 160 mm (6.3)
    5. Feeding table adjustable range: 3 mm to 160 mm (0.118 in to 6.3)
    6. Maximum foam thickness that can be fed: 320 mm (12.6)
    7. Minimum foam thickness that can be fed: 3 mm (0.118)
    8. Cutting speed: 0 to 15 m/min (16.5 yards/min)
    9. Blade knife width: 90 mm (3.5)
    10. Blade guide width: 224 mm (8.8)
    11. Two motorized grinding unit: 250 mm diameter (9.8)
    12. Knife wheel: 800 mm diameter (31.5)
    13. Power required: approximately 10.2 kW
    14. Power supply: 3 hp, 220 V, 60 cycles
    15. Floor space: 6200 mm (244) length x 2400 mm (94.5) width x 2100 mm (82.6) height
    16. Tolerance: plus or minus 0.15 mm
