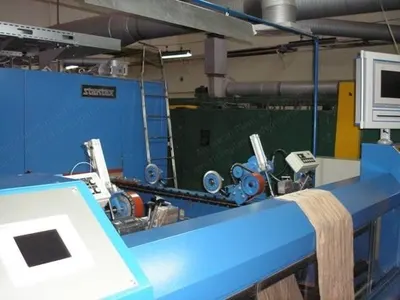

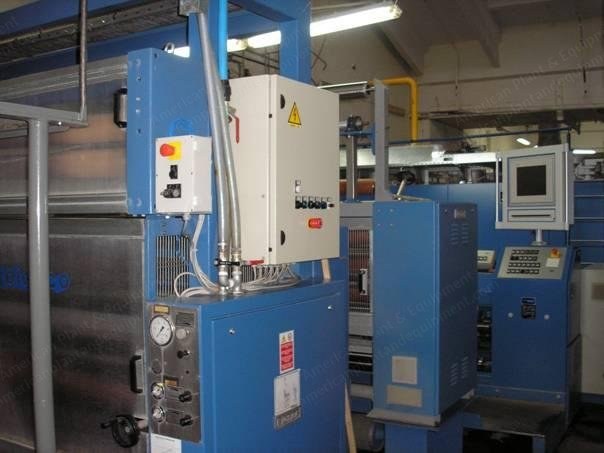

Description Overview Inventory number: E-9499 Stentex tenter frame Working width (fabric width): 500 – 2000 mm Speed range: 6 – 100 m/min Entry zone: 3000 mm long Lock zones at entry and exit of the drying and heat setting zone: 620 mm Length of the drying zones: 10,000 mm, with 5 chambers (2,000 mm each) Air cooling device at the exit: 1 unit, 1,200 mm long Vertical pin chain with pin-off protection Heating System Heating system: semi direct natural gas Installed heat capacity: 870,000 kcal/h Heat consumption: 696,200 kcal/h Gas consumption: 87 Nm³/h by full load Necessary gas pressure: 50 mbar at each burner Necessary air pressure: 6 bar / 2 m³/h Necessary steam pressure: 2 bar for fire extinguisher Performance Specifications Water evaporation at sea level: 957 kg/h +/- 10% Air temperature leaving the nozzles: 150°C Fabric weight: 100 g/m² Final moisture content: 8% Components Included Entry Framework Fabric spreading and centring device Bianco, type CE compact Two-bowl finishing and squeezing padder, Bianco type G03 Automatic weft straightener Bianco, type FDC 3+3 Operators platform Stenter entry type 2 Infeed 3,000 mm long Automatic cloth feeding device E+L KR 51 with detectors FR 55 Selvedge openers E+L LA 83 Overfeed device Selvedge pinning guards After-pin bristle wheels Pin cleaning devices Fabric transport chain system Pin carriers and pin plates Unpinning protection lever Permanent minimum lubrication High-efficiency single layer/drying and heatsetting thermozone Cooling section 1200 mm Machine exit Plaiter unit Meter counter Stentomatic for stenter operating Control cabinet with cooling fans (PLC Siemens) Drives Cable and cable ducts
