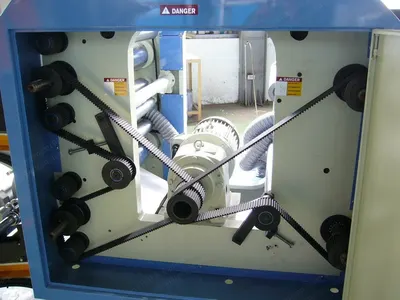

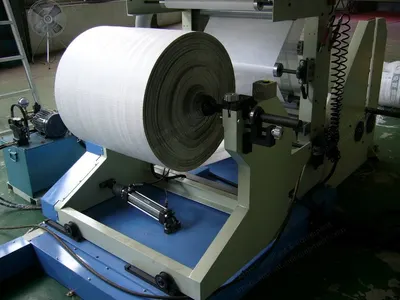

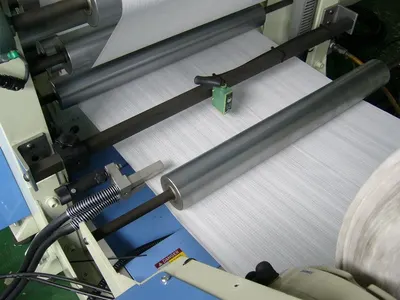

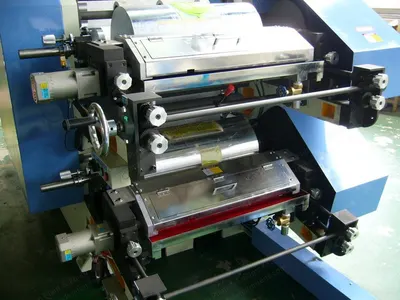

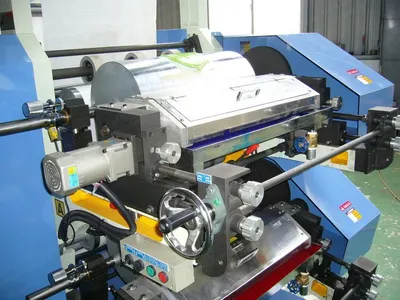

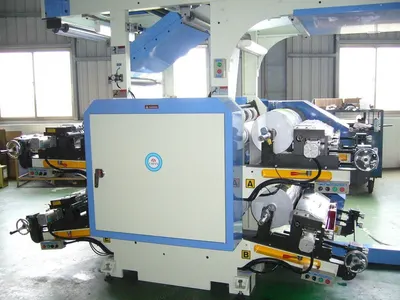

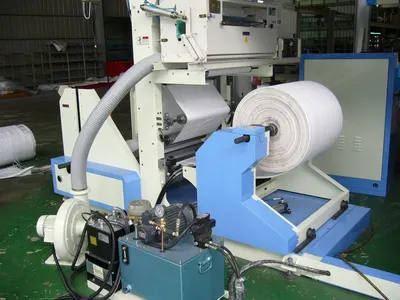

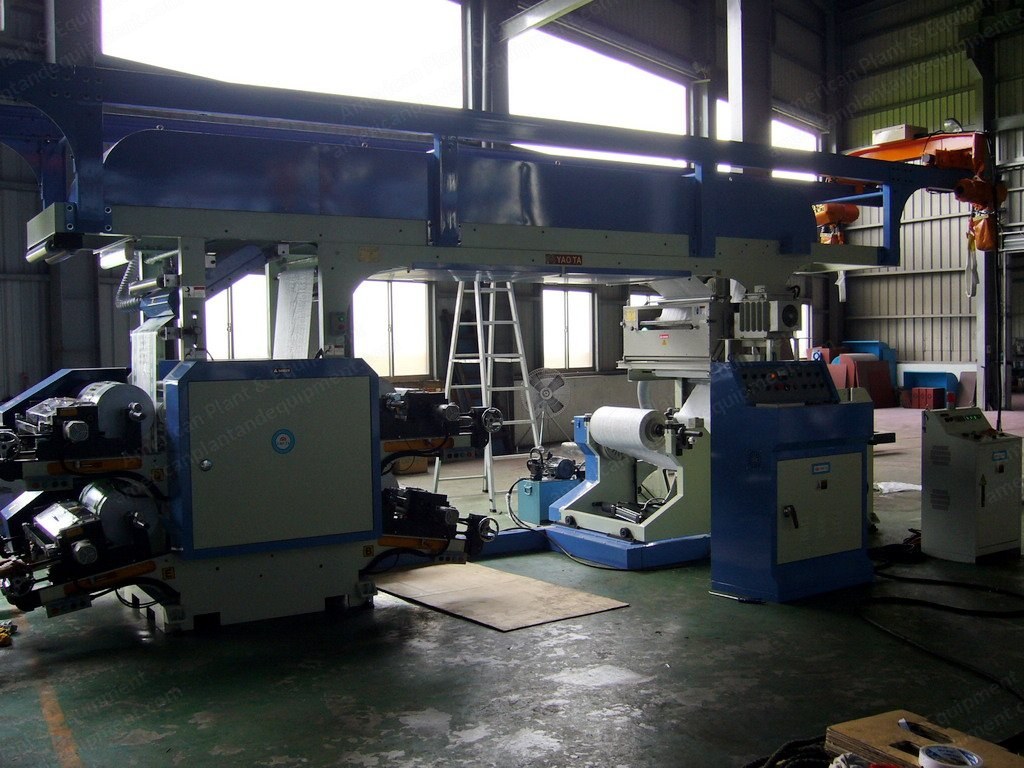

Description Overview For pp woven cloth roll-to-roll printing Printing color: 4+0 / 3+1 / 2+2 Printing speed: 4+0 at 80 m/min, 3+1 / 2+2 at 60 m/min Printing width: 800 mm Repeat length: 13” – 45” Printing registration: by push-button device to adjust the registration at 360° with forward and backward adjustment Printing System Guiding roller: diameter 75 mm x 850 mm Oil-ink roller: diameter 103 mm x 890 mm, by using oil-proof rubber roller Anilox roller: 250 lpi, by hard chrome plated treatment Printing roller: hydraulic type up-down device Ink tray: by #304 stainless steel tray With 4 pcs of printing rollers (20” of printing length or by customer’s indication) Driving System Master unit: dc 5 hp motor Main driving system: driven by 8m timing belt Rewinding and Unwinding System By single-axle center unwinding system, automatic edge position control (epc) and tension magnetic powder brake; maximum unwinding diameter is 1100 mm By double-axle friction type rewinding system; maximum rewinding diameter 1100 mm By automatic tension controller 3” of air shaft x 2 pcs By using hoist (0.5 t) x 1 set (2 pcs) to load and unload the printing rollers and material film on machine Drying System Blower: ac 1/2 hp x 7 Heating capacity: 18 kw radiator electric hot tube Other Attached Equipment Ink pump 4 pcs / 1 set Corona treater (yt-3000s, 800 mm) (capacity: 3 kw) 1 set Tool box 1 set
