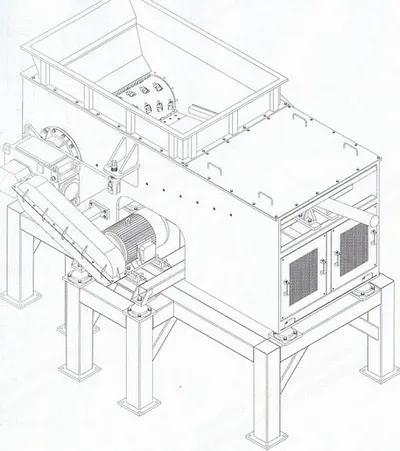

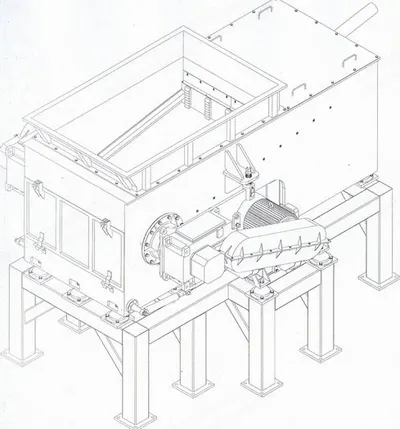

NovaStar, SG126, Single Shaft Shredder, 1150mm Roll Width, 2x 22kW Siemens Motors, 1800x1130mm Inlet (New)

NovaStar, SG126, Single Shaft Shredder, 1150mm Roll Width, 2x 22kW Siemens Motors, 1800x1130mm Inlet

Description

  1. Overview
    1. Crushed material: paper
    2. Width of shredder roll: 1150 mm (45)
    3. Blade type: V type
    4. Fixed blades form: 2 pieces front and behind
    5. Blade material: IKS (Cr12Mo1V1)
    6. Bearing: Wafangdian bearing
    7. Body of shredder is manganese steel: 16Mn
    8. Shaft material: 40Cr
    9. Shaft diameter: 400 mm
  2. Specifications
    1. Inlet: 1800 × 1130 mm
    2. Motor power: 22 kW × 2
    3. Motor brand: Siemens motor
    4. Down material type: spiral output
    5. Screen open and close: hydraulic system
    6. Pusher control: hydraulic system
    7. Hydraulic motor: 4 kW
    8. Shaft speed: 75 r/min
    9. Screen size: 40 mm × 40 mm
    10. Different screen sizes available at additional cost
    11. Shredder chamber size: 1130 mm × 1160 mm
