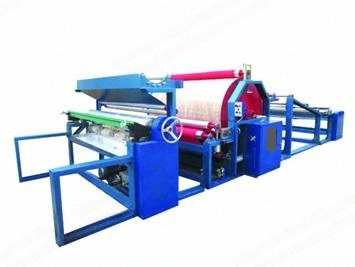

NovaStar, CG137, 1700mm Working Width, 35kW, Laminating Machine
Scroll to zoom
100%
Description
Usage
Used for the glue lamination of foam, fabrics, PVC, EVA as well as the materials for making shoes, cups, gloves, handbags, leather garments, sofa, seat cushions of the car and etc.
Features
The design of the complete machine emphasizes on the stable performance and secure supervision.
According to the request of the cloth and the glue, a variety of specification chromium rollers are made by measurement, which improved the lamination quality effectively and decreased the glue consumption.
It adopts the steel belt of high temperature resistance on hard chromium roller and the process of pressing cloth proceeds evenly.
Replacing the spring pressing roller with the cylinder, which raises the whole speed.
This machine is an achievement of improving the traditional spring pressing roller, on the basic of absorbing the merits of TH-120A vertical glue trough laminating machine and congeneric advanced machines.
Technical Parameters
Power supply/power: 480 V / 35 kW
Motion: 3 HP + 2 HP
Size of the heating roller: Φ1200 mm x 1830 mm
Working width: 1700 mm
Working speed: 0-45 yards/min
Dimension of the machine: 7200 mm x 2600 mm x 2400 mm
Machine weight: 3000 kg
