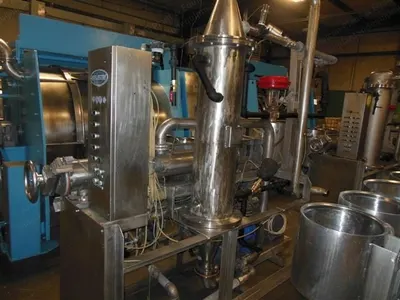

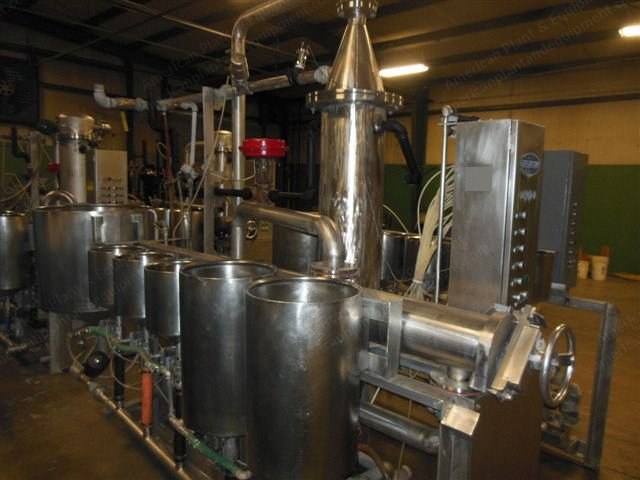

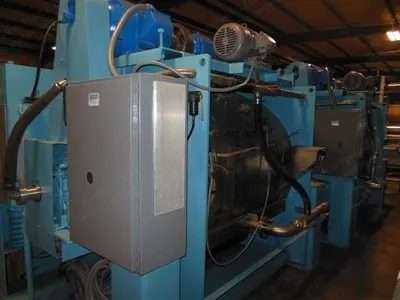

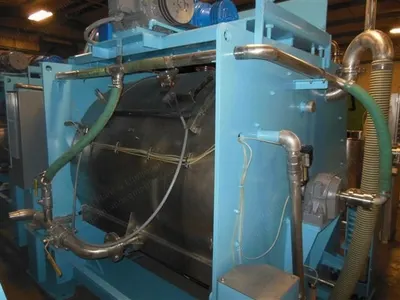

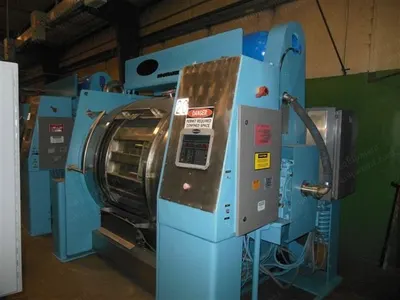

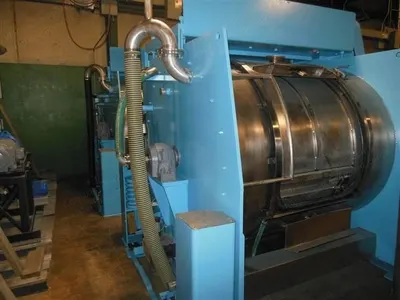

G.A. Braun, 600NTDPV-2-DC, 1994, 600 lb Capacity, 2 Pockets, 60x66 inch Cylinder

G.A. Braun, 600NTDPV-2-DC, 1994, 600 lb Capacity, 2 Pockets, 60x66 inch Cylinder

Description

  1. Overview
    1. Two pockets
    2. Year 1994
    3. 600 volts, 3 phase, 60 Hz
    4. With steam injection
    5. With heat exchanger
    6. Can be used for dyeing, washing, and extracting
  2. Specifications
    1. 600 lb maximum capacity
    2. Cylinder diameter x depth: 60 in x 66 in
    3. Cylinder volume: 107.9 cubic feet
    4. Cylinder door area opening for loading: 600 square inches
    5. Height of loading door above floor: 37 in
    6. Extract motor hp: 25
    7. Extract speed rpm: 554
    8. Wash motor hp: 10
    9. Automatic drain valve: 8 in
    10. Automatic inlet valve: 2 in
    11. Steam connection: 1 1/2 in
    12. Weight: 8528
    13. Serial number: NTFPV60094873DC
  3. Dimensions and Weight
    1. Overall dimensions: 176 in width x 102 in depth x 112 in height
    2. Approximate shipping weight, skidded: 18,800 lbs
