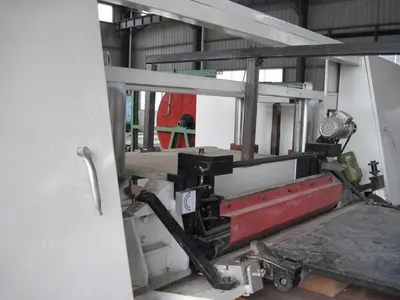

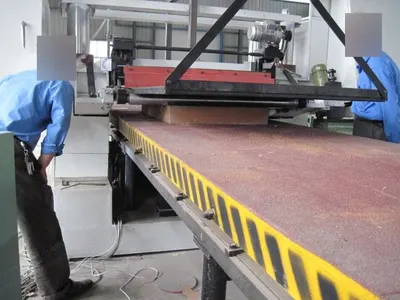

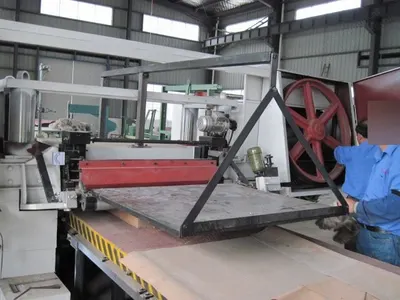

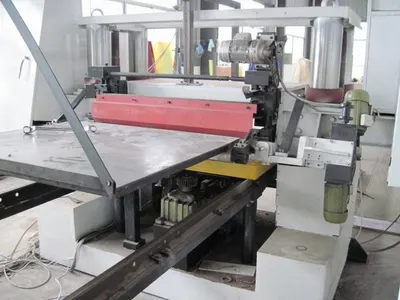

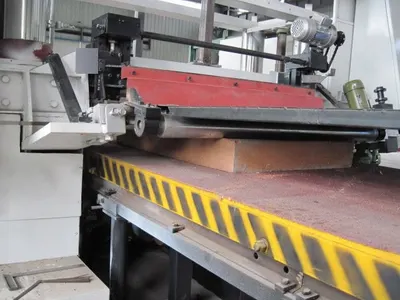

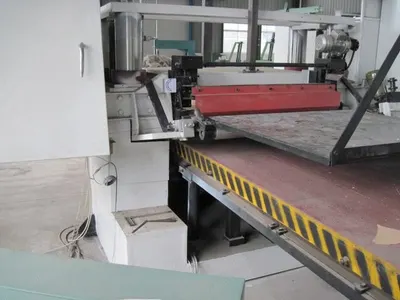

NovaStar, FN231, High Density Bun Cutter, 2500x1400mm Table, 25 kW (New)

NovaStar, FN231, High Density Bun Cutter, 2500x1400mm Table, 25 kW

Description

  1. Overview
    1. Machine is extra heavy duty
    2. Especially fit to handle pieces as per your sample
    3. Machine will be fully assembled and tested in our shops; you may send your material
    4. All guards and signs for osha
  2. Cutting Specifications
    1. Bun that can be cut: L=2500mm x W=1400mm x H=50mm (to cut the 38mm piece [41mm with plastic top and bottom] in half (20.5mm each) x 96 inches long)
    2. Height of tool holder (max): 50mm (max piece to be fed to the machine)

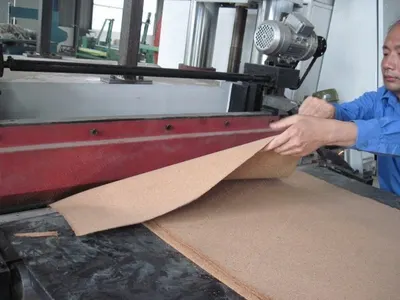

    3. Thickness of output: from 1mm to 10mm or cut in half at 19mm
    4. Speed of cutting: from 0 to 25 m/minute
    5. Tolerance of cut: 1 to 2 mm or better
    6. Note: since the serrations are 1.2mm wide, the blade will cut away in the middle 1.2 mm out and leave 19.9mm piece (including the plastic); if not, we can go to a thinner blade, but cut will take a little longer
  3. Power and Electrical
    1. Power: 25 kw approx.
    2. Voltage: 220/440/60/3ph
    3. Table motor, blade motor, roll motor (all inverter controlled)
    4. Suction motor and grinder motors are a.c.
  4. Dimensions and Floor Space

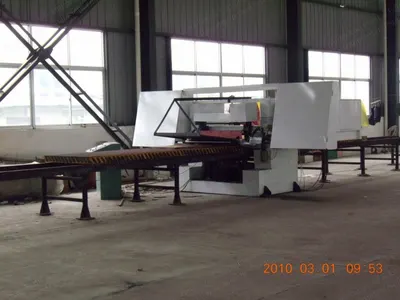

    1. Floor space: 4000mm x 2000mm x 2000mm approx.
    2. Worktable: 2500mm, variable frequency motor, inverter motor
  5. Control and Operation
    1. Control: human-computer interface, touch screen controlled
    2. Loading of piece to be cut: by hand
  6. Fixture and Feeding
    1. Fixture for piece to be fed: on rubber hard grip surface with rubberized top roller to secure the positioning of the piece to be cut, bearing in mind that the top and bottom surface of the piece to be cut is plastic
  7. Blade Specifications

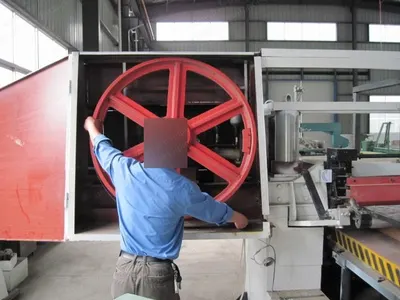

    1. Blade width, thickness and type: 85mm wide x 1.0 mm thick, serrated double offset 1.2mm thickness at the serrations
    2. Two blade grinders
  8. Additional Equipment
    1. Suction bag unit to suck away and bag debris
  9. Shipping
    1. To be shipped by truck from our shop to your place
