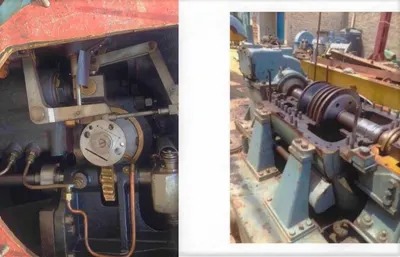

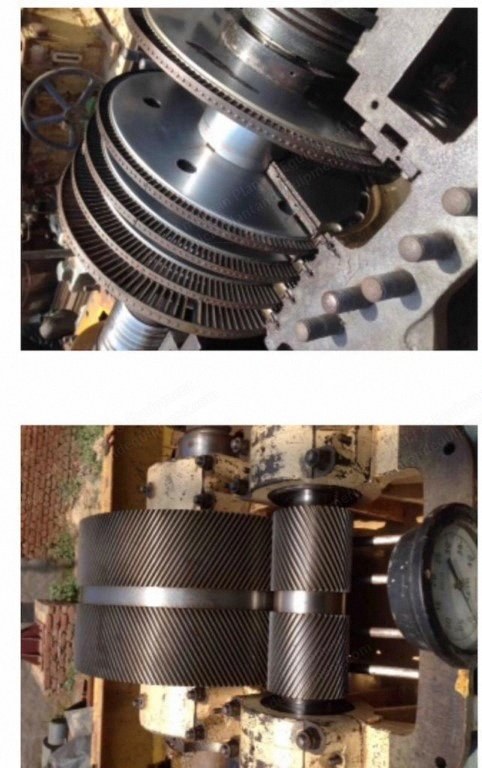

Belliss & Morcom, BD-1, 1 MW Steam Turbine, with Alternator, 415 Volts, 50 Hz

Belliss & Morcom, BD-1, 1 MW Steam Turbine, with Alternator, 415 Volts, 50 Hz

Description

  1. Overview
    1. Turbine make: Beliss & Morcom, England
    2. Turbine type: BD-1

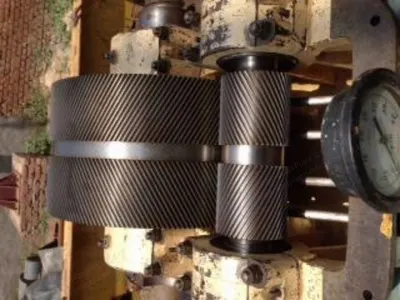

    3. Gearbox type: TG-16/14
    4. Alternator make: Kirloskar Electric Co.
  2. Specifications
    1. Turbine capacity: 1000 kW
    2. Inlet steam pressure: 21 kg/cm²
    3. Inlet steam temperature: 300 to 340 °C
    4. Exhaust pressure: 1.5 kg/cm²
    5. Turbine speed: 6500 rpm
    6. Gearbox capacity: 1000 kW
    7. Gearbox input speed: 6500 rpm
    8. Gearbox output speed: 1500 rpm
    9. Gearbox ratio: 4.33:1
    10. Alternator capacity: 1000 kW
    11. Alternator kVA: 1250
    12. Alternator speed: 1500 rpm
    13. Alternator poles: 4
    14. Alternator phase: 3-phase
    15. Alternator voltage: 415 volts
    16. Alternator insulation class: F
    17. Alternator frequency: 50 Hz (see note on 60 Hz capability)
    18. Alternator power factor: 0.8
  3. Condition
    1. In storage now
  4. Notes
    1. Can be offered at 450 volts, 60 Hz with gearbox modification or frequency adjusted through the governor
