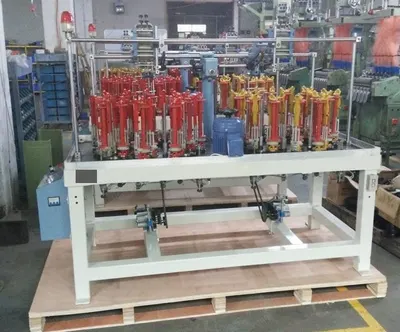

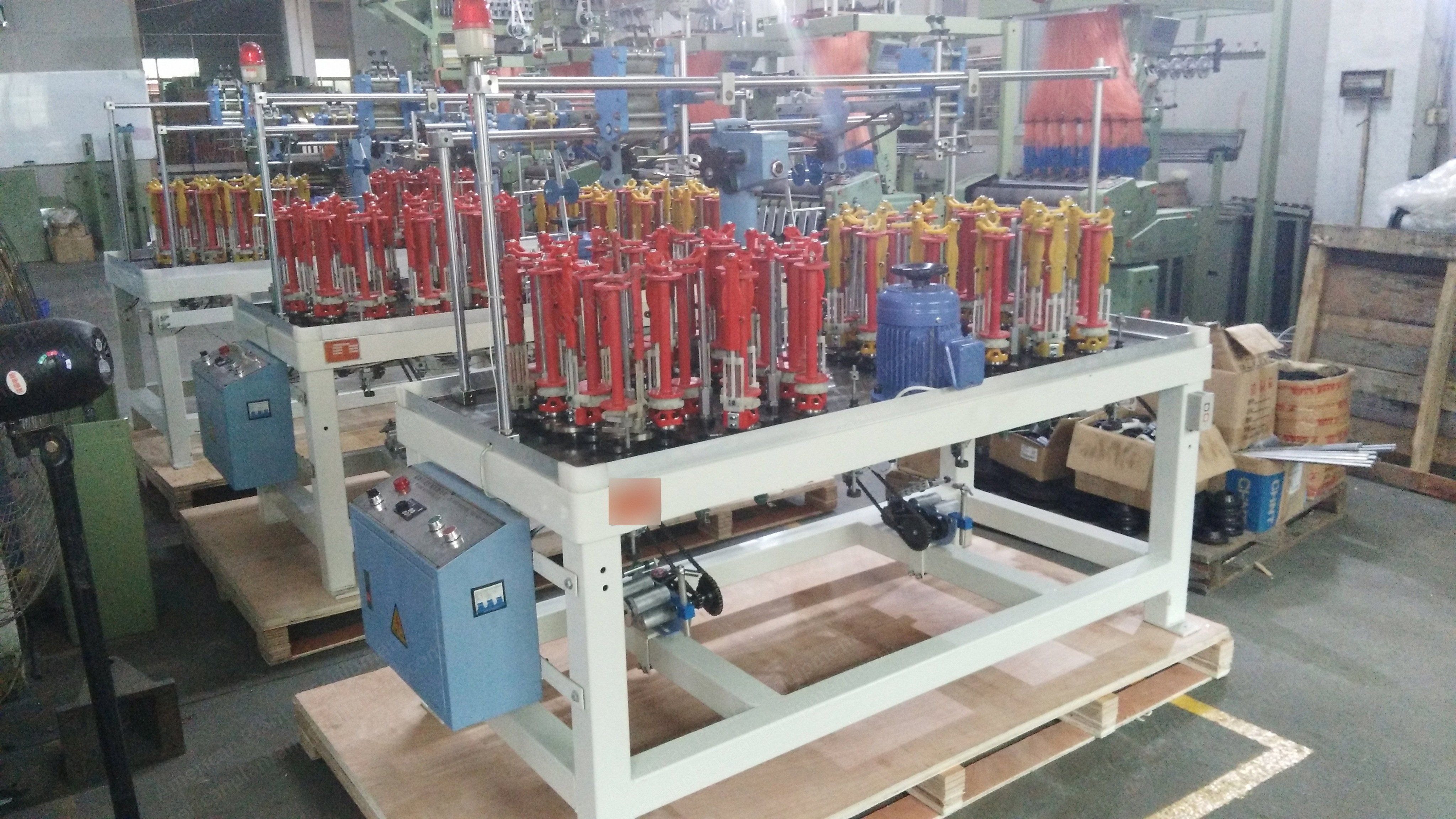

NovaStar, BE118, 24 Carriers, 2 Heads, 2.5 to 35mm Rope Capacity (New)

NovaStar, BE118, 24 Carriers, 2 Heads, 2.5 to 35mm Rope Capacity

Description

  1. Overview
    1. For shoelaces, high-tensile strength belting, finishing net thread, fishing line, climbing rope, and elastic goods
    2. Braided rope diameter: 2.5 to 35 mm
    3. Heads: 2
    4. Carriers: 24
    5. Carrier: A, B
  2. Specifications
    1. Production capacity: 1.2 to 1.5 meters per minute per head
    2. Production capacity total: 2.4 to 3 meters per minute
    3. Maximum rotor speed: 360 rpm
    4. Maximum inverter speed: 60 rpm
    5. Maximum motor speed: 450 rpm
    6. Motor: 1 hp
  3. Bobbin dimensions
    1. Standard bobbin: Ø48 x 140 mm
    2. Large bobbin: Ø70 x 210 mm
  4. Construction and materials
    1. Perfectly aligned horn gears for less friction while working
    2. Nylon pads constructed of nylon 66 for abrasion-resistance
    3. With sturdy base plate, treated to prevent deformities
    4. Base plate material: SG cast iron QT600 (strong, anti-corrosive, anti-oxidative)
    5. Heat treated board increases life expectancy
