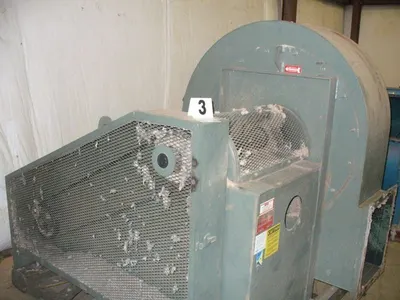

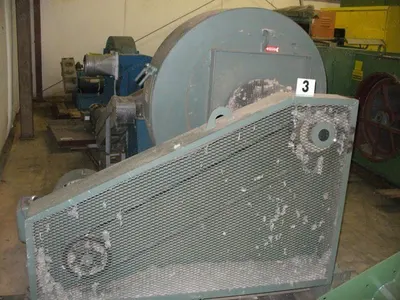

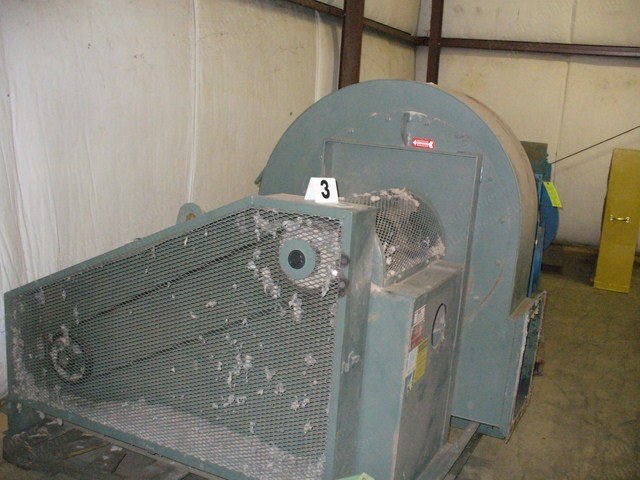

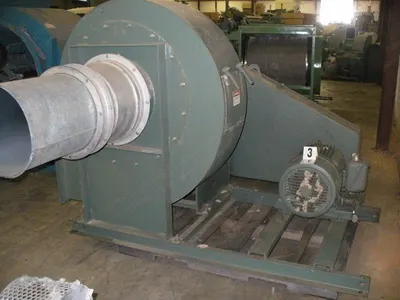

New York Blower, Series 20GI Fan, 25 HP, 294 LS, 575V

New York Blower, Series 20GI Fan, 25 HP, 294 LS, 575V

Description

  1. Overview
    1. Main suction fan for continental condenser
    2. Series 20GI fan
    3. Shop number: K 11631 100
    4. Size: 294 LS
  2. Motor Specifications
    1. Motor brand: Siemens
    2. Horsepower: 25 hp
    3. Rpm: 1755
    4. Amperage: 24 A
    5. Voltage: 575 V
    6. Frequency: 60 Hz
  3. Fan Dimensions
    1. Length: 53 in (1350 mm)
    2. Width: 75 in (1900 mm)
    3. Height: 61 in (1550 mm)
    4. Entry suction hole diameter: 500 mm (19.5)
    5. Exit hole measurement: 430 mm long x 350 mm wide
