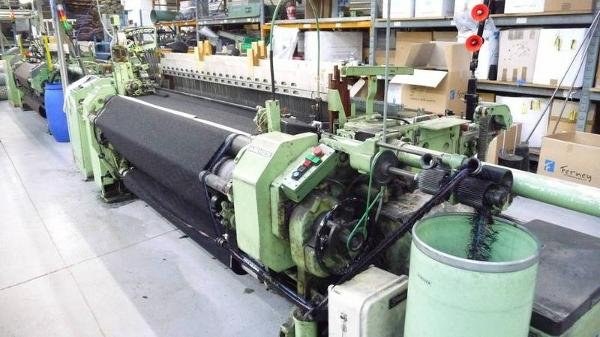

Description Overview Three looms with a working width of 2100 mm One loom with a working width of 2200 mm Loom speed: 350 to 400 ppm Type of weft insertion: rapier Number of weft colours: 8 Accumulators: 4 min Make and type of accumulators: Iro Laser Control panel: Edu Cone stand supplied with loom: yes Dobby And Shedding Dobby make and model: Staubli 2667 Maximum possible shafts: 19 Installed levers and shafts: 19 Number of frames supplied: 10 (approx) Take-Up And Let-Off Tucking units: yes Loom take-up: mechanical Loom let-off: mechanical / electrical Warp And Cloth Number of dropper bars: 3 / 4 Beam: single warp beam Number of warp beams: 1 (min) Flange diameter of warp beam: 600 mm and 800 mm Number of cloth rollers: 1 (min) Heald wires per frame: as on loom (est 3000+) Approximate number of droppers supplied: as on loom (est 3000+) Included Accessories Some spare parts
