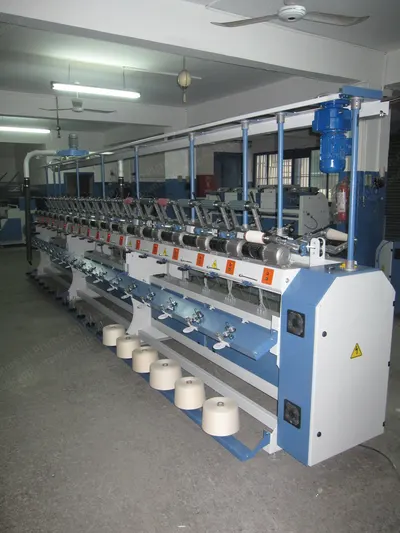

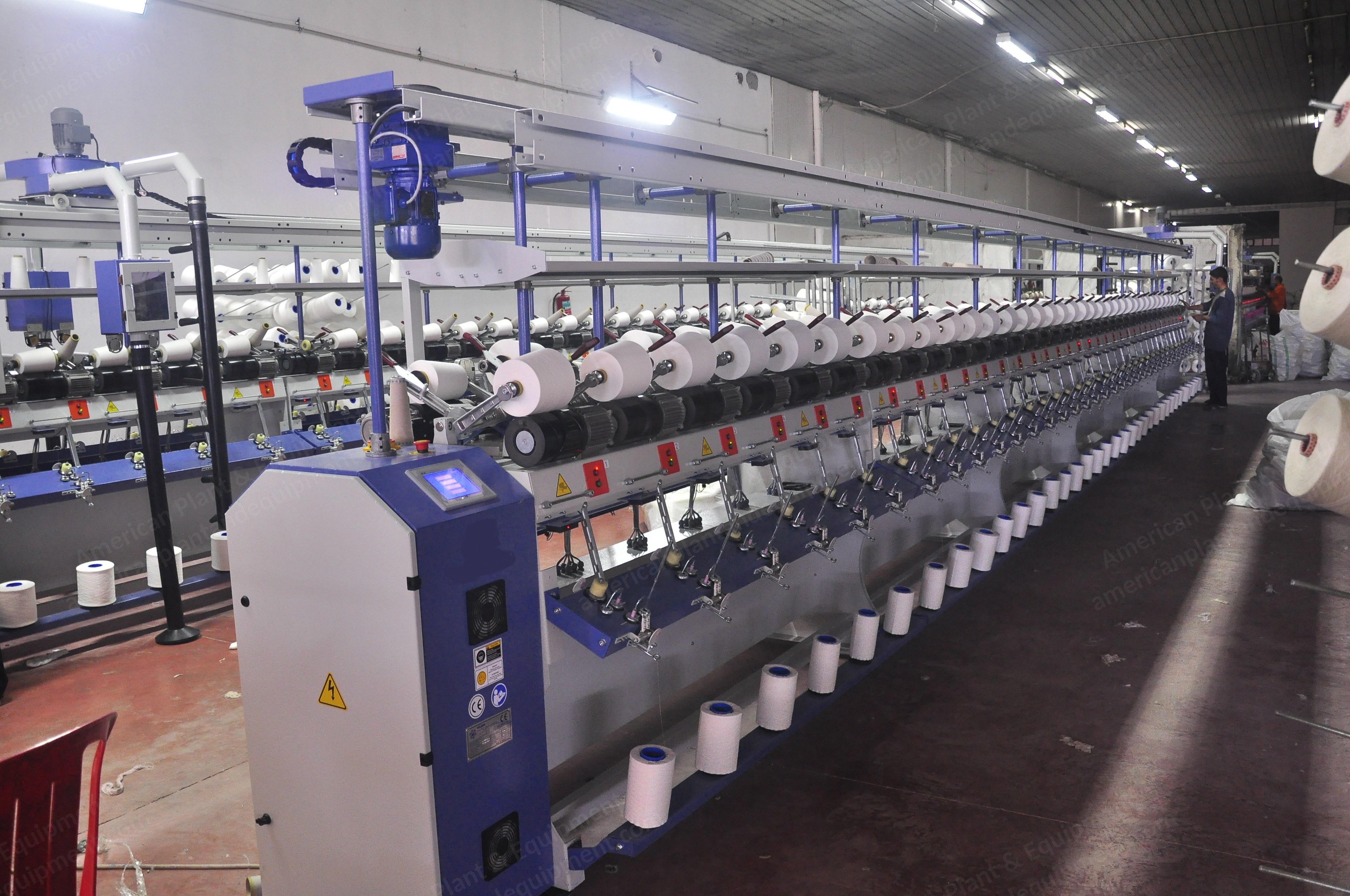

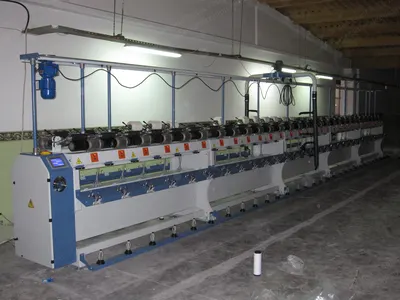

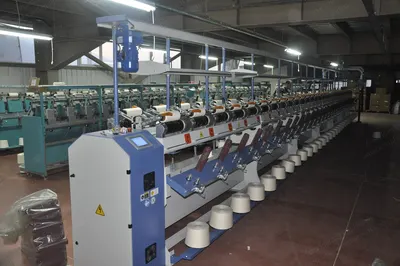

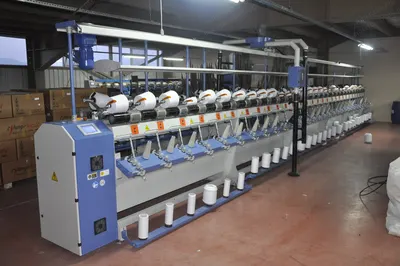

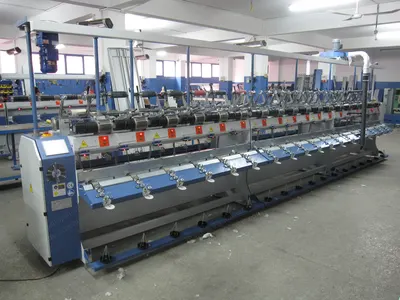

Description Overview 12 spindles machine with 1 element containing 12 heads Each head has its own motor For each spindle drum winding motor: 2800 cycle/min, 380 V, 0.08 kW, 0.22 A, 50 Hz Each spindle motor has a thermic motor Specifications Traverse: holder rubber excitation diameter 95 mm Grooved drum: 6 inches; maximum cone winding diameter is 320 mm Take-up tubes: 0 degree cylinders; cone chosen by customer Electronic patterning system Slub catcher: one per head, mechanical with micrometric adjustment Package stop: when meter reaches requested value, automatically stops Metering counter difference is maximum +/- 3% in each spindle Winding coefficient calibration in each spindle Maximum winding value is 900,000 m Cone density: adjustable with metal scale weight for each spindle Yarn filler: optical filler in each spindle Adjustable cone holder sliding Winding cycle control: inverter speed control supported Winding speed: between 200 and 1000 m/min, adjustable by LCD screen
