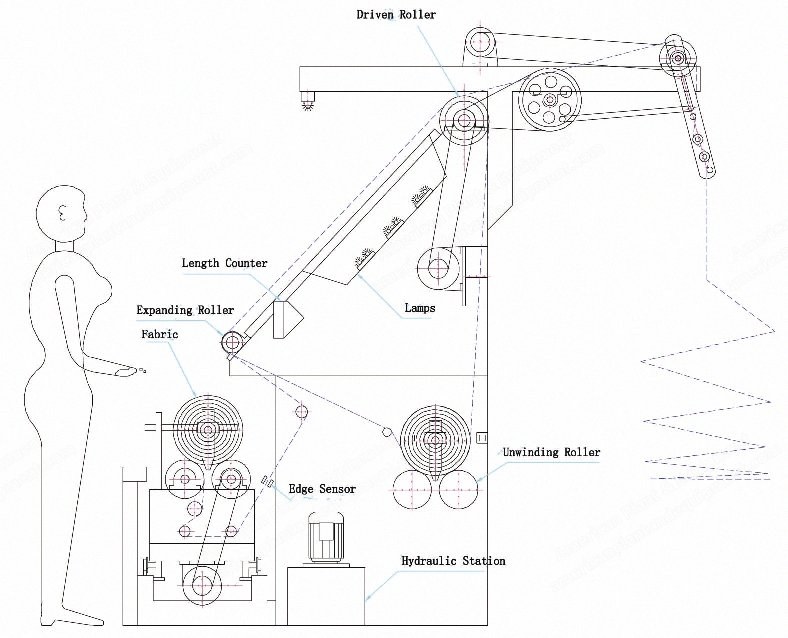

Description Overview Production name dual-function fabric inspection machine Working width 2000 mm Fabric width 1800 mm Diameter of fabric rolls ≤ 600 mm Highest speed 80 m/min Ce approved Specifications Main motor: 1 hp × 2 sets Edge-aligning motor: 1/2 hp × 1 set Edge-aligning tolerance: ±3 mm Expanding motor: 1/2 hp × 1 set Dimension: 2500 mm (l) × 2100 mm (w) Features Photoelectric hydraulic edge-alignment system is adopted. Fabric tension is adjustable via inverter, no shrink of fabric width. Equipped with an expanding roller to eliminate curled edge and avoid crease on fabrics. Speed of main motor is controlled by two inverters. Digital counter could make accurate measurement of length in yards or meters which can be interchanged. Winding roller and feeding roller are driven by gear motor. Hand control to inch fabrics forward and backward. Motors is available in forward and reverse running. Two ways of outlet including feeding from roll to plait and roll to roll.
