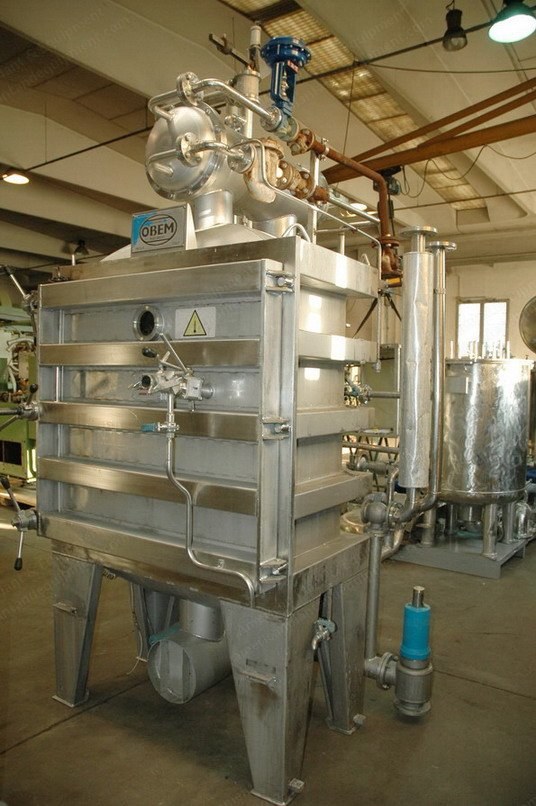

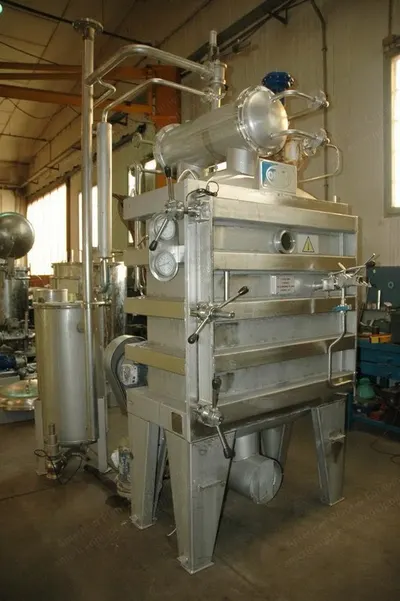

MBC, 45-06, 1994, Hank Dyeing Machine, 25 kg Capacity, Stainless Steel

MBC, 45-06, 1994, Hank Dyeing Machine, 25 kg Capacity, Stainless Steel

Description

  1. Overview
    1. Always perfectly parallel to the yarn, rendering the MBC system most suitable for dyeing delicate yarns like wool, wool and nylon, wool and acrylic, shrink resistant wool, wool and silk, mercerized cotton, cashmere, linen, etc.
    2. Due to their construction, MBC can work with a minimum liquor ratio of 1:10, obtainable with some yarns, which contributes to notable savings in the consumption of thermal energy, water and chemical products.
    3. The low liquor ratio increases the reliability of dyeing process and helps to reach a better final quality.
    4. The MBC is modular, so small and large capacity machines share the same accessories.
    5. Volumetric dummies render the flexibility of load possible till the 50% of the full load.
    6. Minimum lots of 1 kg up to a maximum of 2,500 kg (with 6 machines coupled in parallel) can be achieved.
    7. The MBC machine can also be used for the dyeing of pantyhose, socks, and narrow fabrics of polyester, nylon or cotton, with special baskets with drawers; these drawers can eventually be inserted in a automatic hydro-extractor for minimizing the energy consumption in drying.
    8. The MBC system is actually used successfully in every field of the textile industry world-wide where hank dyeing is required.
  2. General Features
    1. Fast load system with pull-out baskets.
    2. Capacity: 20-30 kg.
    3. Stainless steel construction.
    4. Working pressure: 0.6 kg/cm².
    5. Maximum temperature: 108 °C.
  3. Equipment Included
    1. Expansion vessel bathroom with static pump for introducing dyes and chemicals.
    2. Indirect heating and cooling coils.
    3. Cold water inlet valve.
    4. Exhaust valve machine.
    5. Pneumatic valve heating steam.
    6. Pneumatic indirect cooling.
    7. Sampling device.
    8. Main pump and three-phase motor.
    9. 1 basket door material.
    10. 1 trolley basket.
    11. 1 complete set skeins door stick.
    12. 1 basket door stock material.
    13. 1 trolley baskets of stock.
    14. 1 complete set of spare sticks.
    15. Electrical - without programmer.
