Zimmer, Barmag, 1991, POY Spinning Line, 9 Ton/Day Capacity

Zimmer, Barmag, 1991, POY Spinning Line, 9 Ton/Day Capacity

Description

  1. Overview
    1. Currently producing polyester
    2. Total production per day 9000 kgs
  2. System 4 Specifications
    1. Denier range 50 to 130
    2. Winding speed range 2900-3200 mpm
    3. TPD range 1.11 - 3.19
  3. System 5 Specifications
    1. Denier range 125 to 250
    2. Winding speed range 3000-3200 mpm
    3. TPD range 2.88 - 6.14
  4. Components Included
    1. Spinning beam x 8

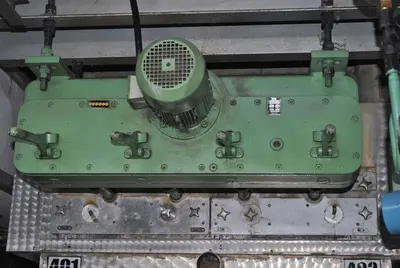

    2. Gear box and motors x 8
    3. Polymer metering pumps x 36

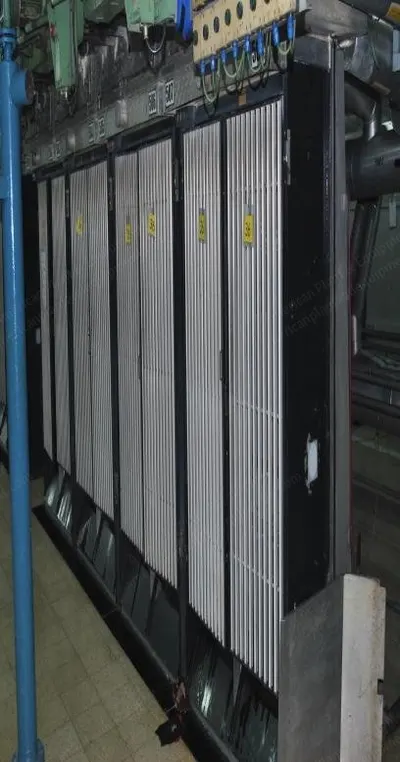

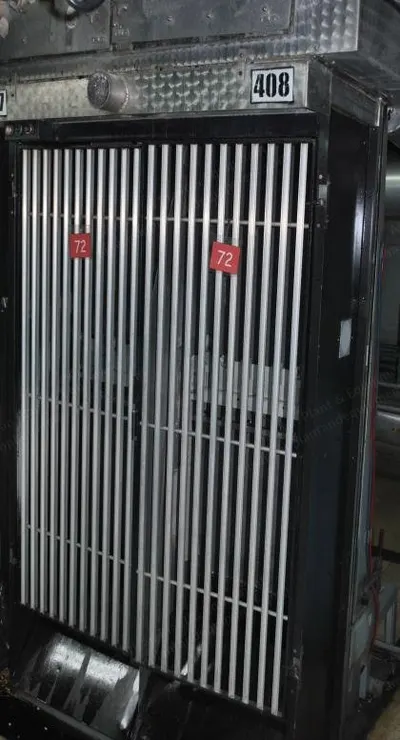

    4. Quenching screen / chambers x 8 (2 positions per screen)
    5. Inter floor tubes x 16
    6. Godets x 32

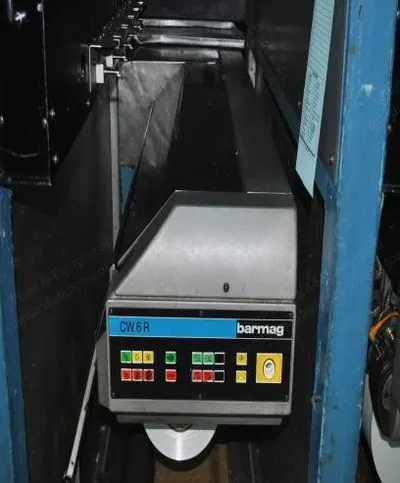

    7. Barmag craft winders x 17 (13 in working condition)

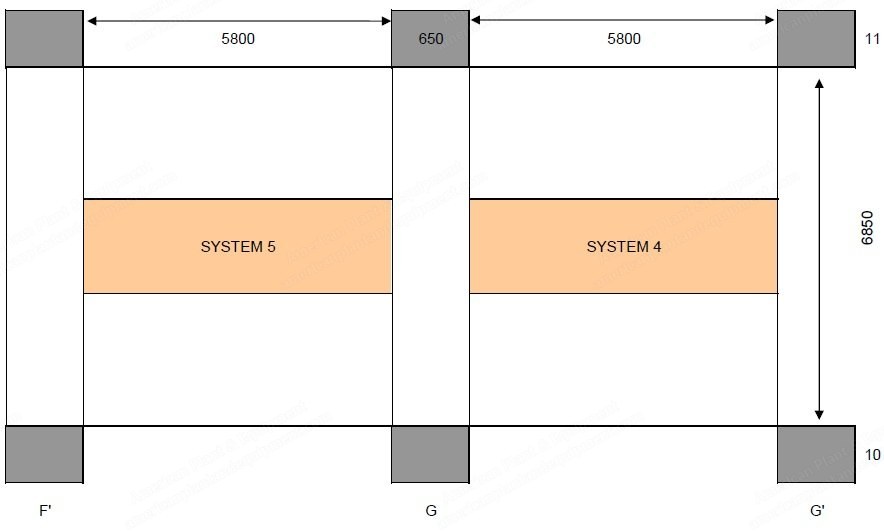

  5. Location and Layout
    1. Located in factory on 3 floors
    2. Spinning beam at 10 meter level, quenching at 7 meter level and winding at 1 meter level
