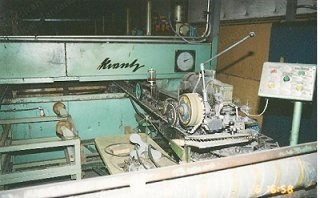

Krantz Tenter Frame, 3800mm, 3 Zones, Natural Gas, Pin Chain

Krantz Tenter Frame, 3800mm, 3 Zones, Natural Gas, Pin Chain

Description

  1. Overview
    1. Maker: Krantz
    2. Working width: 3800mm (150”)
    3. Natural gas
    4. Pin chain (horizontal traverse with vertical return)
    5. Kusters/Krantz tripad
  2. Specifications
    1. 3 rubber rollers, 3000mm (114”) width upper and lower rolls
    2. Stainless steel pan, chemical sprayer
    3. Tenter frame entrance air uncurlers
    4. Optical sensors
    5. Brush fabric guiders
    6. Trimmers and gummers, waste suction
    7. Steam box
    8. 3 heating zones
    9. Cooling zone, 72” long (1830mm)
    10. Roll up exit
    11. Flat fold exit
    12. Overall length of tenter frame: 13 meters (511”)
    13. Overall width of tenter frame: 4500mm (179”)
    14. Overall height of tenter frame: 2400mm (96”)
    15. Electronic temperature control for 8 zones
    16. Speed, chain opening, air fans, cooling fan, etc.
    17. Electrical controls in cabinet
    18. Electrical: 460 volts 3 phase 60 hz
