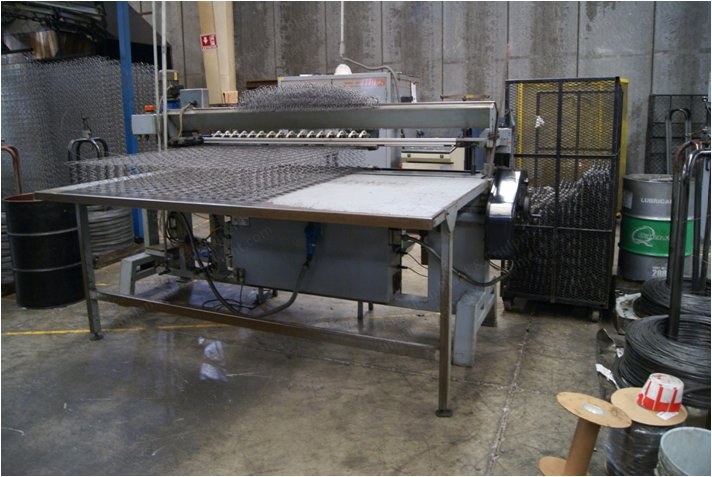

Fides, Assembler, 1998, 16 Jaws, 1320x1870mm

Fides, Assembler, 1998, 16 Jaws, 1320x1870mm

Description

  1. Overview
    1. Two helical motor units, model T80-C4 Motovario
    2. Assembler motor MGM BA80B4
    3. Measuring 1320 x 1870 mm
  2. Specifications
    1. Motovario: 220 V, 4.4 amps, 60 Hz, 0.92 kW, 1410 rpm
    2. MGM assembler motor: 220 V, 4.9 amps, 60 Hz, 0.75 kW, 1400 rpm
    3. Air consumption at 6 bar: n/a
    4. Connection cable: 4 x 21.15 mm²
    5. Air pipe: ½" NPT
    6. Lubricating oil deposit: 4 litres
    7. For innerspring 16 x 27
    8. Number of springs per unit: 432 coils
    9. 16 jaws
    10. Helical weight: 2.54 gr
    11. Outer diameter helical: 9 mm
    12. Wire gauge: 17
