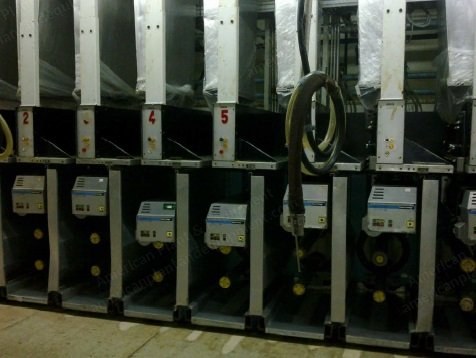

Barmag, SW-62-R-900, 1995, POY Spinning Line, 12 Positions, 6 Ends/Position

Barmag, SW-62-R-900, 1995, POY Spinning Line, 12 Positions, 6 Ends/Position

Description

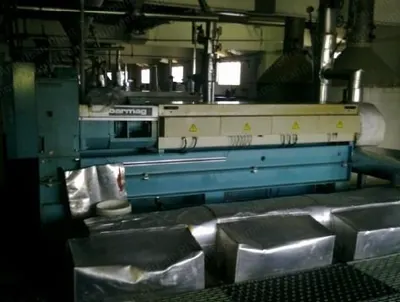

  1. Extruder
    1. Type: Barmag 10 E8/24D (single screw)
    2. Capacity: max. 290 kg/hr
  2. Extruder Motor
    1. Type: Siemens DC motor
    2. Model: 1GG5 182-OND10-6SU-Z DC
    3. Motor: 59.5 kW, 143 A, 1970 rpm
  3. Spinning
    1. Type: EMS-Inventa-AG process
    2. Positions: 12 positions, 6 ends per position
    3. Capacity d/n: 40-120 denier
    4. Spinpack diameter: 64 mm
    5. Spin pump: Barmag 6 x 1.8 cc/rev, 6 x 1.8 cc/rev
    6. Spin pump motor specs: type 1FU3087-6TV91-Z IEC80 IMB5 IP54, 125 V, 50 Hz, 400 W, 2.5 A, 1000/min VDE0530, I.CI.F 2.5/Hz 25-150 Hz, Imax=2.8 A, Siemens
    7. Finish oil motor specs: type G042-20/DUS44-114L-S, 220 V, 50 Hz, 127 V, 0.25 A, 25 W, Eberhard Bauer
  4. Winder
    1. Type: Barmag SW-62-R-900 (auto doffing)
    2. Spindle motor specs: type 1LA5113-2AA92-Z, 190-285-360 V, IEC112M IMB14 IP54, 16.0 A, 3.56-5.34-2.35 kW, I.CI.F 50-75-280 Hz, 2880-4380-16700/min, Siemens
    3. Spindle diameter: 150 mm
