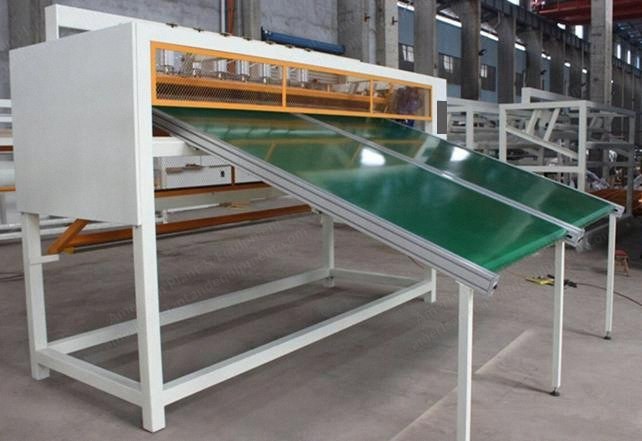

NovaStar, FN346, Panel Cutting Machine, 2400mm Max Trim, 1.5 kW, 3750x1330x2000mm

NovaStar, FN346, Panel Cutting Machine, 2400mm Max Trim, 1.5 kW, 3750x1330x2000mm

Description

  1. Overview
    1. Used for cross cutting, slitting, and edge trimming on quilted fabric
    2. Can be run alone
    3. Cross cut in each direction
    4. Roller pressure by pneumatic lift cylinder
    5. Length detecting sensor adjustable by manual wheel
  2. Specifications
    1. Thickness: 3 to 80 mm
    2. Speed: 7.5 meters per minute
    3. Power: 1.5 kW
    4. Power supply: 380 volts @ 50 Hz or 220 volts @ 60 Hz
    5. Machine dimensions: 3750 x 1330 x 2000 mm
    6. Weight: 1000 kg
    7. Length of slanting board: 0.4 to 0.8 Mpa
  3. Cutting Capabilities
    1. Trim margins: max. x dimension 2400 mm, min. x dimension 800 mm
    2. Slitters: max. x dimension 2450 mm, min. x dimension 160 mm
    3. Cross cutting: max. x dimension 2200 mm, min. x dimension 500 mm
  4. Features
    1. Slitting blades equipped with safety covers
    2. Electronic controls for adjusting length of the cutting blade
    3. Pneumatic sharpening device
