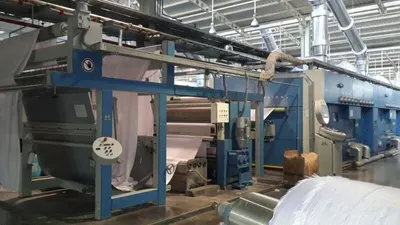

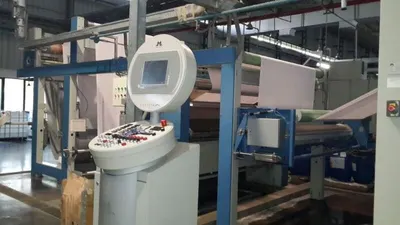

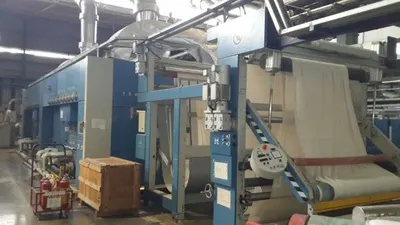

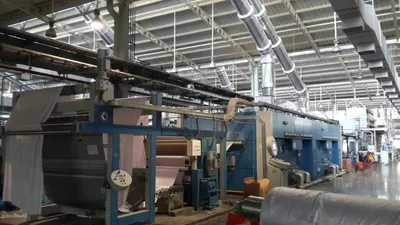

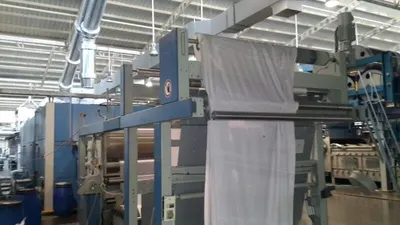

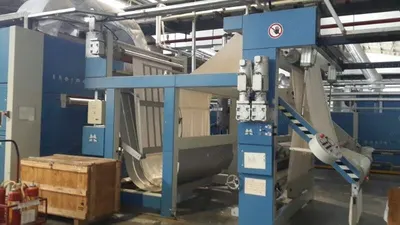

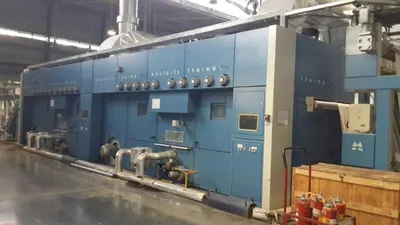

Monforts, Thermix, 2006, 1 Chamber, 5x3m Chamber Size, Gas Burners

Monforts, Thermix, 2006, 1 Chamber, 5x3m Chamber Size, Gas Burners

Description

  1. Overview
    1. Trials conducted on 19.11.2006.
    2. Major breakdown: nil.
    3. Machine speed: 45 m/hr.
    4. Connected load: 120 kW.
    5. Running load: 100 kW/hr.
    6. Water requirement: 1 m³/hr.
    7. Steam requirement: 800 kg/hr.
    8. LPG requirement: 72 kg/hr.
    9. Air required: 100 L/hr.
    10. Air line: 15 NB.
    11. Steam line: 100 NB.
    12. LPG line: 50 NB.
  2. Stack Specifications
    1. Type of stack: round.
    2. MOC of stack: SS 304.
    3. Stack diameter: 0.7 meters.
    4. Stack cross sectional area: 0.3846 m².
  3. Alterations and Additions

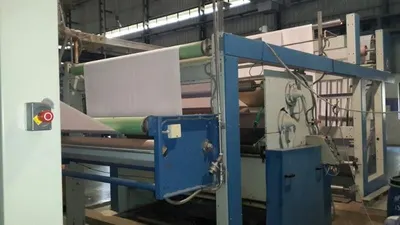

    1. Alteration or addition: chemical padder.
    2. Lubricant we are using.
    3. Roller bearings: supra lub HT grease.
    4. Sliding parts: moly umft spray.
    5. Gear box: mobil gear 630 oil.
    6. Burners run on gas.
  4. Chamber Dimensions
    1. Length of one chamber is 5 meters and width is 3 meters.
  5. Burner Capabilities
    1. Burners can operate with natural gas, ethane, methane.
  6. Condition
    1. Excellent condition.
