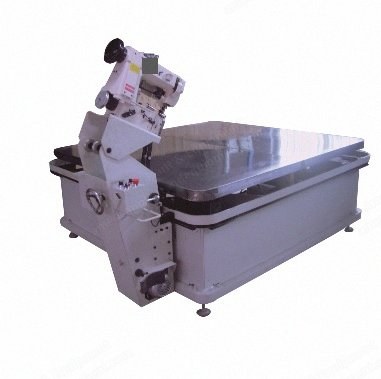

NovaStar, MB178, Tape Edge Machine, 10 to 20 Beds per Hour, 1800x2000mm Table Size, 380V (New)

NovaStar, MB178, Tape Edge Machine, 10 to 20 Beds per Hour, 1800x2000mm Table Size, 380V

Description

  1. Overview
    1. Tape edge machine with precision guide track on its support frame for accurate carriage movement and smooth operation.
    2. Walking carriage runs while sewing head tilting angle and working table height are controlled electrically for convenient operation.
    3. Perfect for manufacturing high-class mattresses.
  2. Electrical Specifications
    1. Voltage: 380 V / 50 Hz, 3-phase for all equipment.
  3. Model #1 Specifications
    1. Production rate: 10 to 15 beds per hour.
    2. Lifting range: 0 to 200 mm.
    3. Sewing head type: chain stitch.
    4. Table size: 1600 mm x 2000 mm.
    5. Mattress thickness: 50 mm to 700 mm.
    6. Tilting angle: 30° to 58°.
  4. Model #2 Specifications
    1. Production rate: 10 to 20 beds per hour.
    2. Lifting range: 0 to 200 mm.
    3. Sewing head type: chain stitch.
    4. Table size: 1800 mm x 2000 mm.
    5. Mattress thickness: 50 mm to 500 mm.
    6. Tilting angle: 30° to 55°.
  5. Additional Information
    1. More information is available upon request.
