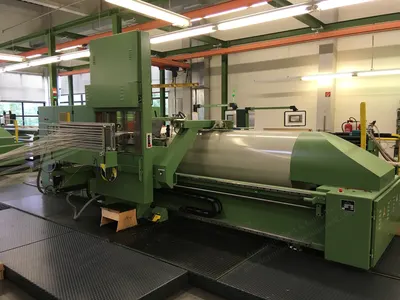

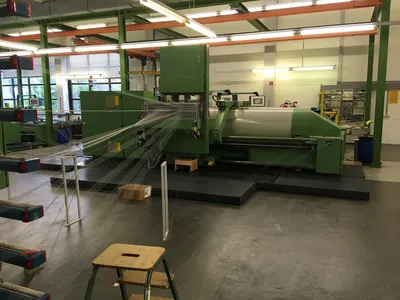

Karl Mayer, Econ-O-Matic, 2001, Sectional Warping Machine, 2250mm Working Width, 1000mm Flange Diameter

Karl Mayer, Econ-O-Matic, 2001, Sectional Warping Machine, 2250mm Working Width, 1000mm Flange Diameter

Description

  1. Overview
    1. Karl Mayer sectional warping machine
    2. Model: Eom Econ-O-Matic
    3. Year 2001
  2. Specifications
    1. Working width: 2250 mm
    2. Flange diameter: 1000 mm
    3. Perimeter of drum: 2500 mm
    4. Drum diameter: 825 mm
    5. Angle: 15°
    6. Warping max: 600 m/min
    7. Beaming: 150 m/min
  3. Included Equipment

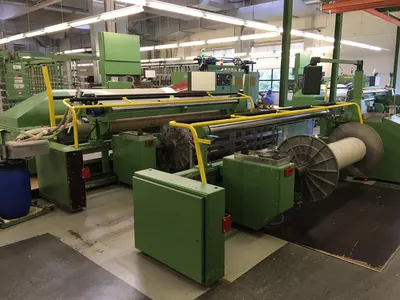

    1. 1 x additional beaming machine with software and motor regulation for rebeaming (beam 1 to beaming machine)

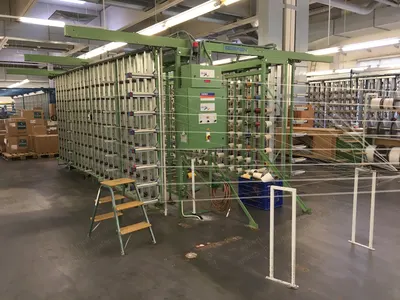

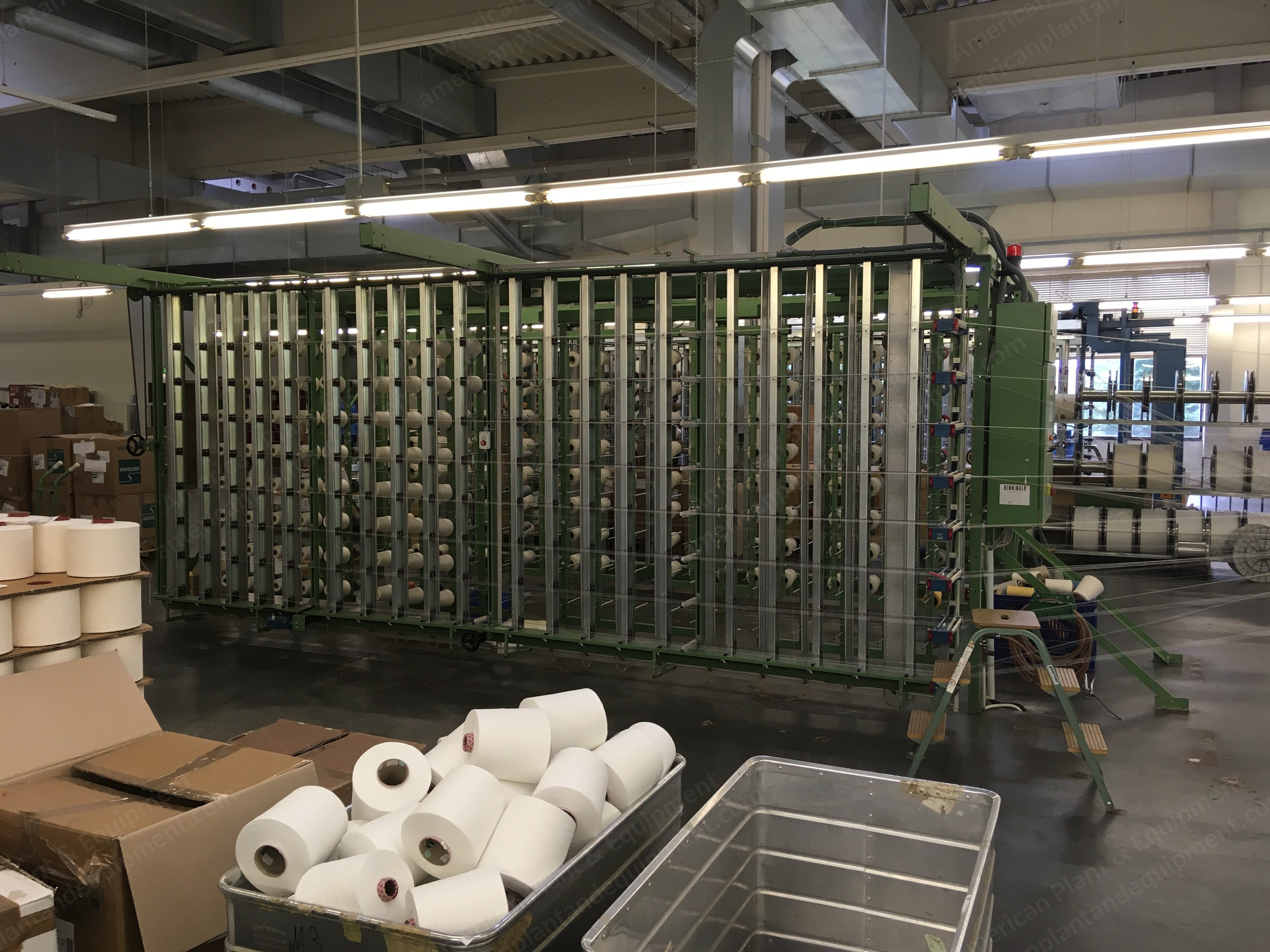

    2. 1 x Benninger creel, type: Ben Creel, year 1998
    3. Creel specifications: T = 240 mm, diameter = 220 mm, tube length 250 mm
  4. Dimensions
    1. Floor space of the warper: 7.3 meters x 9 meters
    2. Floor space of the creel: 6.5 meters x 5 meters
