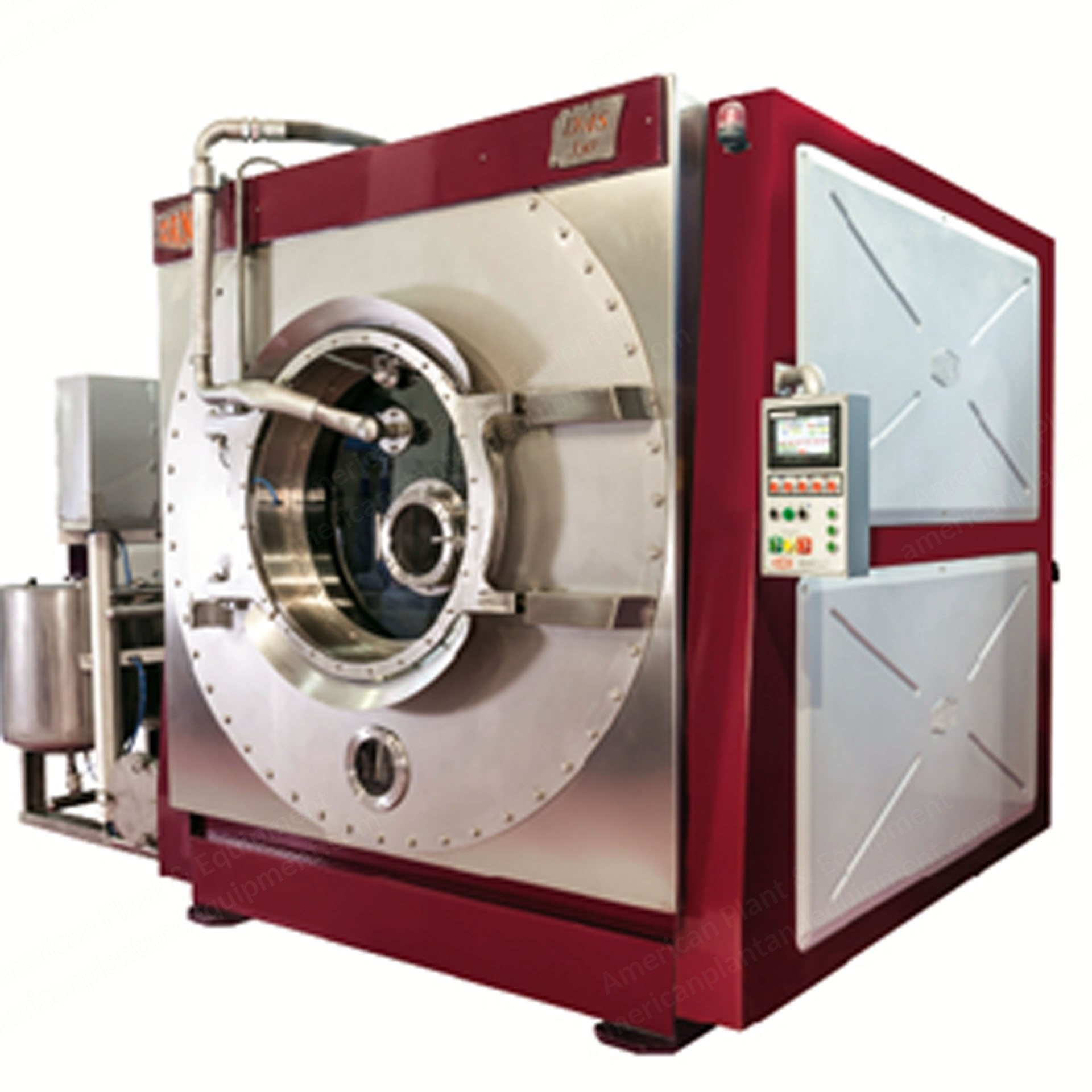

DMS, DMS 330, Garment Dyeing Machine, 30 to 350 kgs Capacity, 3606 Liters Drum Volume (New)

DMS, DMS 330, Garment Dyeing Machine, 30 to 350 kgs Capacity, 3606 Liters Drum Volume

Description

  1. Overview
    1. Dms-330 dyeing machine, capacity of 350 kgs dyeing, computer controlled full automatic garment dyeing machine.
    2. Dms 330 garment dyeing machine is designed to achieve perfect results in all kinds of dyeing processes of garments with various fabric types (cotton, linen, viscose, tensel treatment, etc.).
  2. Specifications
    1. Machine capacity: 30 to 350 kgs.
    2. Drum volume: 3606 liters.
    3. Drum dimensions: 1750 x 1500 mm.
    4. Rotation speed: 0-50 rpm (variable).
    5. Extraction speed: 0-250 rpm (variable).
    6. Installed power: 22.5 kw.
    7. Weight: 6000 kgs.
    8. Garment to water ratio (in the process of dyeing) is 1 to 3.
  3. Main Technical Features
    1. Variable rotation speed between 0-50 rpm due to fuji branded inverter.
    2. Controlled by lg branded plc and industrial lg branded touch screen.
    3. In addition to plc, semi automatic and manual control options.
    4. Front tilting function due to the special hydraulic unit for easy unloading.
    5. Power transmission due to belt driven motor, 1 special oversized pulley and 8 v belts.
    6. Direct and indirect steam heating due to special system.
    7. Exchanger and filter system for heating in a short period of time and effective way.
    8. Spraying system for dyeing, providing highly effective dyeing and a serious decrease in water consumption.
    9. Fiber composite anti rusting side doors and chassis technology.
    10. Mechanical liter counter, burkert branded.
    11. 2 water inlets.
    12. Automatic special glass door with porthole for sampling and double automatic locks.
    13. 3 small and 3 large special beaters in the inner drum.
    14. Siemens, finder, telemecanique branded electrical components.
    15. 3 full automatic tanks for chemicals and dyeing products, 1 automatic pump and automatic control board.
  4. Technical Description
    1. Electro-welded steel structure, sandblasted and painted with special rustproof paint.
    2. Aisi-l stainless steel casing, fixed to the frame.
    3. All parts in contact with water are produced by stainless steel.
    4. C45 steel shaft, hardened and tempered and subjected to non-destructive tests.
    5. Special bearings protected by a five stage seals system (2 viton seal, 3 lubrication seal).
    6. Door which is opened and closed automatically, provided with a sampling porthole which is made of tempered and anti-scratch glass.
    7. Ac motor controlled by a fuji branded inverter created the drive system of the machine, provides the continuous speed variation, without any additional mechanism.
    8. Direct and indirect steam heating.
    9. This machine is supported with special electric, pneumatic and hydraulic systems. The electric system is protected by a fan against over-heating and humidity.
    10. This machine is built in accordance with the ce-73-23-cee norm and is entirely manufactured in in danis production facilities.
  5. Controlling System
    1. This machine is controlled by lg branded plc (programmable logic controller). It is supported with lg latest model touch screen.
    2. The installed software is entirely produced by danis engineers in order to control all the machine functions and machine process fastly and easily.
    3. Due to the touch screen, 99 recipes can be created and each of them consists 200 steps. This screen is very comfortable to use as it provides clear information for the operator.
    4. Due to the supervision system which is installed upon request to the machine, this machine along all danis washing machine in the same facility can be controlled by a pc in the factory office.
