Rostoni, OSK, 2008, Sectional Warping Line, 3650mm Drum Width, 640 Position Creel

Description

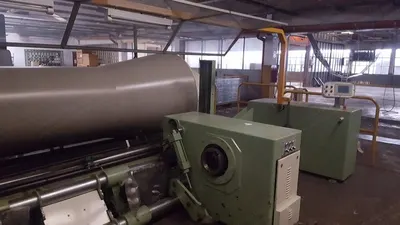

Item 001: Sectional Warping Line
1. For all artificial and synthetic multifilament yarns.
2. Rostoni sectional warper, model OSK, year 2008.
3. Drum width 3650 mm, diameter 1000 mm.
4. Left conical drum length 1220 mm.
5. Beaming warp beams width 3650 mm x flange diameter 800 mm / 970 mm.
6. Rostoni creel, 640 positions, complete with all accessories.
7. Vertical gauge 275 mm, horizontal gauge 270 mm.
8. 8+8 horizontal floors with electric warp stop motion.

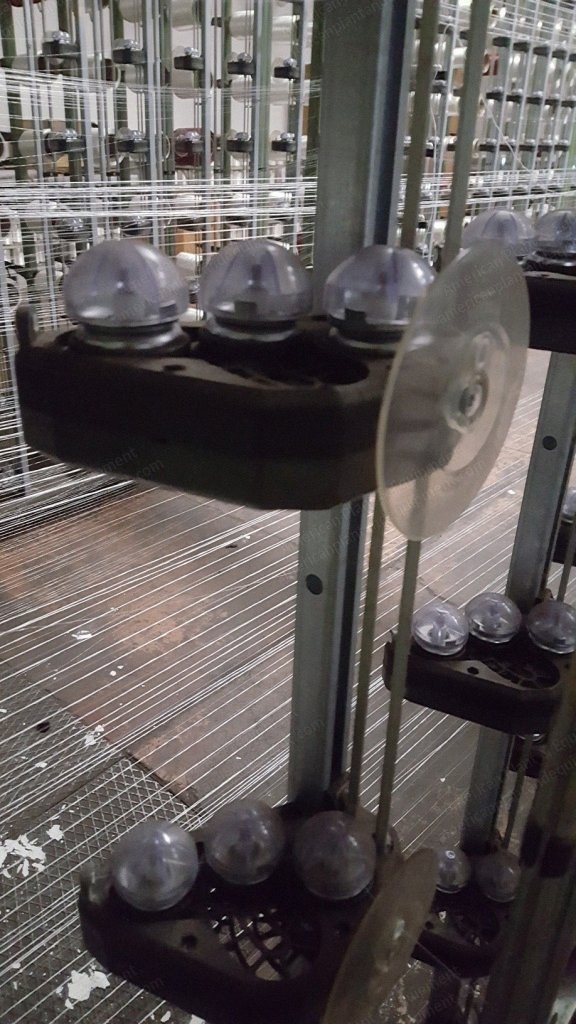

9. Breaking yarn 3 disks (regulation position central disk, for tension yarn regulation).

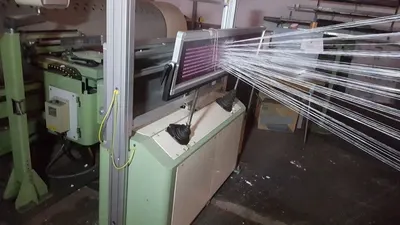

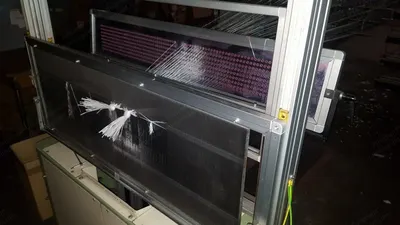

10. Rostoni automatic leasing reed with tables guide wire-yarn.
11. Total line length 29300 mm (creel 20000 mm, width 4500 mm) plus length 4300 mm head warper, width 7500 mm (width rails 11500 mm), plus length from head warper to creel: 5000 mm.

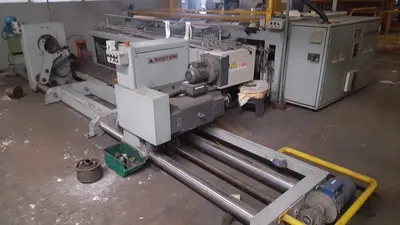

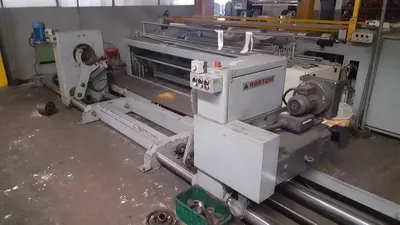

Item 002: Complete Rostoni Beams-Unwinder - Beaming - Winder - Beams
1. Model P80A, year 1997.
2. Width 3200 / 3000 mm.
3. For beams flange diameter 1000 mm.
4. 5 bars for separation of yarns.
