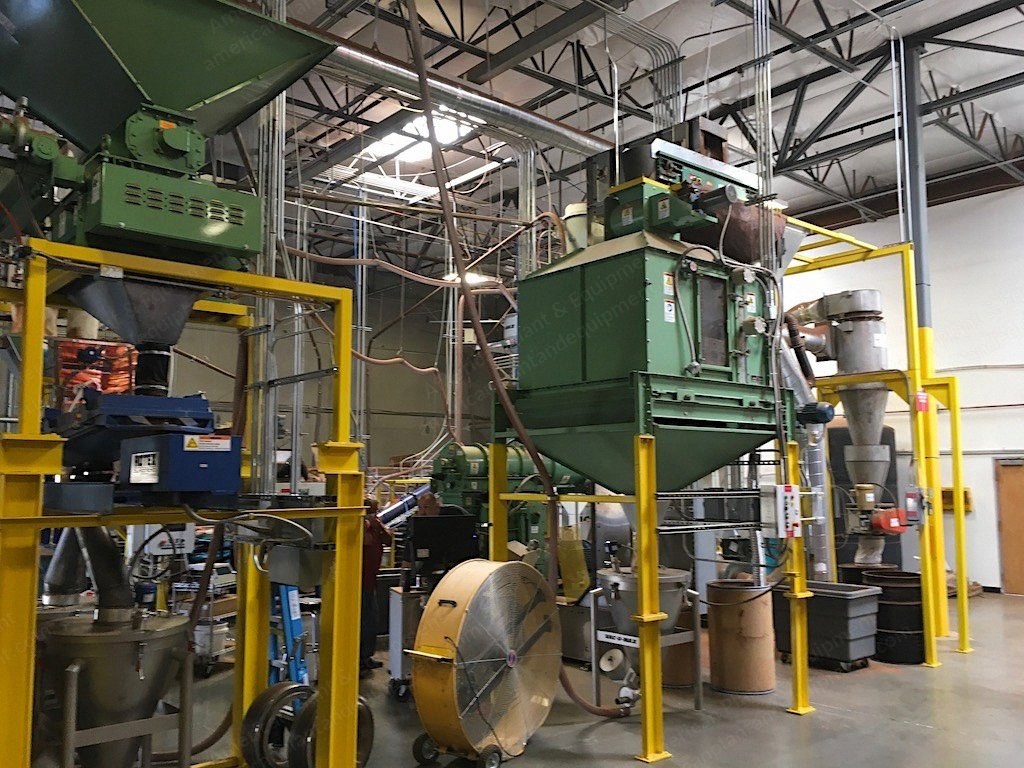

CPM, 3016-4, 2012, Pellet Mill Line, 100 HP, 16x4 inch Dies

CPM, 3016-4, 2012, Pellet Mill Line, 100 HP, 16x4 inch Dies

Description

  1. Overview
    1. Most equipment manufactured in 2012 with very low usage.
    2. Crumble manufactured in 2016 with very low usage.
    3. Pellet mill Cpm feeder is new and never installed.
    4. All equipment is near new condition.
    5. Short list only.

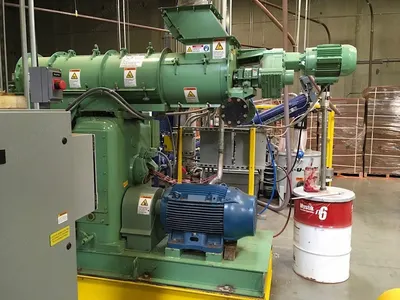

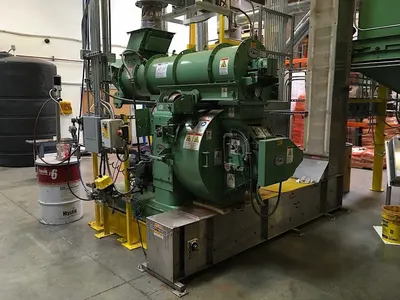

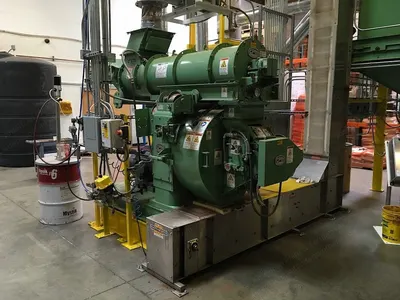

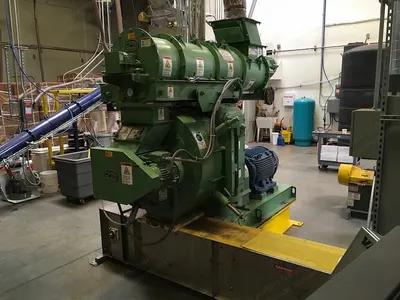

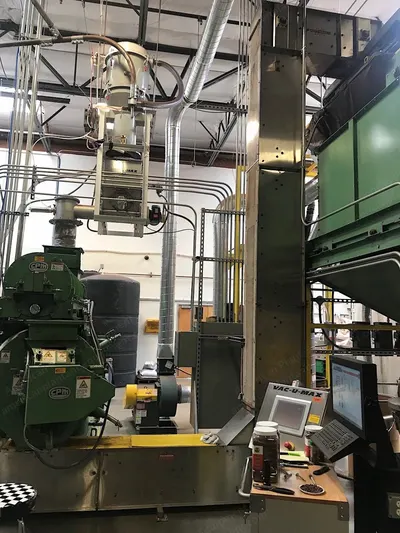

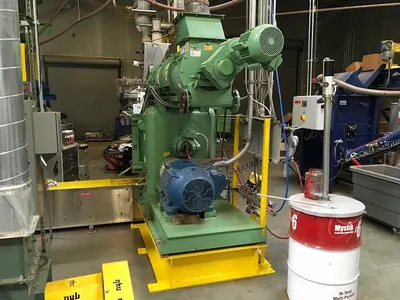

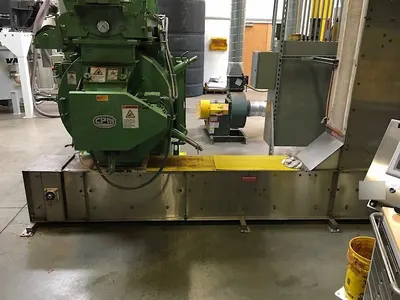

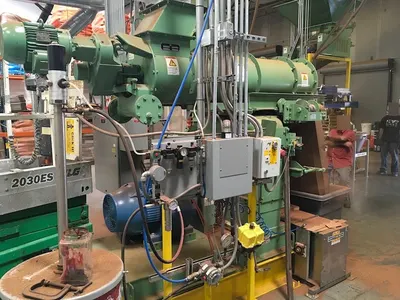

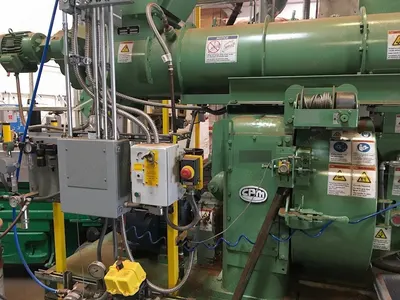

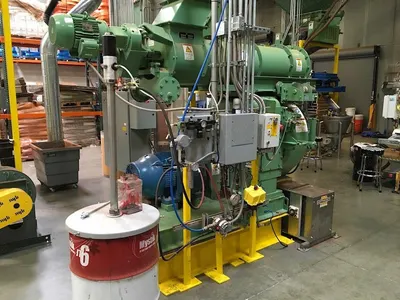

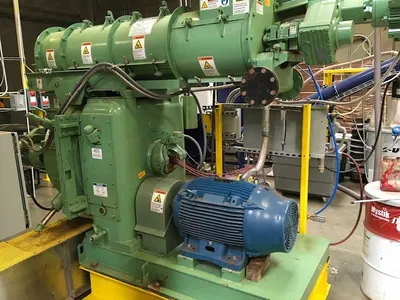

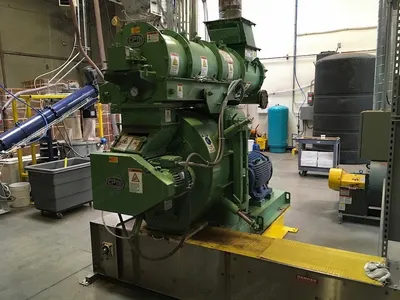

  2. Pellet Mill

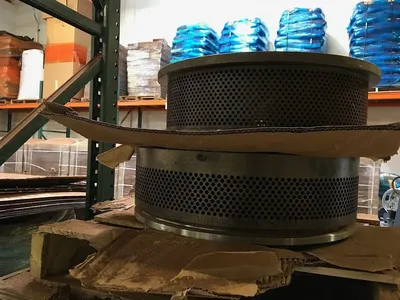

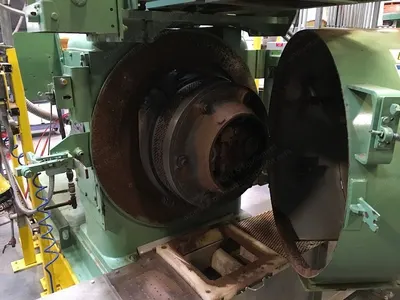

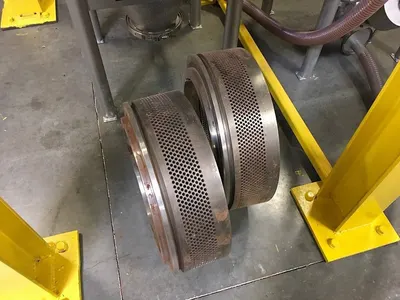

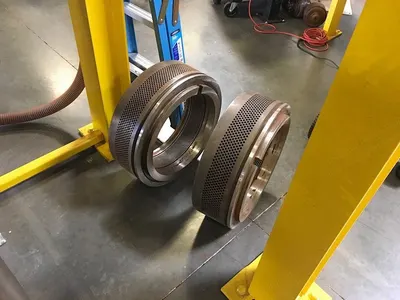

    1. 16” diameter x 4” wide narrow dies.
    2. Includes 6 total dies with “mill clamp-on” dies for fast die changes in less than an hour.
    3. 100 hp - 440/3/60.
    4. Feeder (new never installed) Et conditioner with drive.
    5. Self-lubrication system.

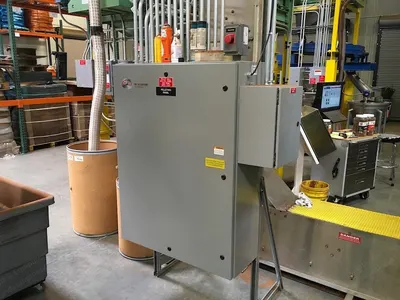

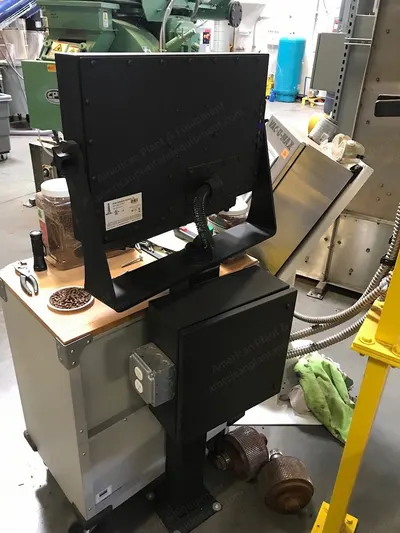

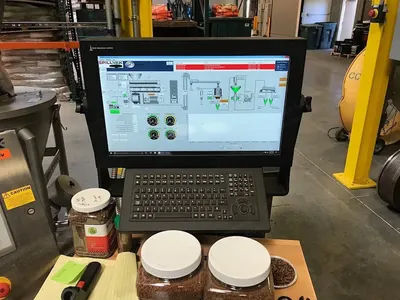

    6. A Beta Raven electrical control panel and touchscreen controls with server.

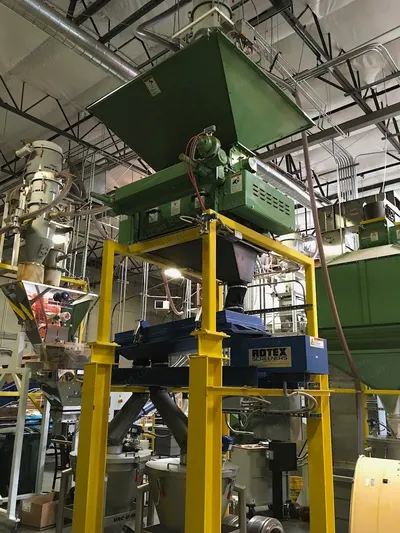

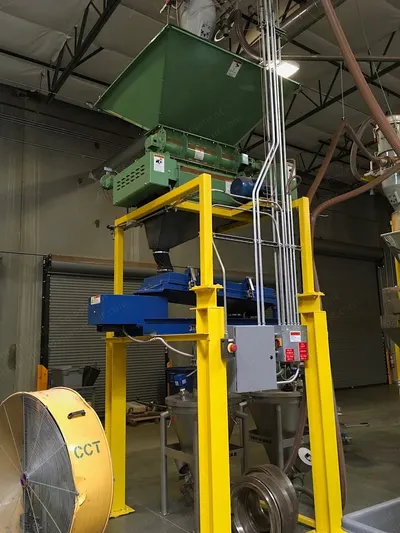

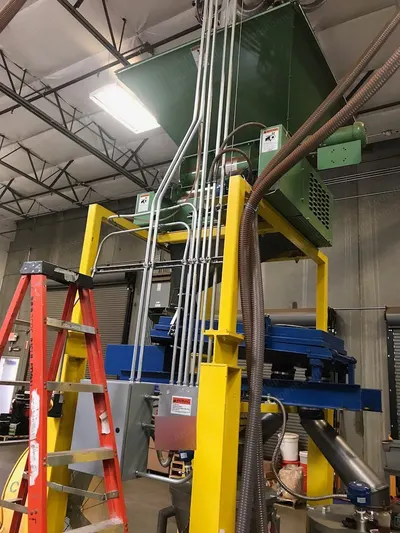

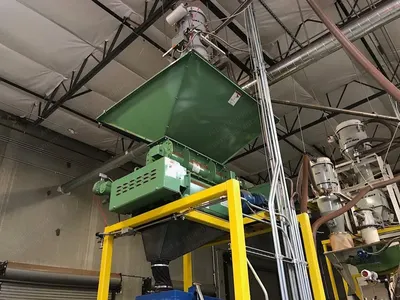

  3. Cpm Crumble
    1. Model Pc337 Ss.
    2. Includes feeding hopper.
    3. Includes roll feeder.
    4. Includes support stands.

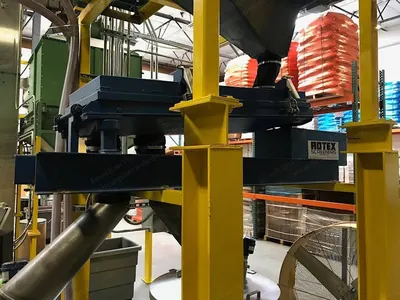

  4. Rotex Screener
    1. Model R11gt.
    2. Single deck.
    3. With motor.

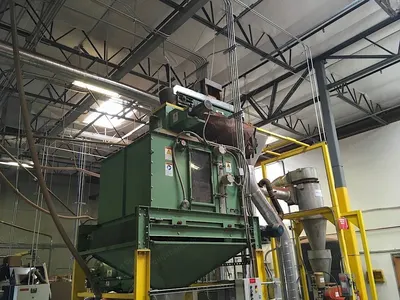

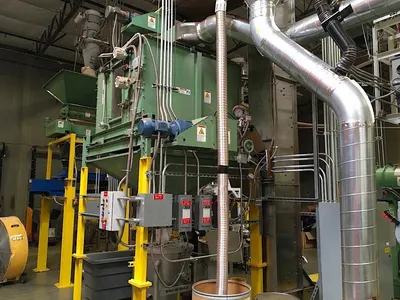

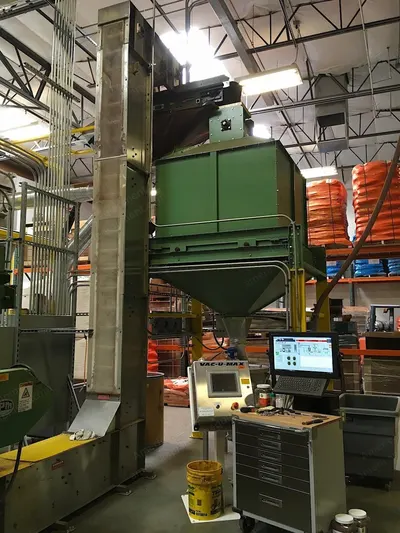

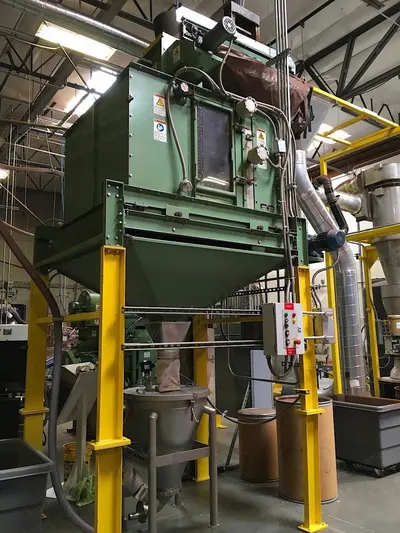

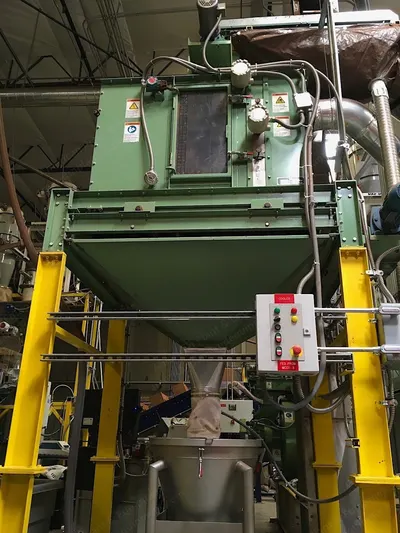

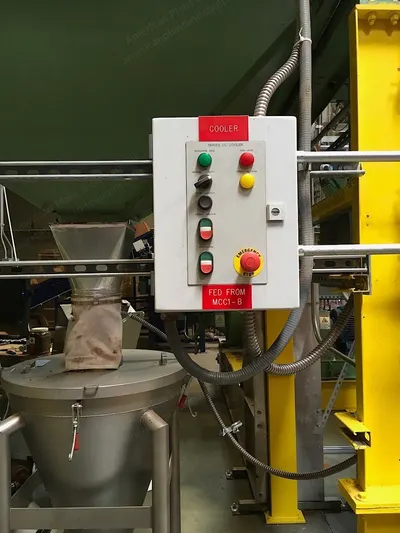

  5. Cpm Counterflow Cooler
    1. Model Cc1414.
    2. Includes all supports.
    3. Pelletizing Plc controlled.
    4. High/low-level sensors.
    5. Bi-directional conveyor (on top).

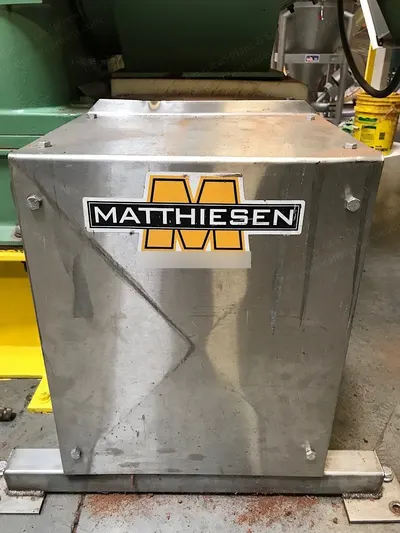

    6. Matthiesen stainless steel conveyor available to transfer pellets from pellet mill to cooler.
    7. 18'0” high.

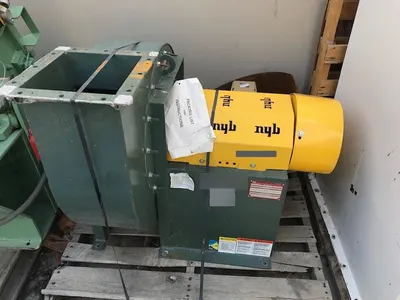

    8. Nyb fan with complete cyclone system.

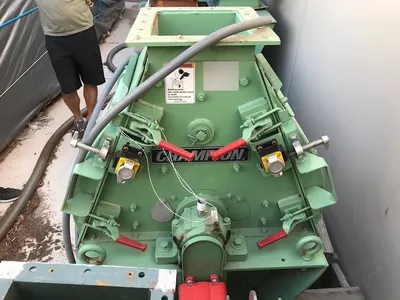

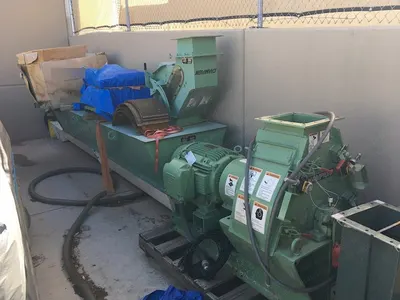

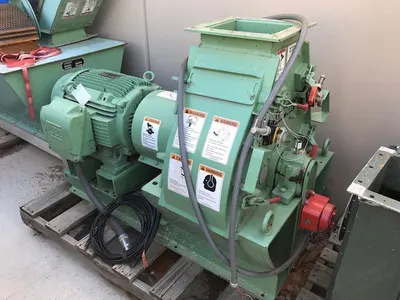

  6. Champion Hammer Mill
    1. Model 11.5 x 22.
    2. 60 hp - 440/3/60.
    3. Champion air separator.
    4. Fan Nyb 194 Ls.
    5. Roach 10'0” conveyor.
    6. Champion 18' long plenum.
    7. Champion 12” screw feeder.

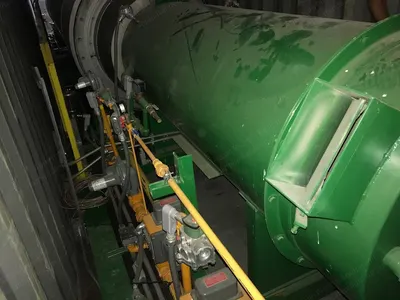

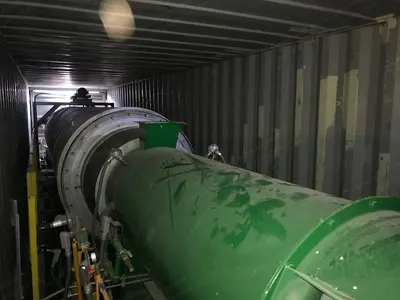

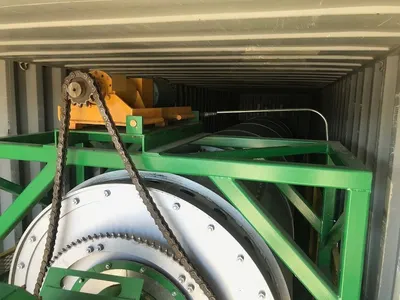

  7. Uzelac Rotary Dryer
    1. Model Spd-1000.
    2. Drum 4.5' diameter x 40'0” long.

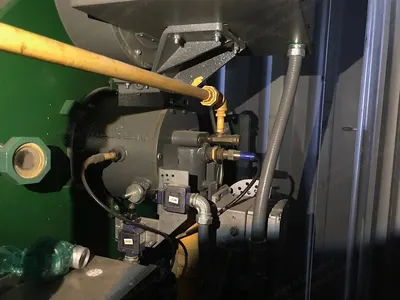

    3. 3.5 Mm Btu Maxon gas Ovenpak 400 burner appears to be unused or very low usage.

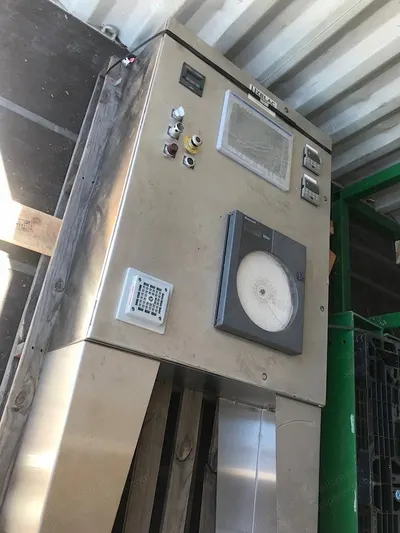

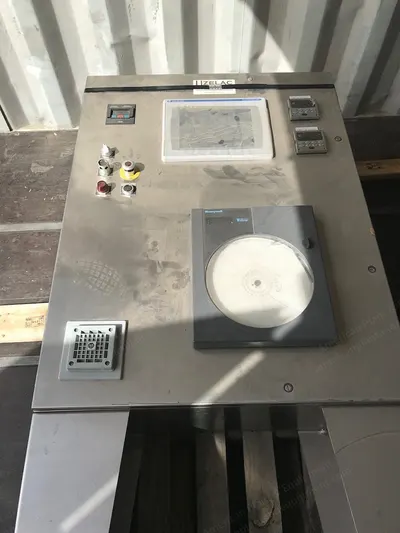

    4. Cyclone, dryer fan, dust collection, stands and Plc control panel.

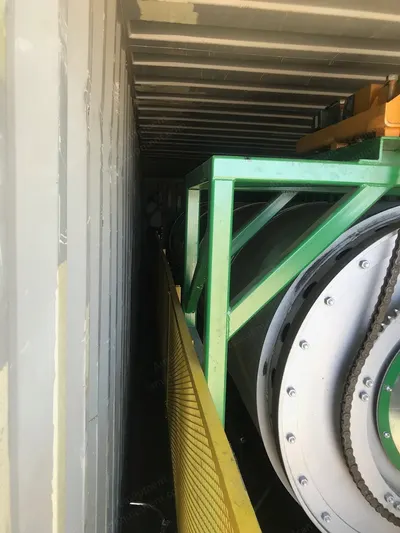

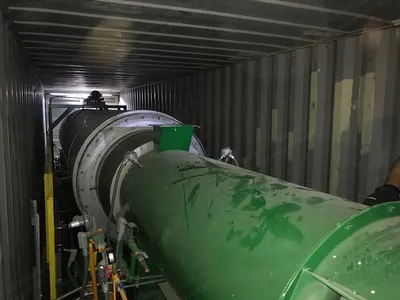

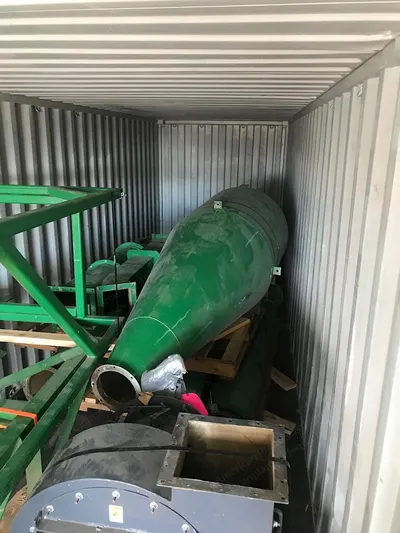

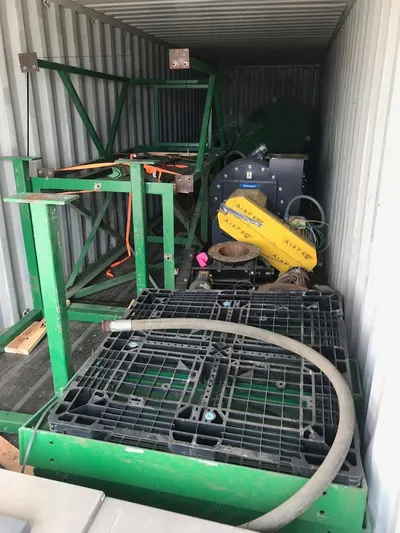

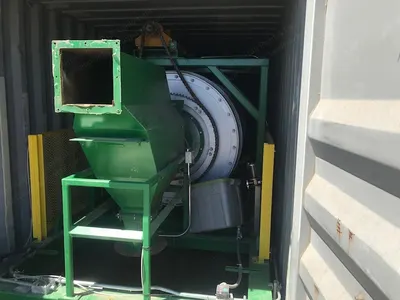

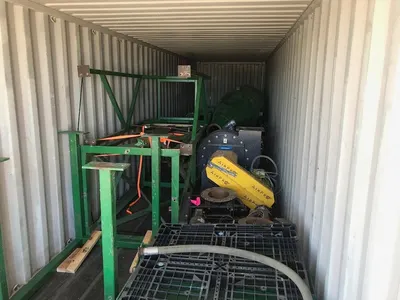

    5. All the above stored in (2) two shipping containers.
    6. The dryer system is extra and not included in the price.
