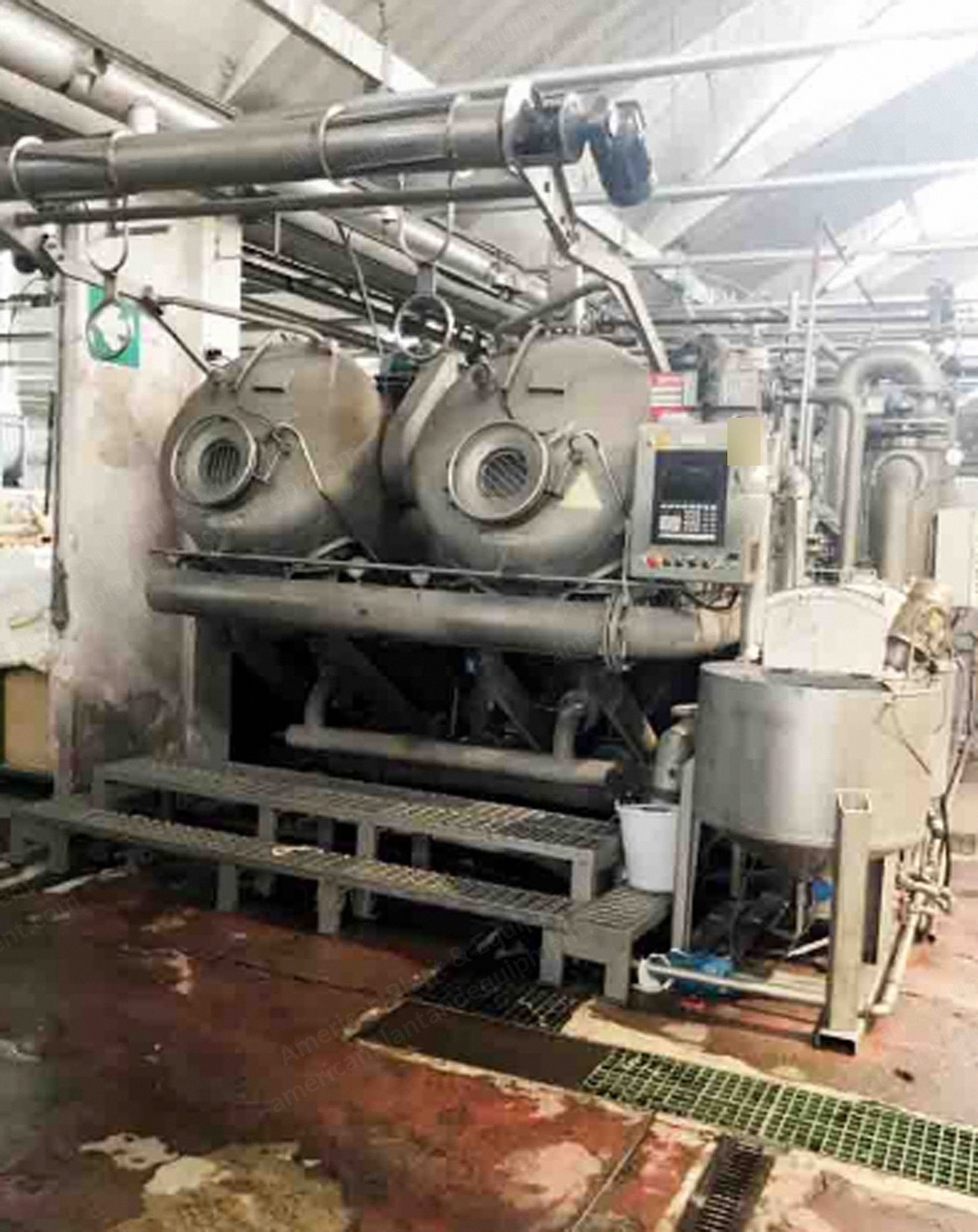

Thies, TRD DS, 2003, High Temperature Long Tube Rope Dyeing Machine, 400 kg Capacity, 2 Pipes, Max 140°C

Thies, TRD DS, 2003, High Temperature Long Tube Rope Dyeing Machine, 400 kg Capacity, 2 Pipes, Max 140°C

Description

  1. Overview
    1. Thies Trd Ds high temperature long tube machine for rope dyeing
    2. Year 2003
    3. Max. exercise temperature 140 °C
    4. Liquor ratio min. 1:8
  2. Specifications
    1. 2 pipes with 2 ropes for each pipe, total 4 ropes
    2. Nominal loading capacity 400 kg, 100 kg for each rope
    3. Double tank for introduction of the dyestuffs and auxiliary stuffs; both tanks are equipped with electromixer
    4. Liquor circulation pump with variable revolutions by inverter
    5. Heat exchanger
    6. Self cleaning filter
    7. Motorized reels with adjustable speeds
    8. Motorized fabric discharging reel
    9. Programmer: Setex T 838
    10. Stainless steel footboard to allow the operator all the normal loading and unloading operations of the fabrics
  3. Condition
    1. Machine in excellent condition, still working
