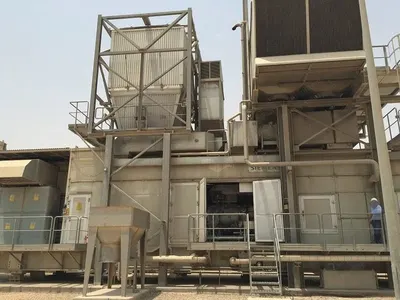

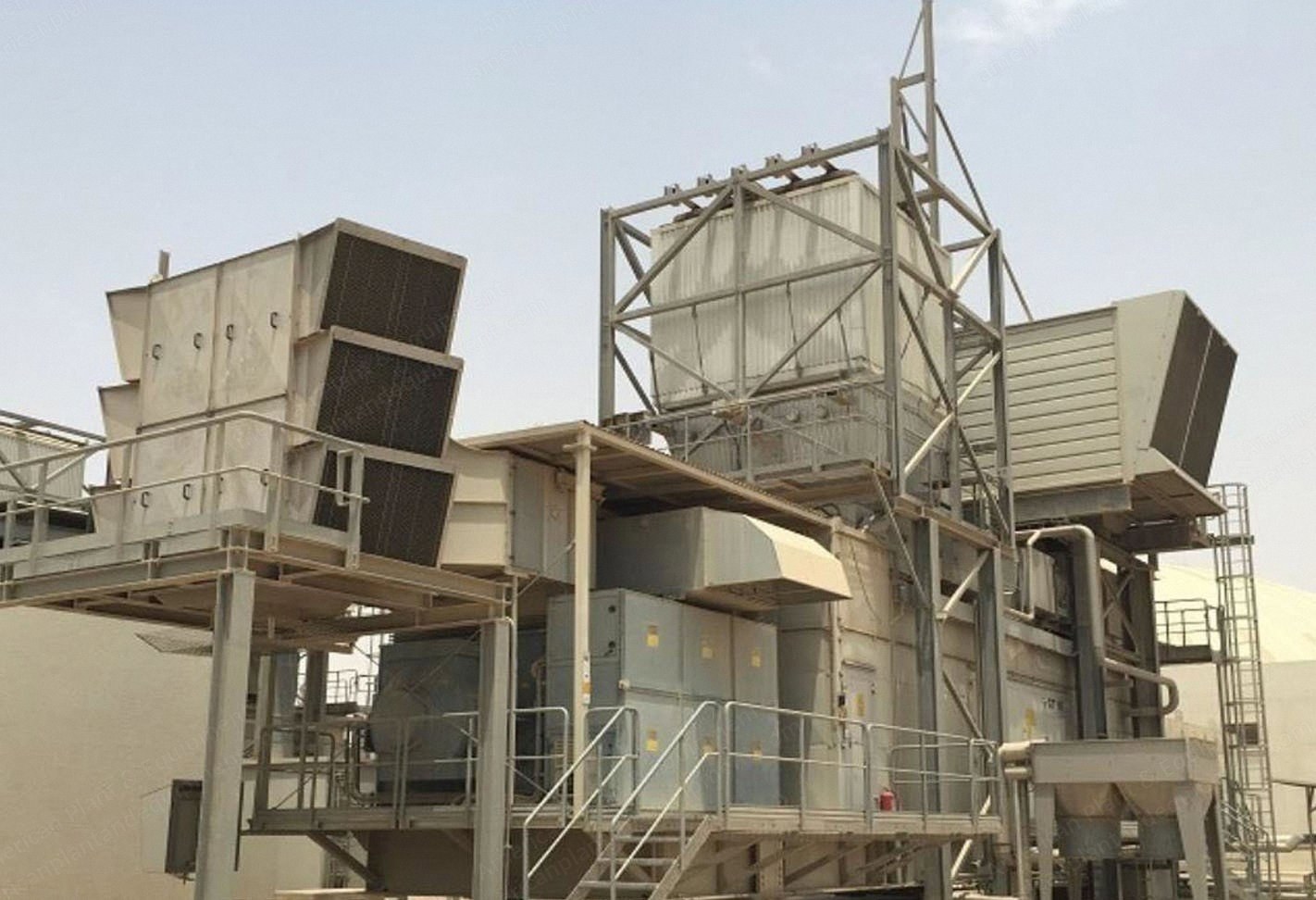

Siemens, SGT 600, 2012, 24.5 MW, 50 Hz, Simple Cycle Gas Turbine Plant

Siemens, SGT 600, 2012, 24.5 MW, 50 Hz, Simple Cycle Gas Turbine Plant Sold

Description

  1. Overview
    1. Four Siemens gas turbine units in simple cycle configuration.
    2. Units designated GT1 (2012), GT2 (2012), GT3 (2017), GT4 (2017).
    3. Predominantly operated on natural gas with standby diesel fuel; can be converted to alternative fuels such as heavy fuel oil depending on customer demand and needs.
    4. Powerplant has been shut down for the last year; incoming and outgoing cables to the units are disconnected, so start and load testing is not possible.
    5. The whole single cycle plant can be purchased separately but as one single cycle plant (dismantling to be considered).
  2. Specifications
    1. Rated capacity: 24.5 MW.
    2. Speed: 1500 rpm.
    3. Generator output: 11 kV.
    4. Frequency: 50 Hz.
    5. Available in single cycle.
    6. Emission ISO standard at 15% O2.
    7. Original dry low NOx (DLE) combustion chambers.
    8. Inertial filtration and single stage F9.
  3. Condition and Maintenance
    1. Frequently maintained according to European high standard by the OEM.
    2. Powerplant has been serviced by OEM and OEM approved workshops.
    3. Total service history record exists.
  4. Included Items
    1. Special tools for servicing the units are included.
    2. Step-up transformers and HV electrical cabinets will be included.
    3. Bustie transformer: capacity 33 kV/6.3 kV, 25 MVA, 50 Hz, made by Ettra Slovenia.
  5. Location and Logistics
    1. Assistance for dismantling and relocation by SGT600 professional is possible but is not included in the price.
