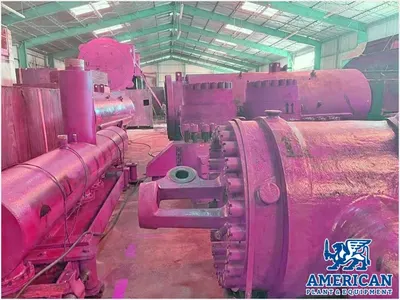

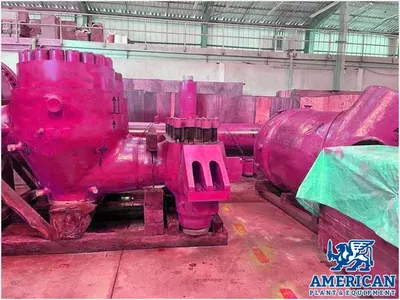

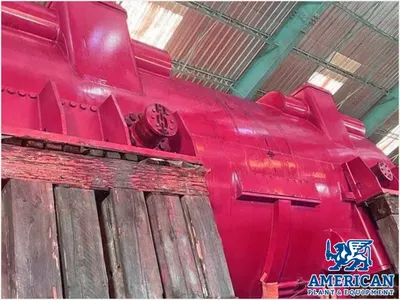

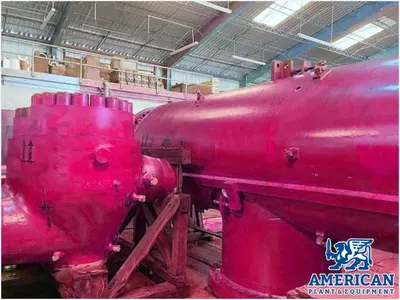

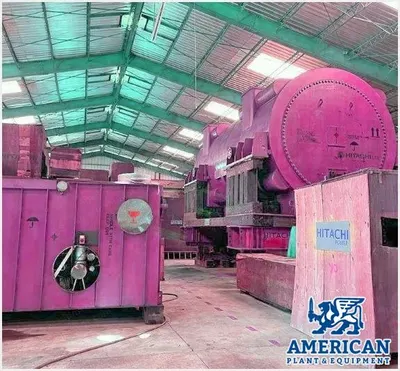

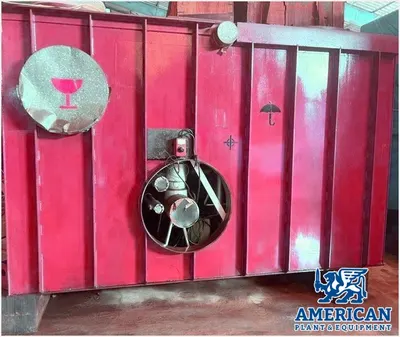

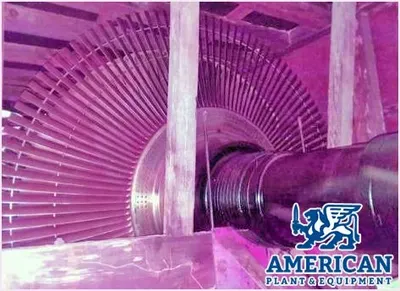

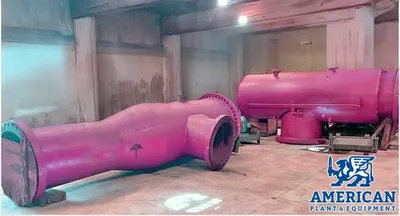

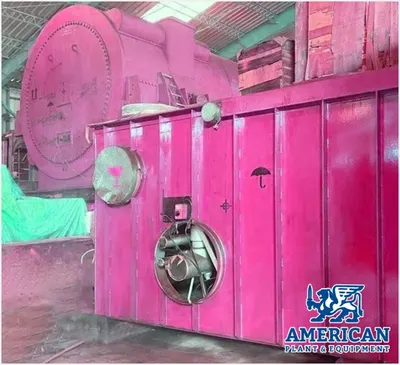

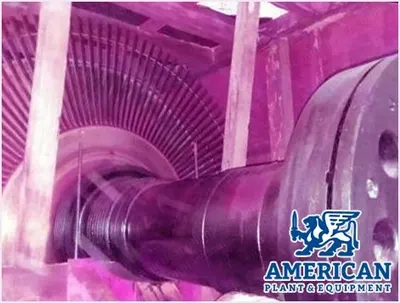

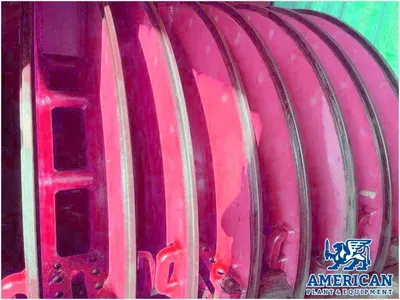

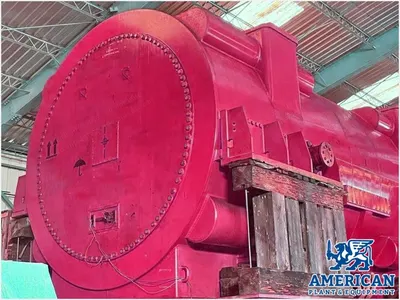

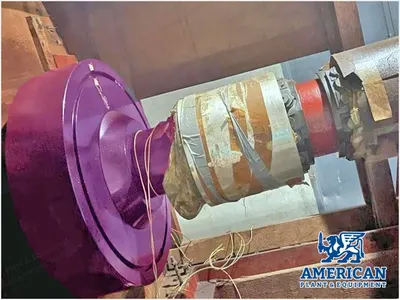

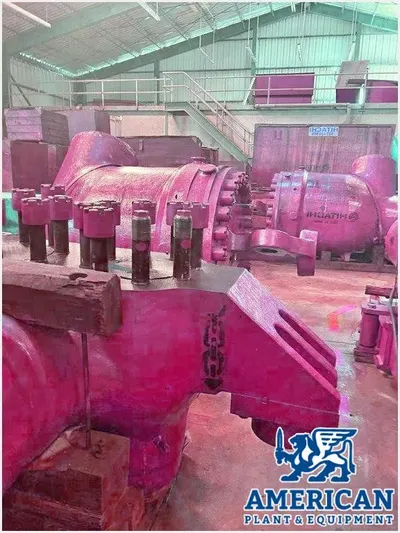

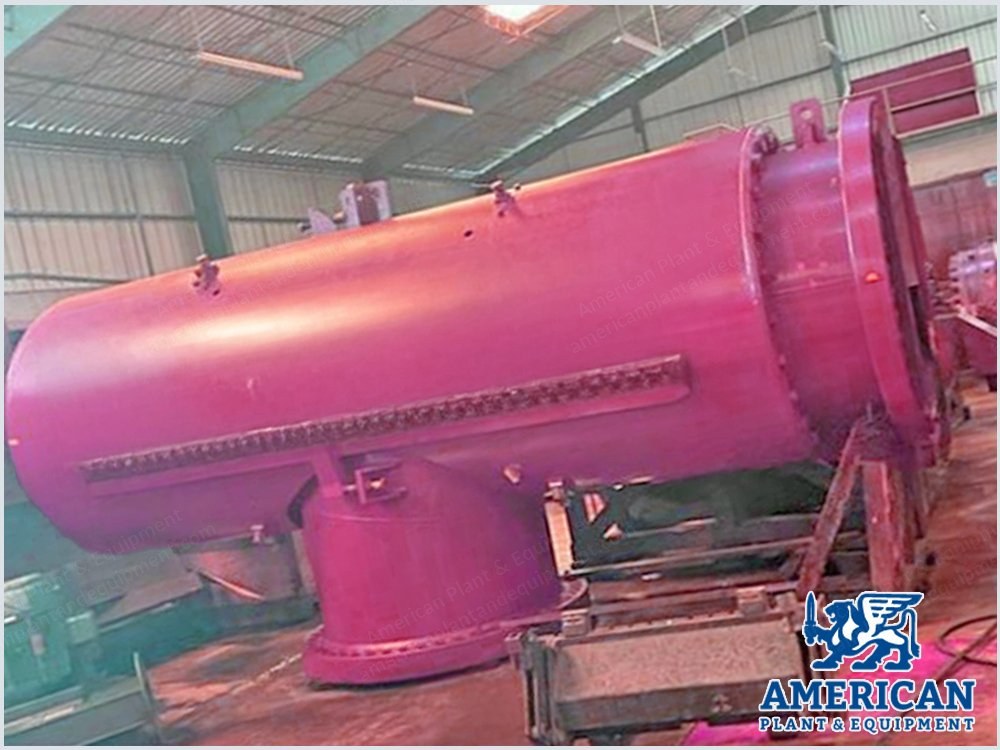

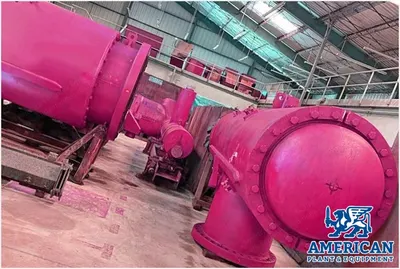

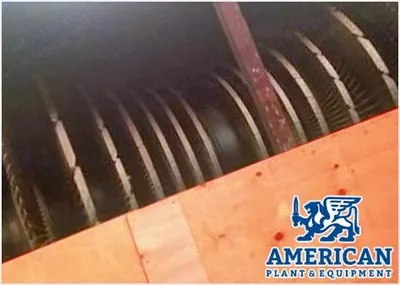

Description Overview Hitachi TC4F-26 steam turbine generator Nominal rating of 400 mw Maximum continuous rating of 450 mw Type TC4R-26 Inlet steam pressure of 2,400 psig Main steam temperature of 1,000°f Reheat steam temperature of 1,000°f Exhaust pressure of 2.5 inches hg abs Speed of 3,600 rpm 7 extractions Year built 1976 Specifications Brand: Hitachi Model: TC4F-26 Category: Generators Subcategory: Steam turbine Steam Turbine Details Number of stages: HP 6, IP 4, LP 7x four flow Last stage bucket height: 26 in Governor type: Fly ball with rotation pilot valve 2 main stop valves 4 control valves 2 combined reheat valves Casing: 3 number double wall construction Rotor: 3 number solid type Journal bearings: 4 number elliptical Thrust bearing: 1 number tapered-land type Shaft gland system: Steam seal with labyrinth packing Turbine governing device: Mechanical hydraulic governor Generator Details Generator type: TFLQQ-K totally enclosed, explosion proof, cylindrical rotor type AC generator with water cooled stator and hydrogen direct cooled rotor Outdoor type Rated capacity: 553,064 kva at 60 psig hydrogen, 0.85 power factor Rated output: 470,104 kw at 60 psig hydrogen Terminal voltage: 24,000 v 3 phases, 60 hz Double star connection Condition Unused
