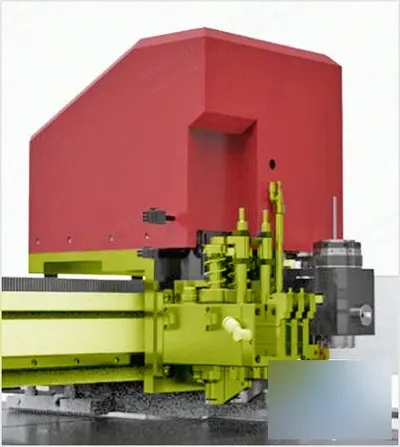

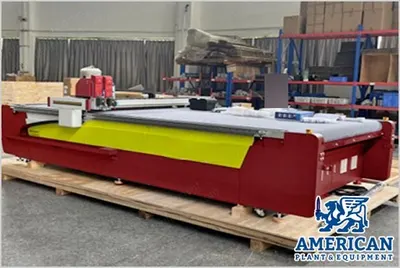

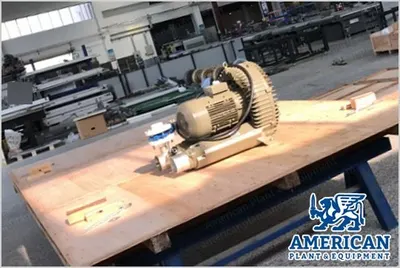

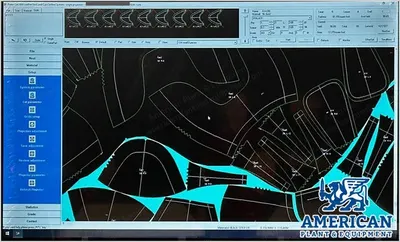

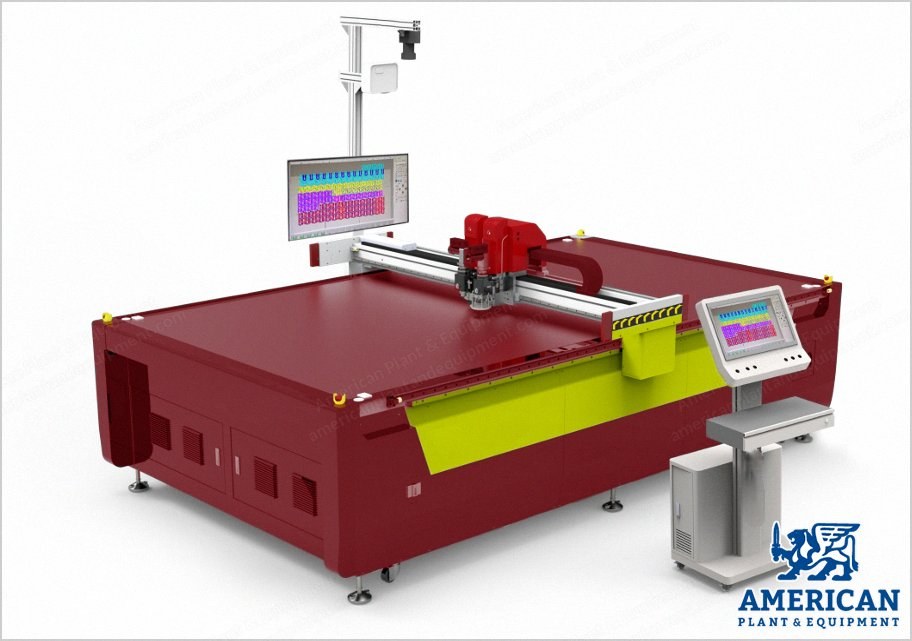

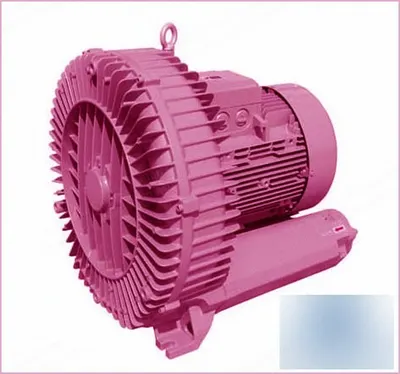

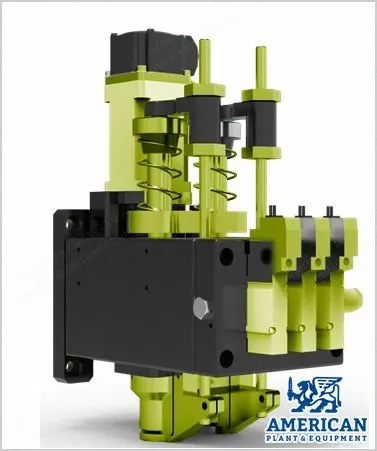

Description Overview Cnc cutting machine Pwcs genuine leather Automatic nesting system (permanent license) (optional) Hd camera for digitalizing the leather (optional) Cutting Area 2500mm (l) x 1600mm (w) fixed table with manual nesting Configuration (Included In Machine) Rzai cutter optimizer machine control software permanent license Standard module head for install the cutting tool Pot (pneumatic oscillating tool) cutting tool Dual pneumatic punching tool punching tool Drawing pen for drawing or marking Projector included Hd computer screen included Industrial computer, mouse and keyboard included Projector and camera shelf / stand included Computer operating table included Vacuum pump for fixing the material Tool box included Consumables Table mat, 1 piece Punch bits (φ0.8mm, 1mm, 1.2mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm), 22 pieces, 2 of each size Blades, 30 pieces Parameters Working area: 2,500mm (l) × 1,600mm (w) Machine size: 3,533mm (l) × 2,162mm (w) × 1,306mm (h) Packaging size: 3,500mm (l) × 2,280mm (w) × 1,600mm (h) Net weight: 826 kg Gross weight: 1130 kg Power: 9 kw Processing thickness: 0.1-10mm Tools: pneumatic oscillating tool, pen tool, punching tool Speed: 0-1200 mm/s Transmission interface: ethernet port and lan cable Voltage: 50 hz / three phase 380v±10% Compatible software: any dxf or plt formats supporting software, eg: coreldraw, auto cad Main Parts X/y/z/t motor: servo motor X/y/z/t driver: servo driver Mainboard: developed mother board Control software: self developed control software Applicable material: genuine leather, synthetic leather, pu, mesh fabrics, oxfords, textile, fabric, etc. Hold-down method: auto divisional vacuum system; vacuum pump comes with machine Resolution: 0.01 mm Control panel: resistive touch screen Installation Conditions Space occupation: 7.64㎡ 3 phase, 380v ±10%, 50hz
