Available for sale is a used Retech / Vecoplan model VH34/75 horizontal shredder powered by a 75 HP (55.9 kW) motor and supplied with a 30-foot-long vibratory infeed conveyor.
Retech / Vecoplan VH34/75 horizontal shredder.
75 HP (55.9 kW) with 30' vibratory infeed conveyor.

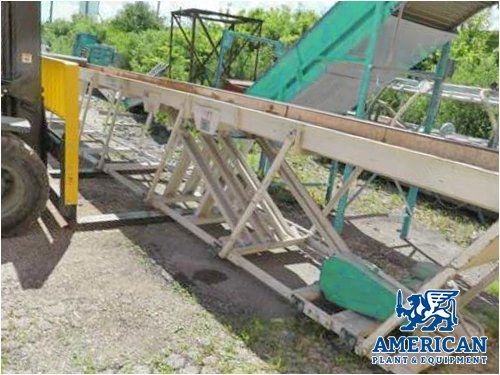

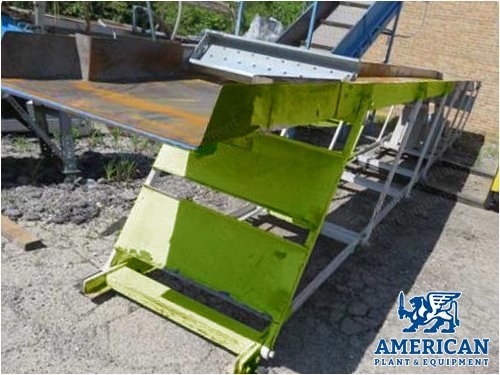

Model VR85/12 vibratory infeed conveyor; no controls for conveyor; built 2006.
Built in 2006, this heavy-duty horizontal shredder package is well suited for industrial recycling, wood waste reduction, manufacturing scrap processing, and other size-reduction applications.
Vecoplan is a recognized manufacturer of industrial shredding, size-reduction, conveying, and material-handling equipment used throughout the wood, plastics, recycling, biomass, waste-processing, and manufacturing industries. Retech equipment has also been widely utilized for demanding industrial shredding and recycling applications.
Machine Description

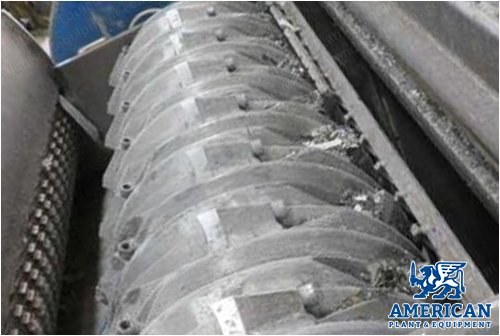

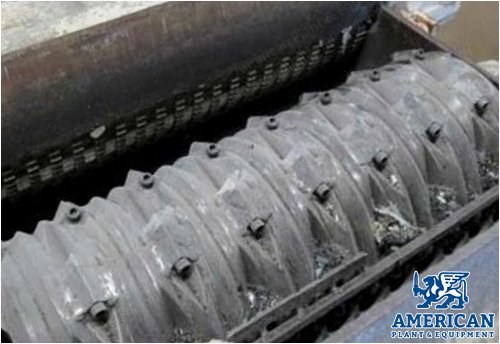

The shredder features a 5" x 34" feed opening and a 16" diameter rotor equipped with 44 cutters.
5" x 34" in-feed opening, 16" diameter 44 cutter rotor with a 390 RPM rotor speed.
The cutting rotor operates at approximately 390 RPM and is belt-driven by a 75 HP (55.9 kW), 460-volt, 1,185 RPM electric motor.
Rotor is belt driven by a 75 HP (55.9 kW), 460 volt, 1185 RPM motor.
Two powered infeed rollers help positively feed material into the cutting chamber and are driven by approximately 1 kW (1.3 hp) SEW-Eurodrive motors and gearboxes.
Two infeed rollers are powered by approximately 1 kW (1.3 hp) SEW Eurodrive motors and gearboxes. 41.5" in-feed height. 2" holes screen installed.

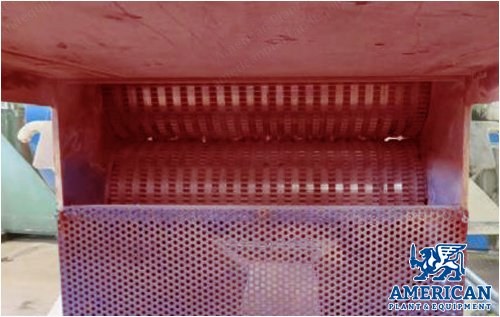

A 2" hole screen is currently installed to control discharged particle size, with processed material exiting through a gravity discharge.
Gravity discharge.

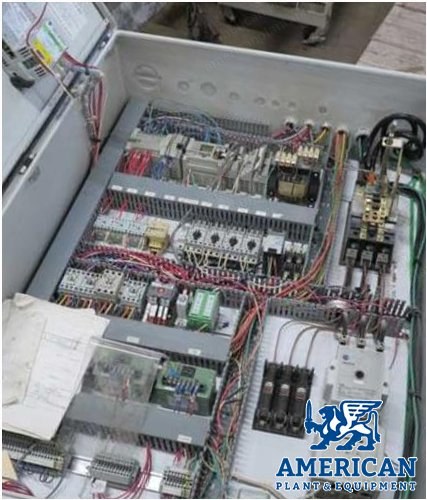

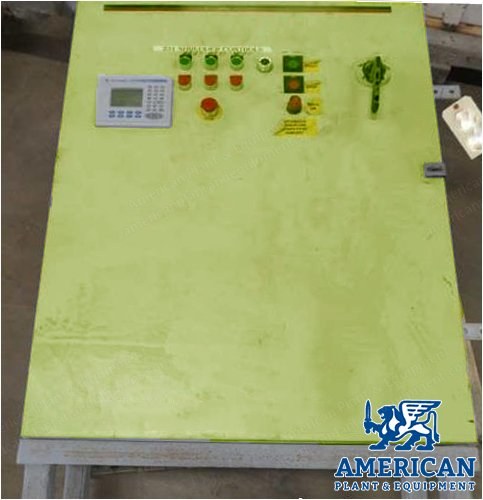

The shredder has an approximately 41.5" infeed height and includes a stand-alone starter/control panel.
