Centrica Business Solutions, MTU 12V4000 L33, 2023, 1262 kW Trigeneration Plant, 50 Hz, Stamford Generator

Centrica Business Solutions, MTU 12V4000 L33, 2023, 1262 kW Trigeneration Plant, 50 Hz, Stamford Generator

Description

  1. Overview
    1. Machine type: Trigeneration plant 1,262 kW (1,692.4 hp)
    2. Brand: Centrica Business Solutions
    3. Model: MTU 12V4000 L33
    4. Year of construction: 2023
    5. Condition: Used
    6. Functionality: Unexamined
    7. Type of input current: Three-phase
    8. Type of cooling: Water
    9. Plant assembled and never put into operation
    10. Cogeneration unit MTU 12V4000 L33 gas generator set
    11. Condition: New – 0 hours
    12. Enclosure: Enclosed container
    13. Update: 27.01.2026
  2. Dimensions
    1. Total height: 5 mm (0.2 in)
    2. Total length: 25 mm (1.0 in)
    3. Total width: 3 mm (0.1 in)
    4. Dimensions (L x W x H): 12,800 / 2,700 / 2,900 mm
  3. Performance
    1. Rated electrical power: 1,262 kW (1,692.4 hp)
    2. Thermal power: 1,355 kW (1,817.1 hp)
    3. Electrical efficiency (cos φ = 1.0): 42.1%
    4. Thermal efficiency: 45.2%
    5. Total efficiency (full heat recovery): 87.3%
  4. Fuel Consumption
    1. At 100% load: 299 Nm³/h
    2. At 75% load: 232 Nm³/h
    3. At 50% load: 167 Nm³/h
  5. Equipment Designation
    1. Brand: MTU – Centrica Business Solutions SRL
    2. Equipment designation: Type: E1265 250 NOx L33 natural gas CHP unit
    3. Configuration: Containerized
    4. Rated current: 1,935 kVA
  6. Engine
    1. Engine: Genset Rolls Royce MTU 12V4000L33
    2. Number of cylinders: V12
    3. Max engine power: 1,320 kW (1,770.1 hp)
  7. Generator
    1. Generator: Stamford
    2. Model: PE734E-312
    3. Type: Three-phase, synchronous, four-pole, brushless
    4. Rated voltage: 400 V
    5. Frequency: 50 Hz
  8. Absorption Unit

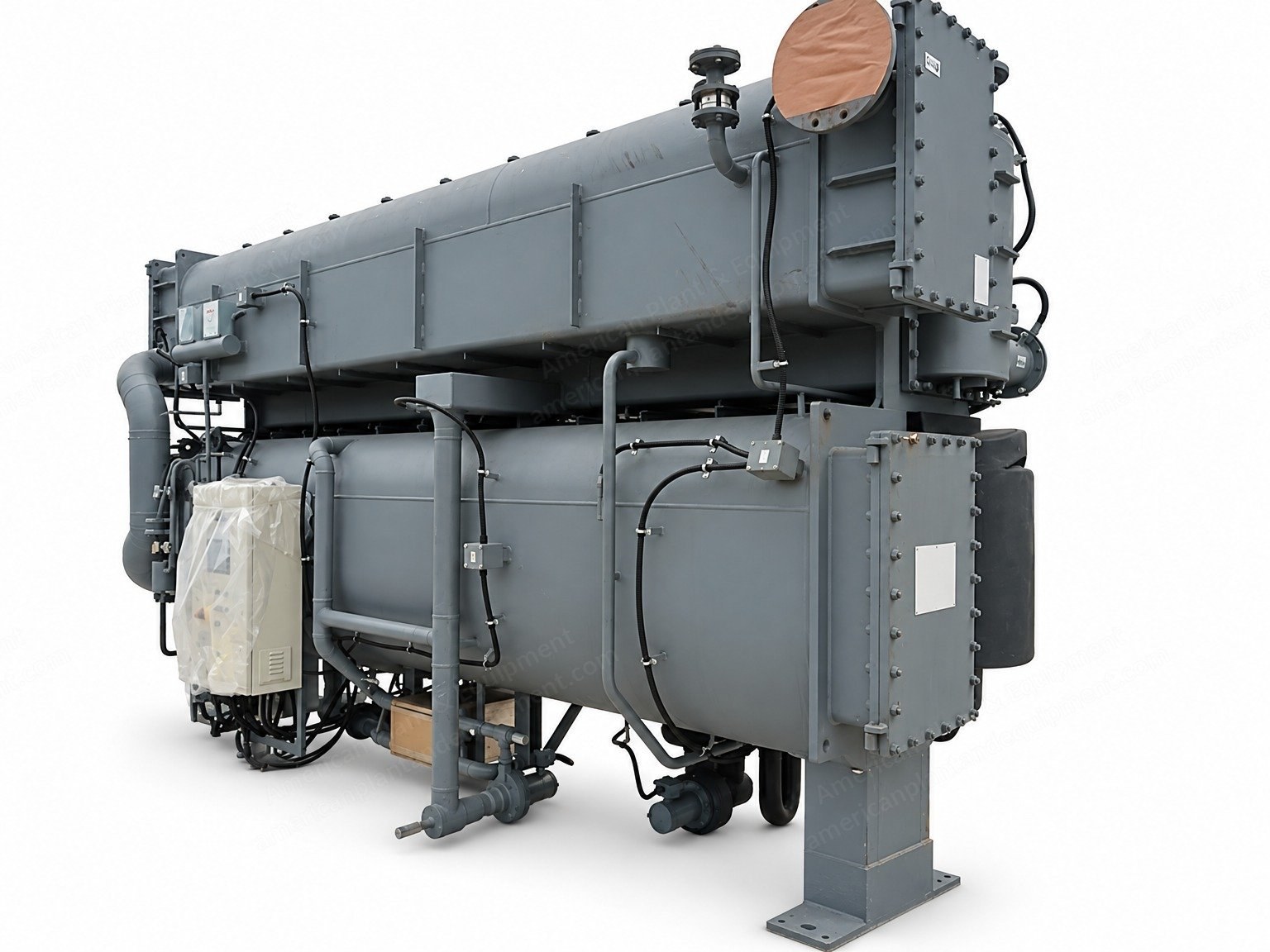

    1. Absorption unit Carrier 16LJ-F41
    2. Condition: New – 0 hours
    3. Enclosure: Enclosed container
    4. Capacity: 1,178 kW (1,579.7 hp)
  9. Cooling System
    1. Flow rate: 56.4 L/sec
    2. Pressure: 45 kPa
    3. Connection (DIN): 8” (inch)
    4. Volume: 0.48 m³ (17.0 cu ft)
  10. Heat Rejection System
    1. Flow rate: 93.1 L/sec
    2. Pressure: 117 kPa
    3. Connection (DIN): 10” (inch)
    4. Volume: 1.39 m³ (49.1 cu ft)
    5. Dimensions (L x H x W): 5,330 x 3,080 x 1,690 mm
    6. Weight: 13,700 kg (30,203 lb)
  11. Evaporative Cooling Towers
    1. Evaporative cooling towers: No. 2
    2. Condition: New – 0 hours
  12. Included Equipment
    1. Documentation/manual
    2. Rotational speed infinitely variable
  13. Further Specifications
    1. Quantity: 1
