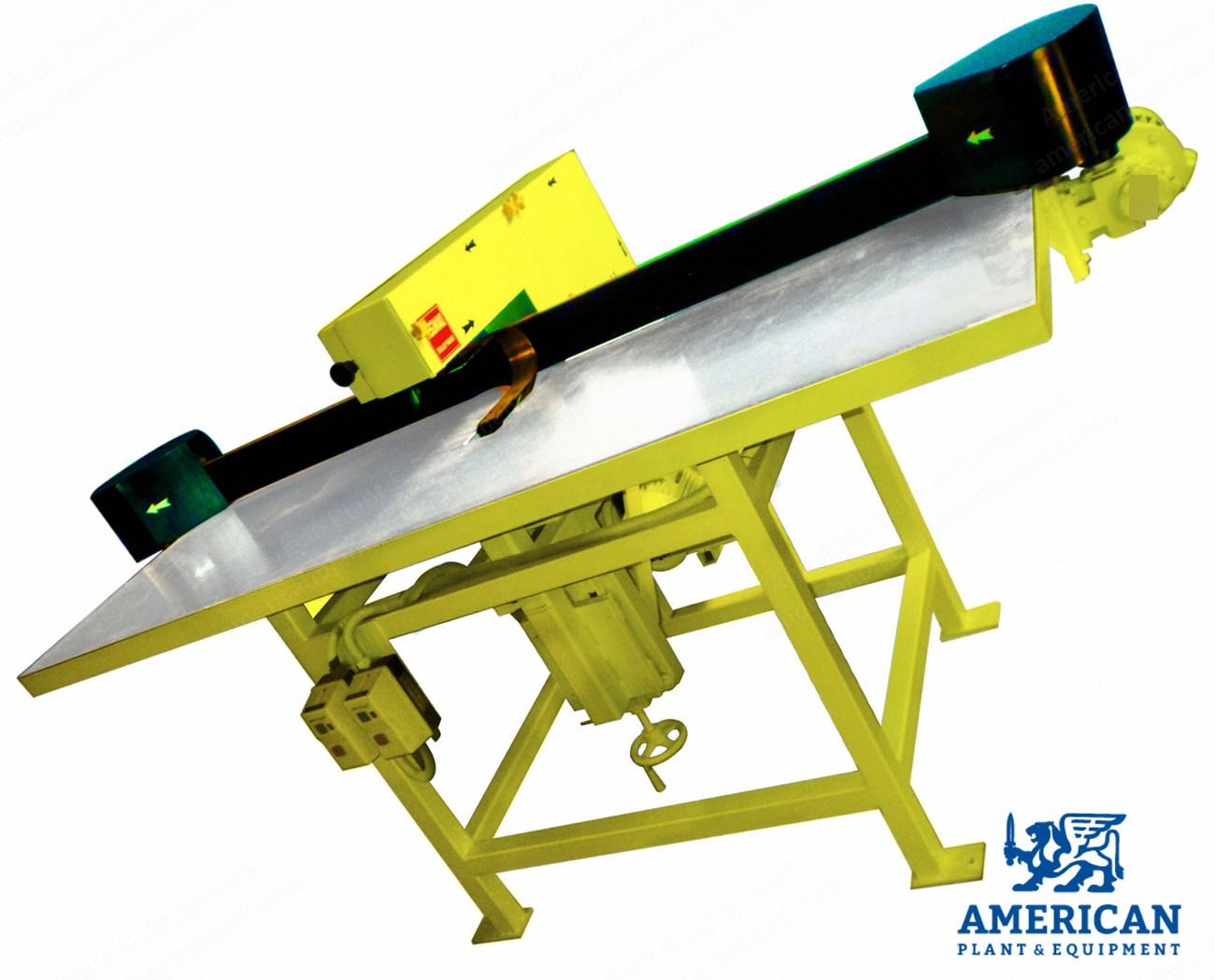

NovaStar, FN484, Foam Cutting Machine (New)

NovaStar, FN484, Foam Cutting Machine

Description

  1. Overview
    1. Edge nose foam cutting machine designed for pillow production.
    2. Produces foam pieces with a smooth, high-quality finish.
    3. Capable of cutting 700 to 1000 pieces per 8-hour shift.
    4. Cutting blade is fully protected to minimize risk during operation.
    5. Cutting table can be adjusted in height relative to the blade for flexibility.
    6. Compact design requiring a space of 2.5 meters by 1.5 meters.
    7. Integrated electric panel with a push-button station for easy control.
  2. Technical Specifications
    1. Material: Flexible PU foam.
    2. Cutting thickness: Adjustable between 75mm to 125mm (fixed as specified).
    3. Motor power: 1.25 hp for cutting operations.
    4. Machine dimensions: 2.5 meters x 1.5 meters.
  3. Electrical Standards
    1. Voltage: 220V / 240V.
    2. Frequency: 60Hz.
    3. Phase: Single-phase.
  4. Additional Features
    1. High-speed motor: Uses a 25 hp motor to shred waste foam material into sizes ranging from 10mm to 25mm, ensuring consistent and efficient operation.
    2. Shred size adjustment: Shred size can be easily modified by rotating the vertical bolts on the top cover.
  5. Application
    1. Versatile for various applications where edge rounding of foam is required, including but not limited to the production of pillows and other foam products.
  6. Order Specifications
    1. Foam thickness options: 75mm to 125mm, to be specified with the order.
    2. Electric requirements: 1.25 hp motor for cutting operations.
