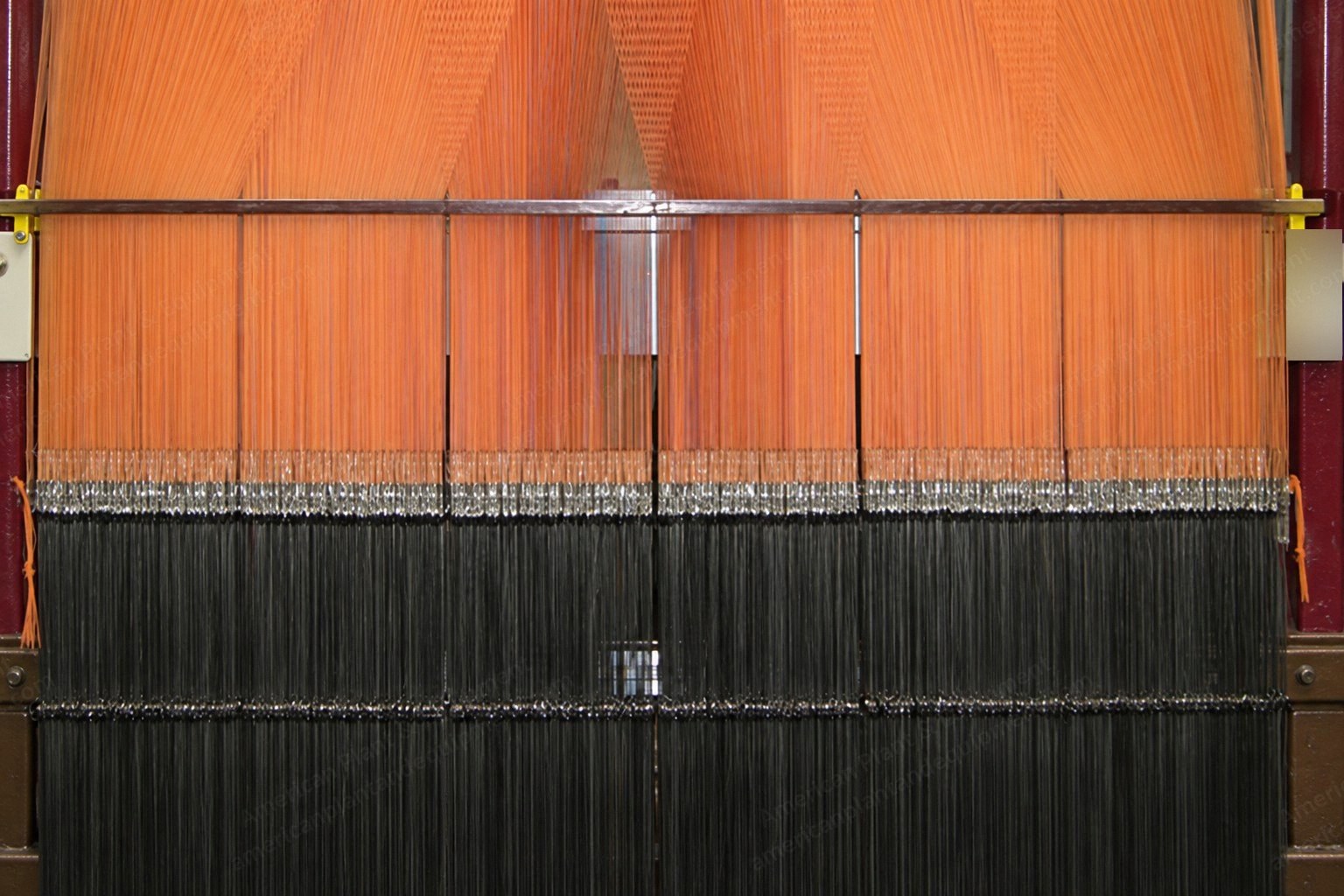

NovaStar, NF200, Jacquard Harness Set for a 1,150 mm Label Weaving Loom, New, Satin, 1,152 Hooks, 11,626 Ends (New)

Overview

1. New, made to order complete jacquard harness set (pavilion) for a label weaving loom fitted with an electronic jacquard head.

2. Satin harness, 11,626 total ends.

3. Supplied complete with harness cords, heddles and comber boards.

4. The pulley set is not included.

Loom the Harness Fits

1. Loom type: narrow fabric label weaving loom.

2. Reed width: 1,150 mm (45.3 in).

3. Jacquard head: electronic, 1,152 hooks.

4. Comber board pattern: 1,536 holes.

Harness Specification

1. Weave: satin.

2. Total ends: 11,626.

3. Ends arrangement: FC14 + 36 + 1,152 x 10 + 36 + FC20.

4. Ends per cm: 109.20 (277.4 per in).

5. Levelled on simulator.

Scope of Supply

1. Harness cord for high speed loom.

2. Upper comber board, red fiber board 10 mm (0.39 in), 1,536 holes.

3. Lower comber board, 11,626 holes, ground.

4. Jacquard healds, nickel plated, 400 mm (15.7 in), out of centre eye (150 + 250).

5. PVC tubes, 130 mm (5.1 in).

6. Springs pull down system, load for 5 repeats to the loom builder's diagram, to be confirmed against the 10 repeat arrangement.

7. Lower frame to connect the metal springs pull down system.

8. The pulley set is not included.

Condition and Supply

1. Condition: new, made to order.

2. Quantity: 1 set.

3. Delivery: 4 weeks after the down payment is received.

4. Packing: 1 wooden OFB box.

5. Customs HS code: 8448.49.00.
