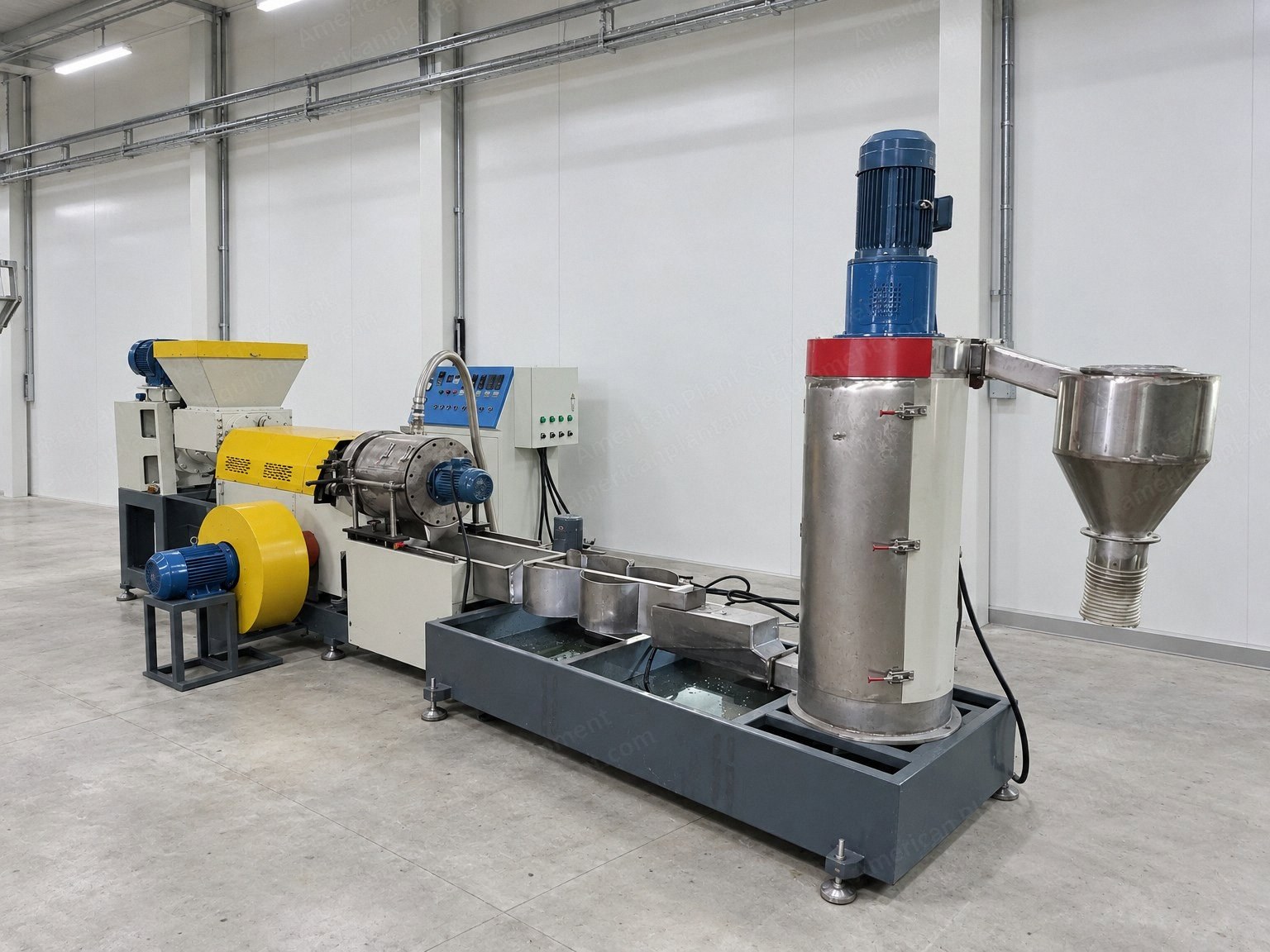

NovaStar, CZ137, Die Face Cutter Plastic Extruder, Water Ring Hot Cut Pelletizer, 200 to 500 kg/h (New)

NovaStar, CZ137, Die Face Cutter Plastic Extruder, Water Ring Hot Cut Pelletizer, 200 to 500 kg/h

Description

  1. Overview
    1. New die face cutter plastic extruder, a water ring hot cut granulator and pelletizer, built to order.
    2. Recycles PP and PE film, woven bags, ABS, PS and PC.
    3. Compared with a noodle type granulator, the die face cutter saves labor and makes less scrap in production, and the granule is more compact and uniform.
    4. Offered in three sizes, 200, 300 and 500 kg/h.
  2. 200 kg/h (440.9 lb/h)
    1. Screw 120-120 mm (4.7-4.7 in).
    2. Motor 55-30 kW (73.8-40.2 hp).
    3. Gear box 250-225.
    4. 1 degassing stage.
    5. Hydraulic mesh changer.
  3. 300 kg/h (661.4 lb/h)
    1. Screw 140-140 mm (5.5-5.5 in).
    2. Motor 55-30 kW (73.8-40.2 hp).
    3. Gear box 280-225.
    4. 1 degassing stage.
    5. Hydraulic mesh changer.
  4. 500 kg/h (1,102.3 lb/h)
    1. Screw 200-200 mm (7.9-7.9 in).
    2. Motor 110-55 kW (147.5-73.8 hp).
    3. Gear box 375-315.
    4. 1 degassing stage.
    5. Hydraulic mesh changer.
  5. Supply
    1. New machine, built to order.
    2. Electrical supply built to the buyer's requirement; the standard US supply is 480 V, 60 Hz, 3 phase.
