NovaStar, MH279, New, Complete Belt Conveyor System, 7 x 1,000 m, 900 mm Steel Cord Chevron Belt, 300 t/h, with Drives and Controls (New)

NovaStar, MH279, New, Complete Belt Conveyor System, 7 x 1,000 m, 900 mm Steel Cord Chevron Belt, 300 t/h, with Drives and Controls

Description

  1. Overview
    1. New complete inclined belt conveyor system for mining: 7 conveyors of 1,000 m (3,281 ft) each
    2. Designed for 300 t/h of lump rock (10 to 50 mm, bulk density about 2.5 t/m³) at a 20° incline, outdoor above ground
    3. Single conveyors of 1,000 m or 500 m (1,640 ft) also available

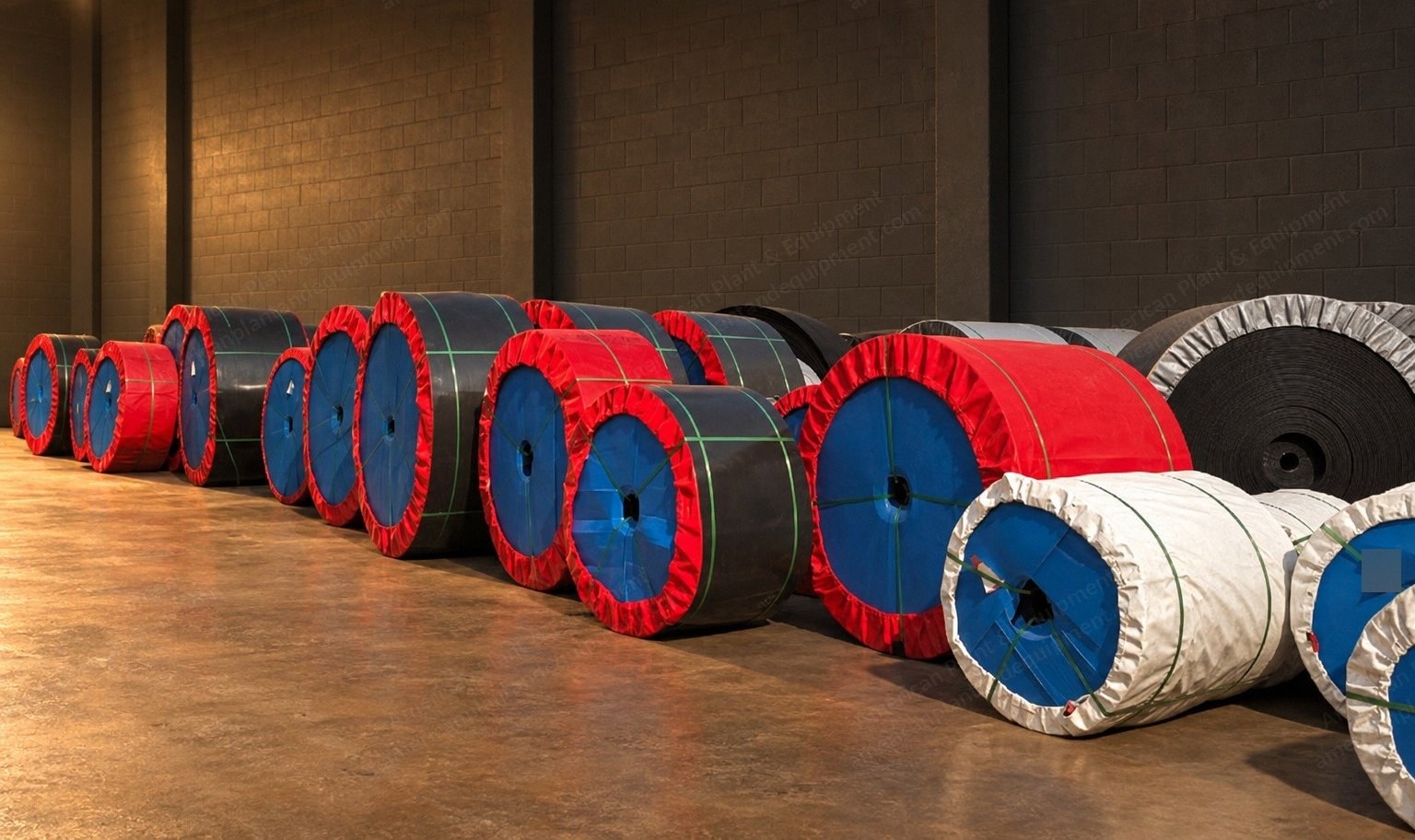

  2. Conveyor Belt
    1. Steel cord belt, ST800 or ST1000, 900 mm (35.4 in) wide
    2. 5 mm + 5 mm (0.2 in + 0.2 in) covers, RMA Grade I rubber

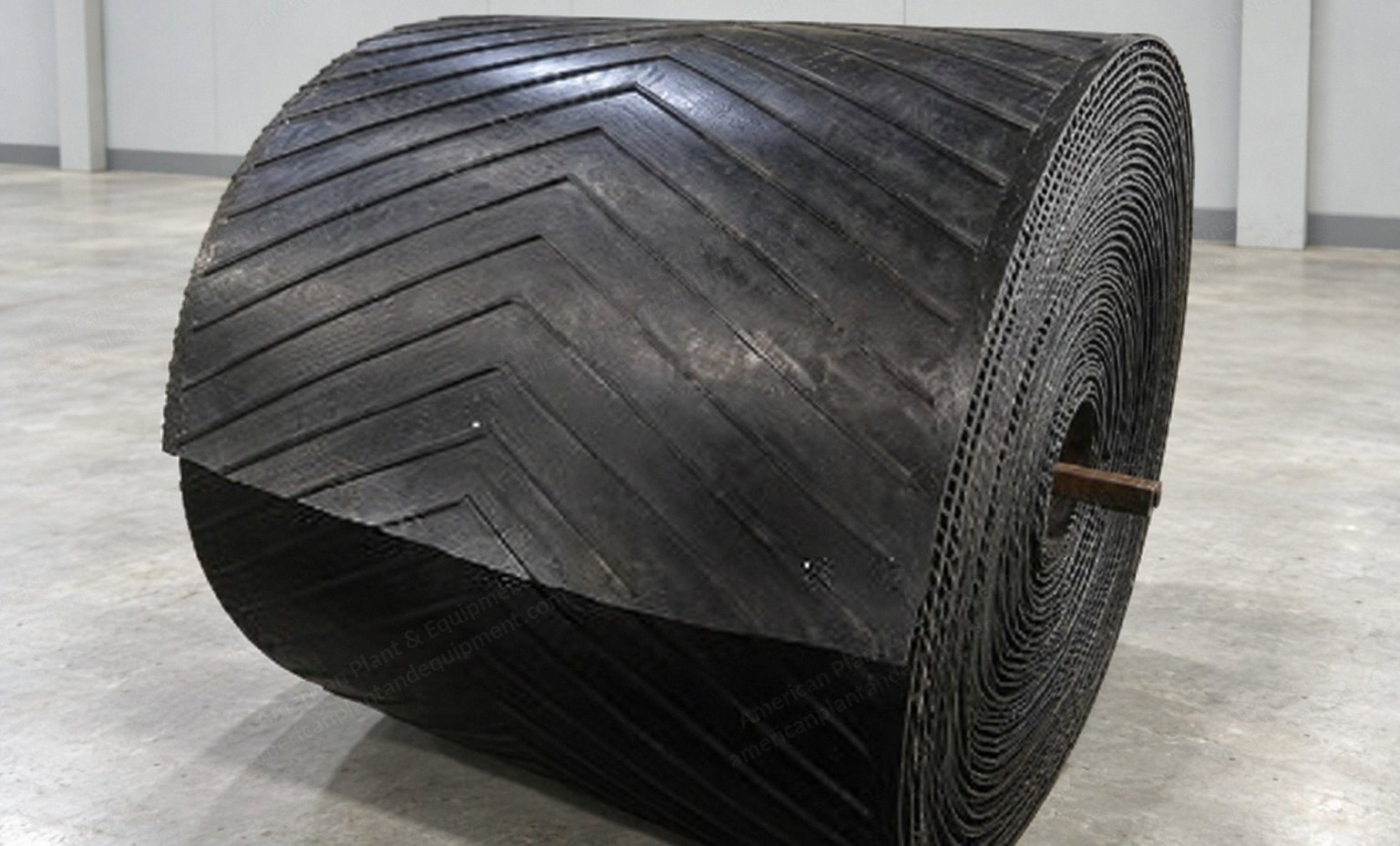

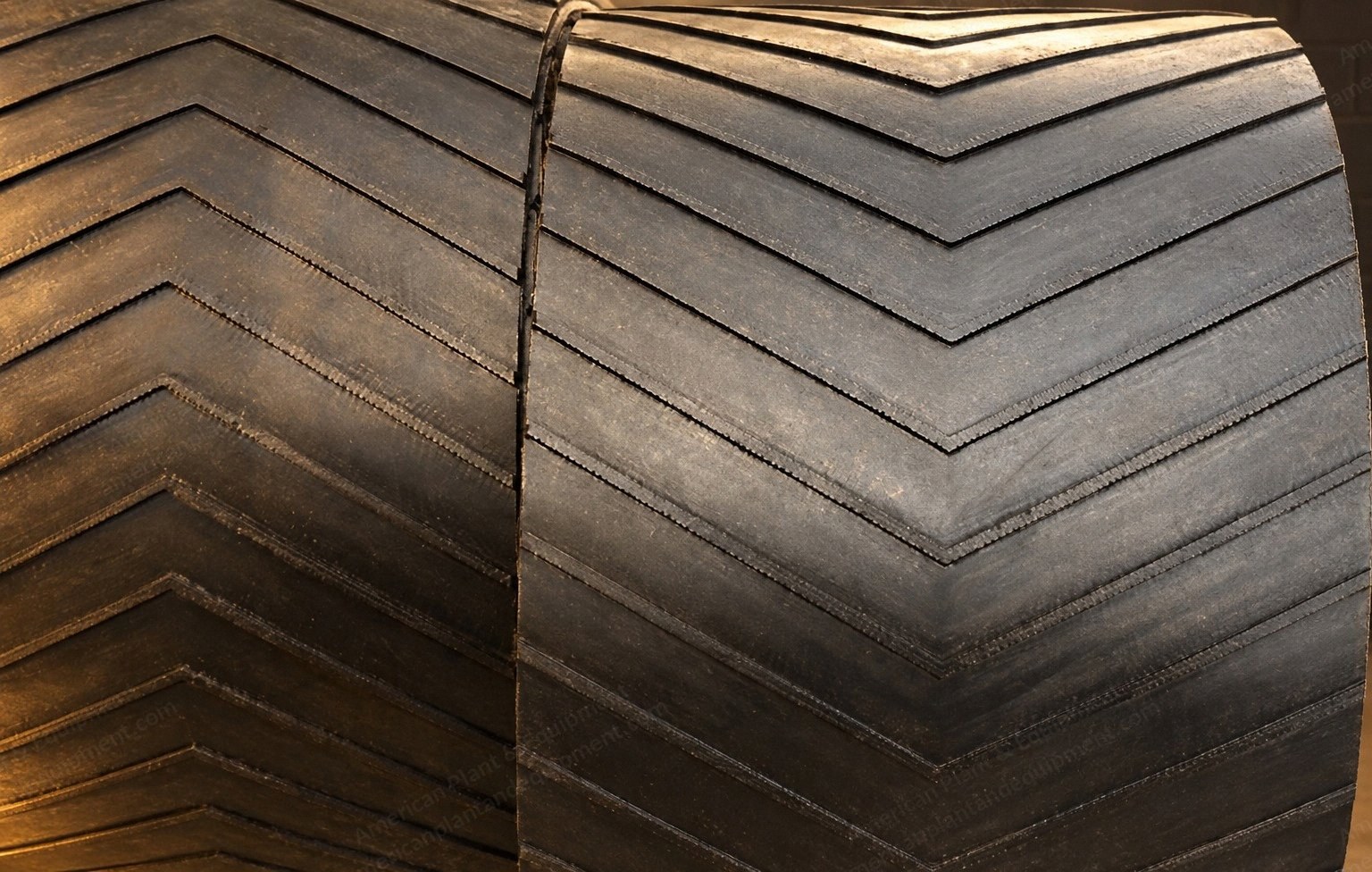

    3. 10 mm chevron (CH10) top surface for inclined conveying
  3. Equipment per 1,000 m Conveyor
    1. Ground-mounted steel frame for the 20° incline

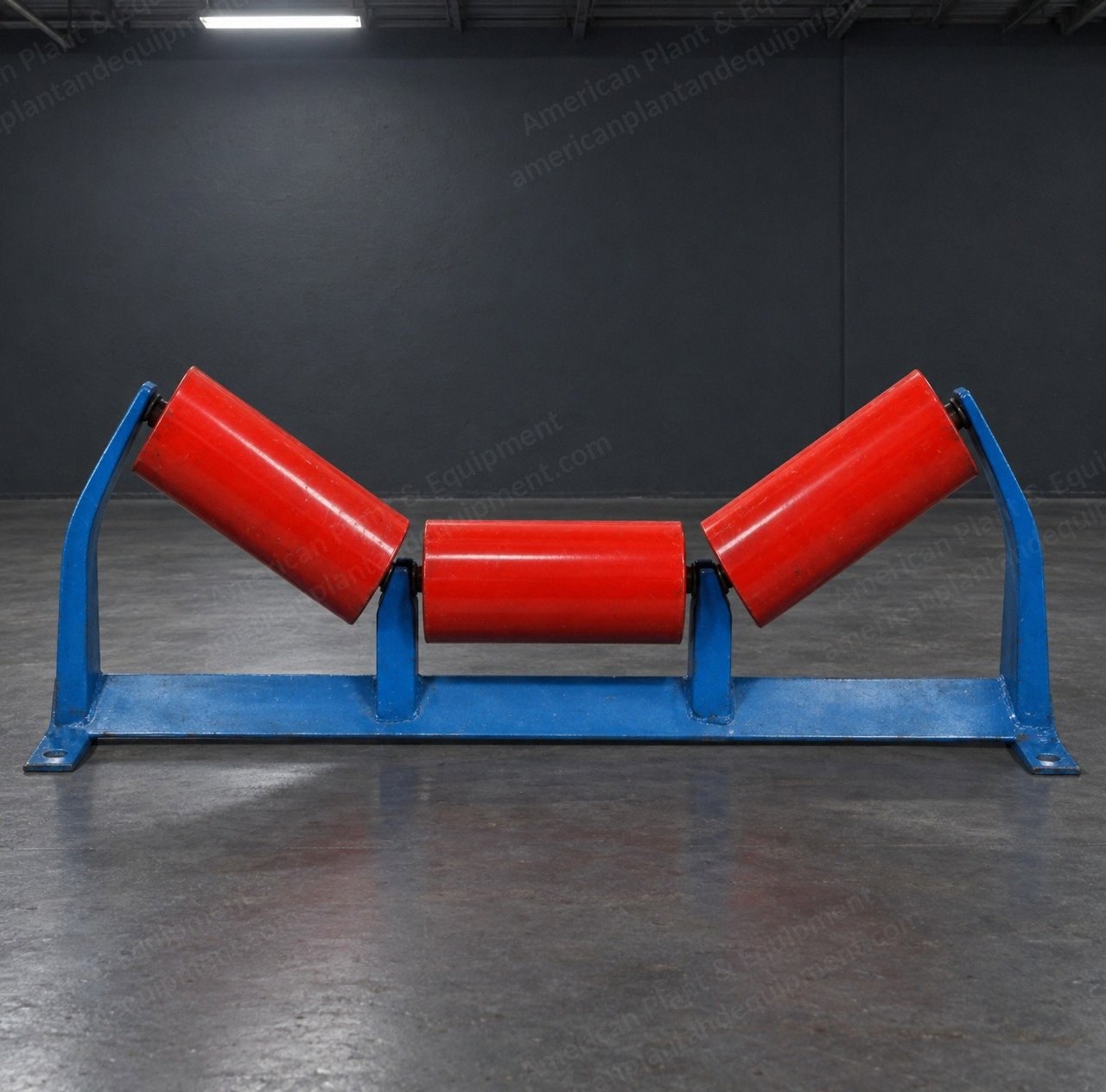

    2. 834 carrying idler sets and 334 return idler sets

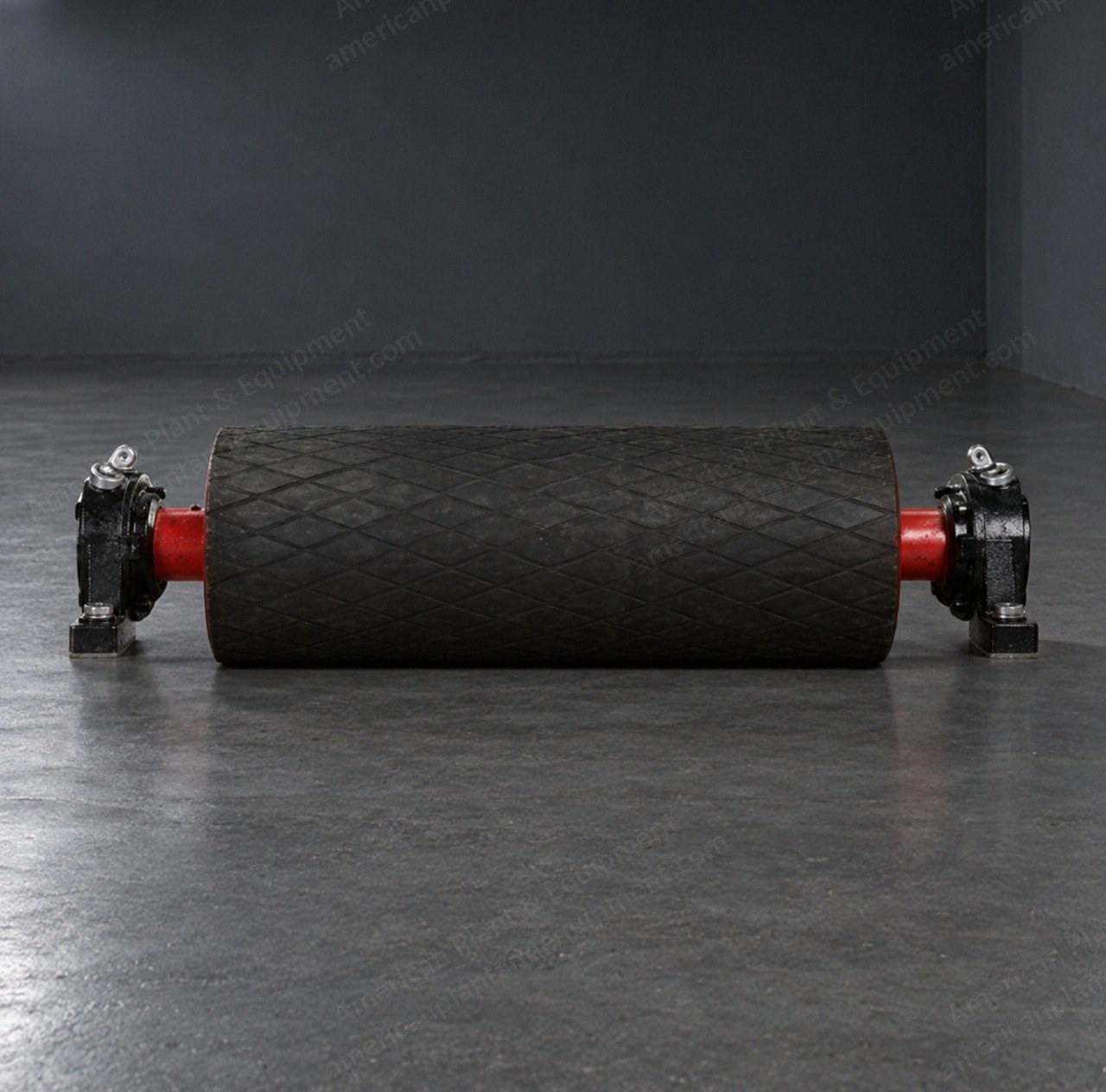

    3. Drive pulley and 4 other pulleys
    4. 2 drive motors, 440 V / 60 Hz / 3 phase, with matched gearboxes and variable frequency drives
    5. Backstop and brake on each drive

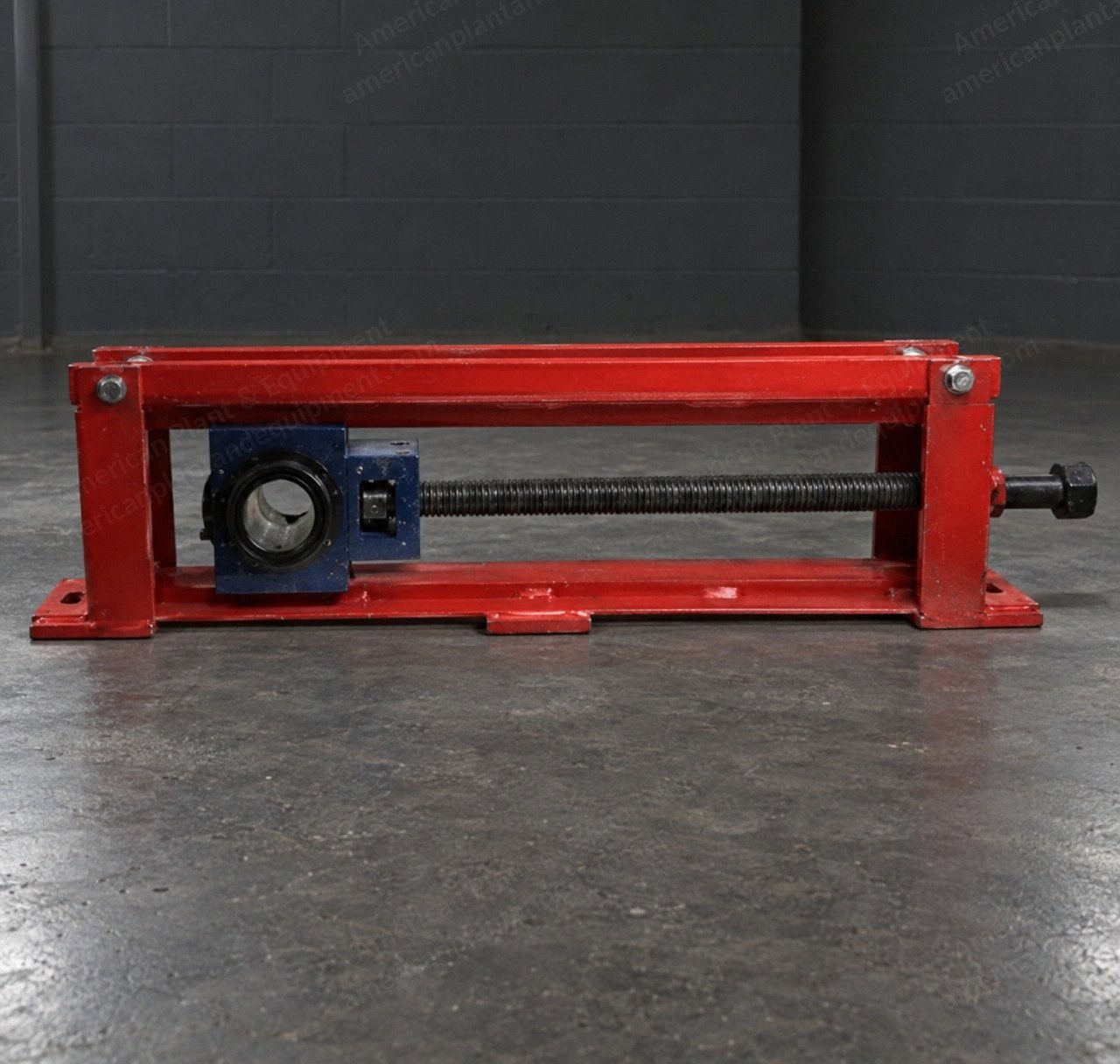

    6. Gravity or winch take-up
    7. Inlet and discharge chutes
    8. Complete electrical control panel
  4. Terms
    1. Export packing
    2. 1-year warranty
