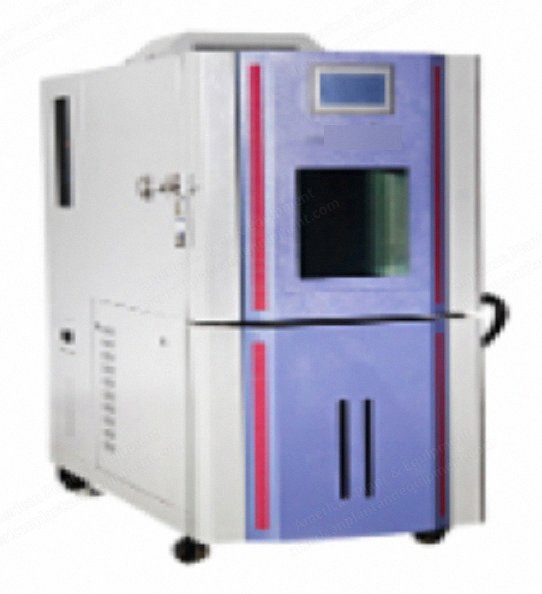

NovaStar, EC155, Temperature and Humidity Test Chamber, 150 L Capacity, -40 to 150C (New)

NovaStar, EC155, Temperature and Humidity Test Chamber, 150 L Capacity, -40 to 150C

Description

  1. Overview
    1. Temperature and humidity test chamber is a 150 L test chamber equipped with a wide range of temperatures (-40 °C to 150 °C) and relative humidity levels (20 % to 98 %).
    2. Designed to meet comprehensive test conditions of temperature and humidity to test products for their environmental adaptability.
  2. Features
    1. Extensive temperature and humidity range.
    2. High testing precision (optimized parameter selection).
    3. Touch screen panel (easy control of test parameters).
    4. Energy efficient refrigeration with electronic valve system expansion.
    5. Separate water and electricity connection.
    6. USB compatible.
    7. Safety protection measures (alarm indication).
  3. Specifications
    1. Chamber capacity: 150 L.
    2. Interior dimensions (W x H x D): 600 x 600 x 460 mm.
    3. Exterior dimensions (W x H x D): 880 x 1730 x 1400 mm.
    4. Temperature range: -20 °C to 150 °C.
    5. Constant temperature: ± 0.5 °C.
    6. Temperature uniformity: ± 2.0 °C.
    7. Humidity range: 20 % to 98 % R.H.
    8. Constant humidity: ± 2.5 % R.H.
    9. Humidity uniformity: ± 3.0 % R.H.
    10. Heat up time (within 45 min): -40 °C to 100 °C.
    11. Cool down time (within 60 min): 20 °C to -40 °C.
    12. Ambient temperature: 5 °C to 35 °C.
    13. Power supply: AC 380 V ± 10 % 50 Hz or 220 V 50/60 Hz.
    14. Power output: 7.5 kW.
    15. Refrigeration system (standard): air cooled.
    16. Refrigeration system (optional): water cooled.
    17. Compressor: hermetic compressor system.
    18. Refrigeration stage: single-stage refrigeration.
    19. Refrigerant: CFC-free refrigerant (HFC-507 / HFC-23).
    20. Control system: balanced temperature and humidity control system.
    21. Screen panel controller: 7-inch LCD touch panel.
    22. Operation mode: program or setting.
    23. Memory capacity: 120 programs, 1200 steps, all repeat 999 cycles, part repeat 99 cycles.
    24. Interior material: stainless steel plate (SUS 304).
    25. Exterior material: baked painting steel or stainless steel (SUS304).
    26. Insulation material: rigid polyurethane foam and glass fiber wool.
    27. Weight: 250 kg.
  4. Standard Accessories
    1. Sight window.
    2. Cable port (port 50 mm).
    3. Shelves (2).
    4. Chamber lamp.
    5. Power cable.
  5. Applications
    1. Used in industrial and research institutes for paper, plastic, electronics, automotive, pharmaceuticals equipment to improve product reliability, environmental adaptability and service life.
  6. Standard Safety Devices
    1. No fuse breaker.
    2. Over pressure, over heat and over current protection for compressor.
    3. Over temperature protect.
    4. Over load protect of blower.
    5. Dry heat protection.
