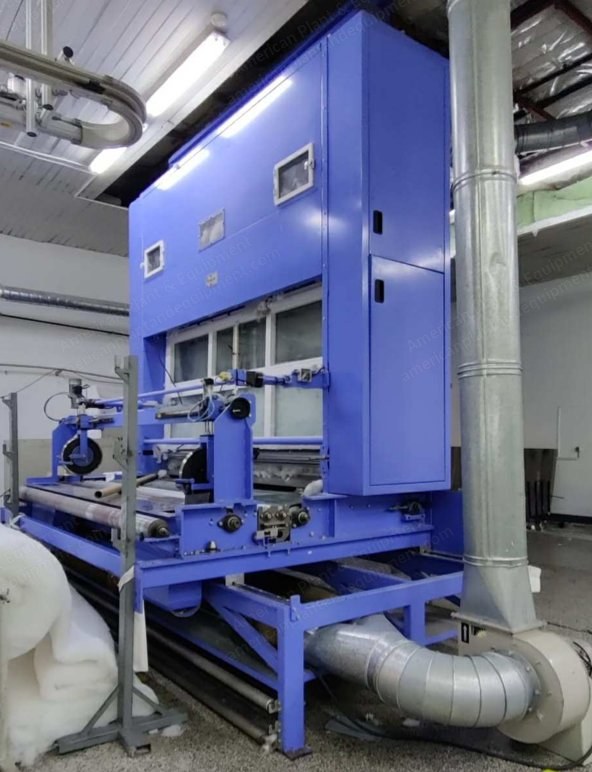

Masias, SAD 4 T/3000, 2004, Direct Feeding Line, 3000mm Width

Masias, SAD 4 T/3000, 2004, Direct Feeding Line, 3000mm Width

Description

  1. Overview
    1. High production direct feeding system made by Masias on 2004
    2. Suitable for the production of quilts (duvets and mattresses) and/or wadding
    3. Also suitable for some needlepunched special products for furniture, mattresses, and transport protection
  2. Bale Opener
    1. Year 2004, model CR-150, 1500 mm width
    2. Big hopper feeder with feeding conveyor and big reserve unit for bales opening and blending in the chamber
    3. Spiked inclined conveyor, cleaning roll, and dropping roll at the exit
  3. Fine Opener
    1. Year 2004, model AD-160-TP, 1500 mm width
    2. Horizontal feeding conveyor onto a feeding roll with table dish, wired drum, and fixcard opening bottom device for extreme opening of the fibers
  4. Transport Fan
    1. Year 2004
    2. Fan to transport the opened fibers on top of the sad machine
  5. Sad 4t/3000 Direct Feeding System
    1. Year 2004, model SAD 4 T/3000, 3000 mm width
    2. Direct feeding system unit with fiber reception on top, vertical volumetric silo forming room, fiber combing devices, compacting wall, and take up onto a horizontal conveyor
    3. A couple of big circular regulated blades cut the extra width fiber forming and a suction device recovers the extra fiber back again to the bale opener
    4. Automatic dynamic scale by means of loadcells
    5. Horizontal exit conveyor to transport the fibers onto the next machine of the line, if quilter, oven, or others
    6. Useful width at the exit 3000 mm
    7. The sad machine moves laterally displacement as per need if a quilter is after the machine
    8. Fully electronic controlled by PLC, inverters, and touchscreen
    9. High production machine, depends on fiber type and grammages worked
    10. Year of manufacture 2004
    11. Excellent conditions
