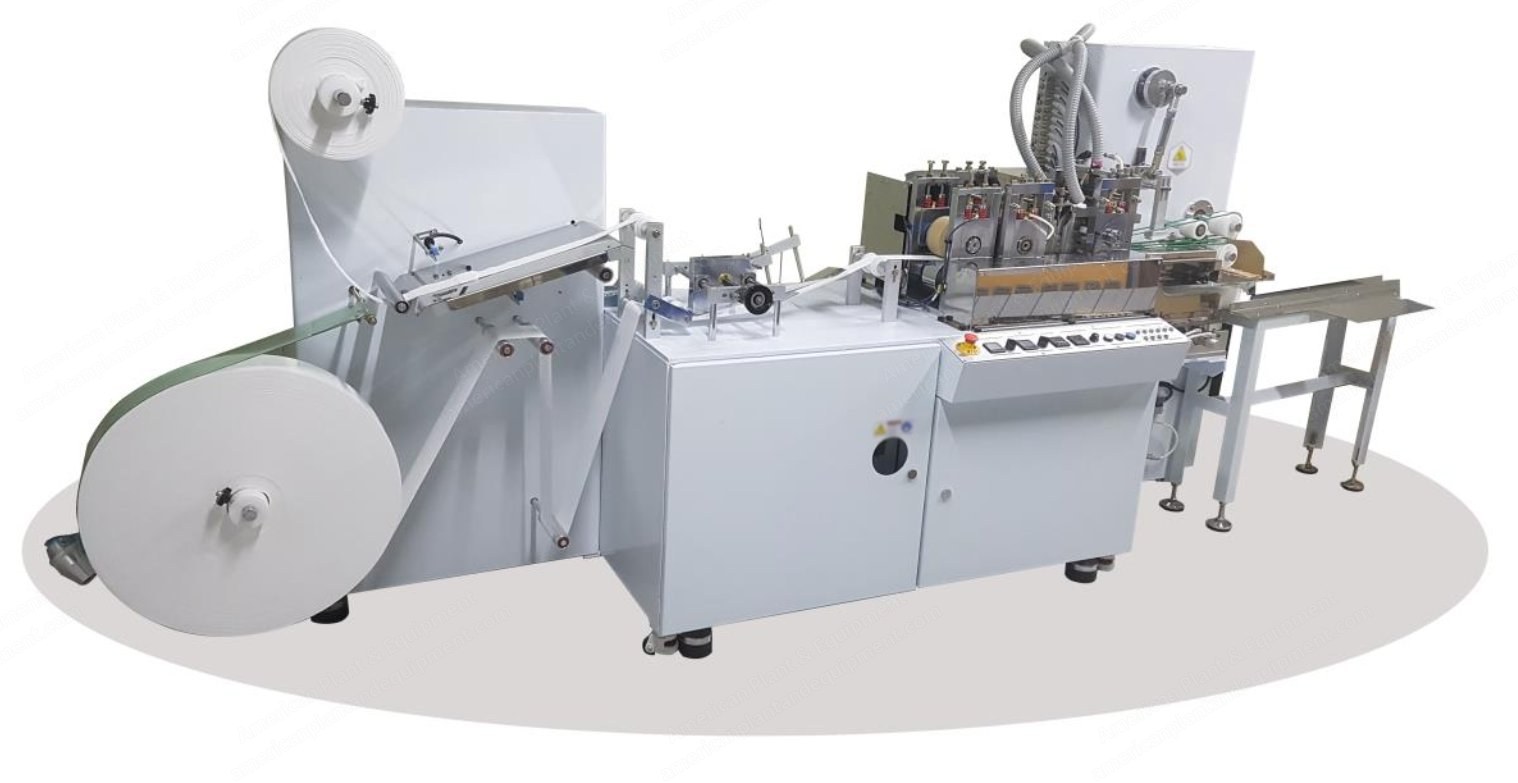

NovaStar, VC-450, Pillow Type Cotton Pad Machine, 450 pads/min, 5.5 kW

Description

Overview
1. Purpose: produces pillow-shaped cotton pads with a lower-weight spun lace wrap inside; top and bottom are heat-sealed and cut by a rotary cutter at high speed.
2. Manufacturing process: unwinding – wrapping – embossing – rotary cutting – pushing – counting.
Product Specifications
1. Product size: approx. 52 mm wide x 72 mm long +/- 2 mm.
2. Production capacity: 450 pads/minute at maximum.
Materials
1. Outer layer: 30–40 gsm spun lace in 120 mm wide.
2. Inside: approx. 130–150 gsm cotton band in 50 mm wide.
Electrical and Utility Requirements
1. Electric power: 5.5 kW, AC480V, 3 phases, 50/60 Hz.
2. Compressed air: 6 bar.
Dimensions and Weight
1. Dimensions: 3930 (L) x 760 (W) x 1960 (H) mm.
2. Weight: approx. 800 kg.
Condition
1. Quantity: 1.

Voltage	380 V
