Reverse Osmosis Water Purification System Barge, 300,000 GPD, 120ft Length, 2x Caterpillar 3406 Pumps

Reverse Osmosis Water Purification System Barge, 300,000 GPD, 120ft Length, 2x Caterpillar 3406 Pumps

Description

  1. Overview
    1. Ready for immediate deployment.
    2. The 2 desalination systems onboard are capable of producing a daily maximum of 300,000 gallons of filtered, desalinated and drinkable water from seawater.
  2. Barge Dimensions
    1. Length: 120 ft (36.6 m)
    2. Beam: 33 ft (10.1 m)
    3. Depth: 10 1/2 ft (3.2 m)
    4. Displacement: 505 tons (513 tonnes)
  3. Equipment Included
    1. 2 banks reverse osmosis water purification units
    2. Onboard chlorine manufacturing unit
    3. 2 Caterpillar 3406-engined high-pressure water pumps

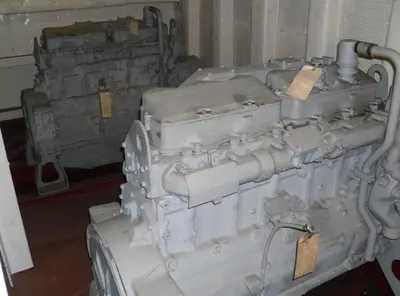

    4. 2 Caterpillar 3406 back-up engines
    5. 2 high-pressure back-up pumps
    6. 2 Caterpillar 3306 155 kW marine generators
    7. 20 kW Caterpillar marine harbour generator
    8. 4 hydraulic anchor winches and anchors
    9. 45 t/m hydraulic crane
    10. 2 electric delivery pumps
    11. 2,500 ft (762 m) electric hose reel with 6 in (152.4 mm) delivery hose
  4. Anchoring Equipment
    1. Quantity 2 port side
    2. Quantity 2 starboard side
    3. Rated 8000 lbs
    4. Wire rope 600 ft
    5. Anchors 4: type 1000 lbs standard Danforth
  5. Bow Crane
    1. Manufacturer: Gru Idrauliche (Morgan Crane Comp)
    2. Type: single arm hydraulic articulating
    3. 41895 lbs at 6 ft 7 in
    4. 2425 lbs at 30 ft
  6. Raw Water Pumps
    1. Quantity: 2
    2. Type: centrifugal direct coupling
  7. Cartridge Filter Assembly
    1. Quantity: 2
    2. Capacity: 12 filters

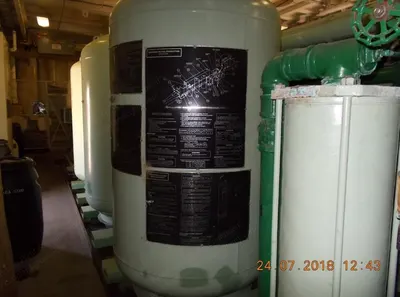

  8. Multimedia Filters
    1. Quantity: 6

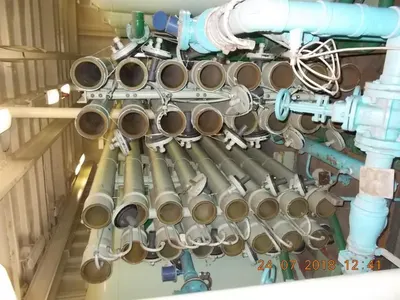

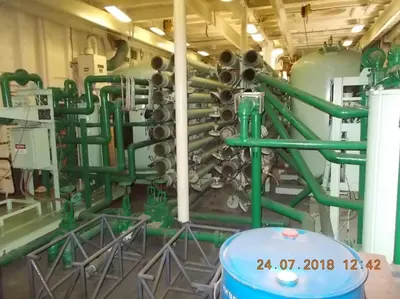

  9. Reverse Osmosis Block
    1. Quantity: block of 16 tubes
    2. Each tube: 5 reverse osmosis membrane elements
  10. Chlorination Unit
    1. Quantity: 1 unit

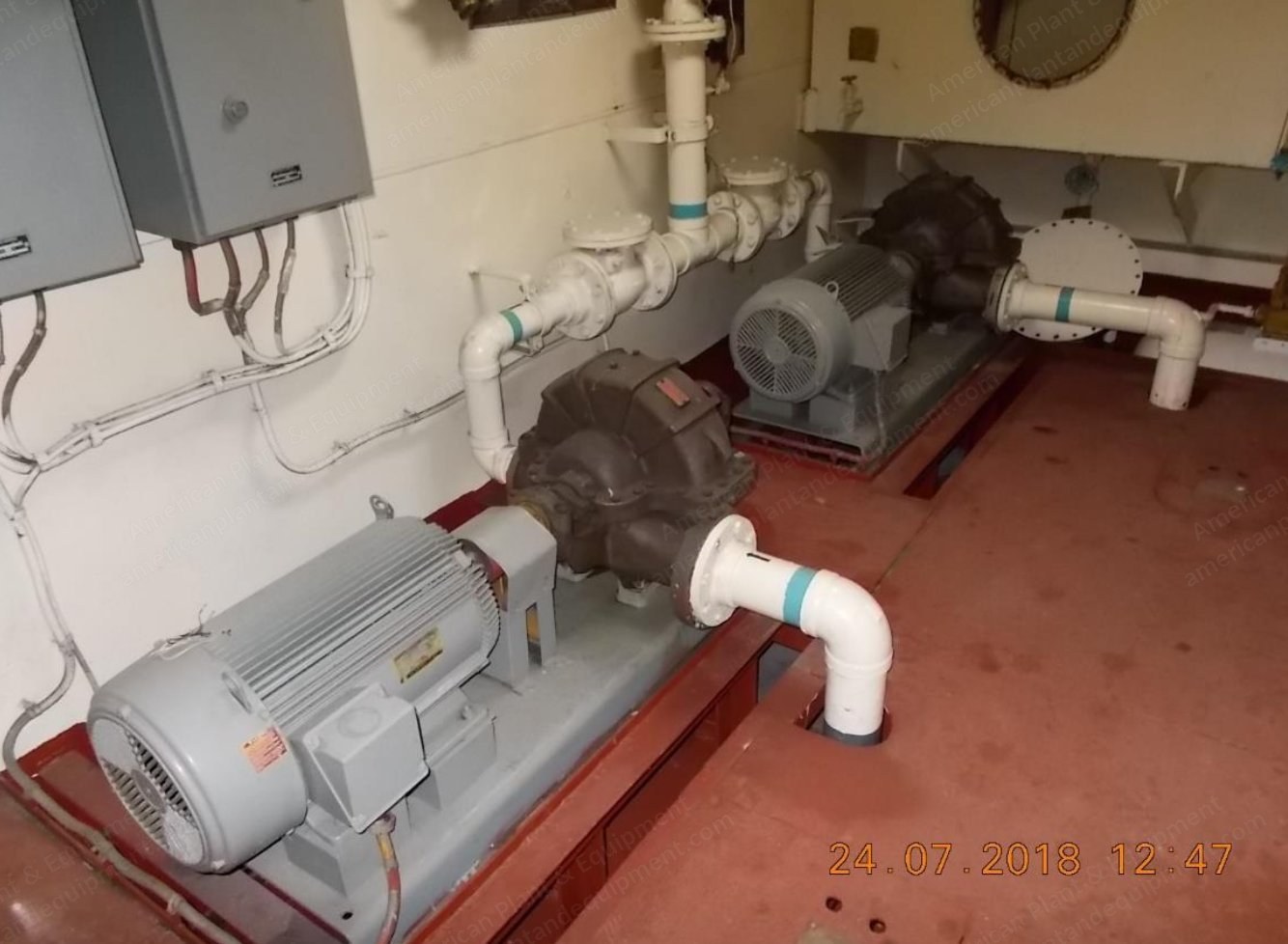

  11. Discharge Pumps
    1. Quantity: 2
    2. Type: 421-8B
    3. RPM: 1750
    4. GPM: 260
  12. Shore Discharge Hydraulic Hose Reel
    1. Material: Coflexip
    2. Length: 2500 feet
  13. Overhead Work Electric Crane
    1. Make: Spanmaster, 5 tons
  14. Ventilation
    1. Quantity 6 extractors
    2. Quantity 2 blowers
  15. Air Compressor
    1. Bedford Indiana, Natlbd 31823
  16. Welding Set
    1. Lincoln
  17. Workshop
    1. Quantity 1 press Famco
    2. Quantity 1 pillar drill Rockwell
    3. Quantity 1 grinding wheel Baldor
    4. Quantity 1 vice
    5. Quantity 1 work bench

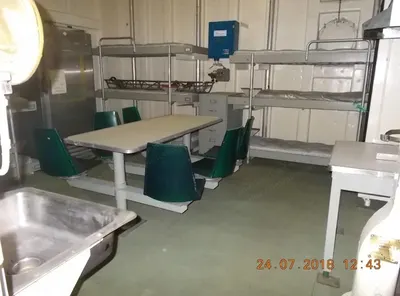

  18. Accommodation
    1. Bunk beds: quantity 3, sleeps 9
    2. Fridge freezer: quantity 1
    3. Washing machines: quantity 2
  19. High Pressure Pump
    1. Type: Roto-Jet V belt Deven
    2. Rating: 350 GPM (1325 L/min) at 805 PSI (5550 kPa)
    3. HP/RPM: 260 BHP / 4380 RPM
  20. Main RO Pump 1
    1. Type: diesel
    2. Power rated: 325 HP @ 2100 RPM / 250 HP @ 1800 RPM
    3. Engine model: 3406 DI Caterpillar
    4. Serial no: 6TB02014
    5. Arrangement no: 4W 841
    6. Total hours: 841
  21. Specifications
    1. Weight: 513000
