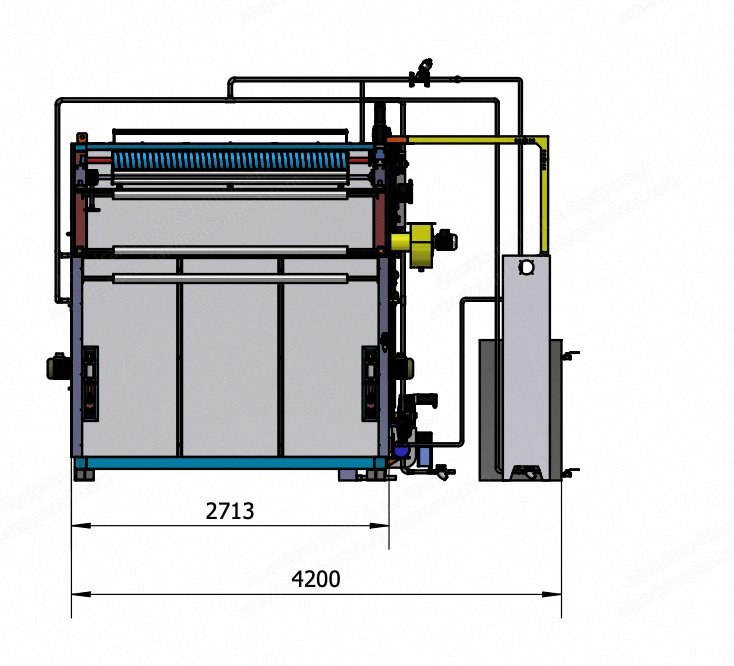

Description Overview Effective width: 1800mm (roll surface 2000mm) Capacity: 45m Hanging rod pitch: 190.5mm Loop length: 1750mm Specifications Steaming time range: 8~40min Temperature range: 100~120°C Heating method: heat exchanger heating (medium: steam) Humidification method: spray humidification Ring forming method: air blowing to form a ring Way of entering and exiting the cloth: advancing the cloth and then exiting the cloth Box plate: 316L stainless steel Top heating method: steam coil + heat conduction oil (without heat conduction oil) Electrical Electrical: 480V 3 phase 4 wires + ground wire Total power of the whole machine: 8kW External electric heating steam generator power: 36kW x 2
