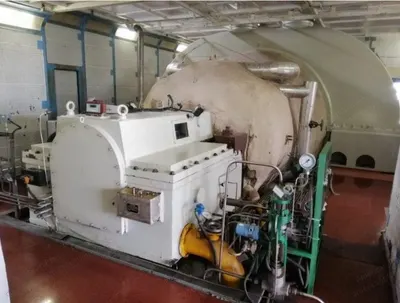

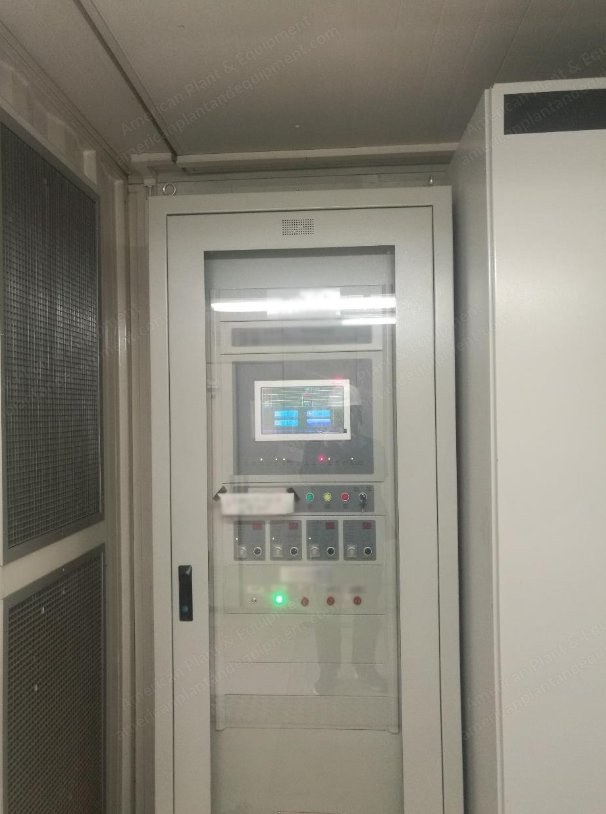

Description Scope Of Supply Gas turbine unit Generator Air filters, filter house and structures Auxiliary compartment with load gearbox, starting motor and accessories Exhaust system and chimney Fin fan coolers Atomizing air system Air compressor and dryer Fire fighting system, piping and equipment Gas control station Fuel oil pumping station Filter house fogging system Compressor washing skid Interconnecting piping, pipe racks and structures Cooling water system, pumping stations and piping Enclosures, walkways and related structures Electrical system (MCC, PCC, etc) Existing containerized control room with Mark-V control system Power transformer Auxiliary transformer 15 kV bus duct and HV connections Power and control cables Cable trays and supporting structures AVR, GCB and UPS systems to be supplied after completion of ongoing repair at Alstom facility Supply of a new, unused Mark-VI control system is part of the above scope Generator Details OEM: Alstom Unit: GT8 Generator type: T240-370 Rating: 165 MVA Voltage: 15 kV Power factor: 0.8 Frequency: 50 Hz Excitation: Brushless Cooling: TEWAC
