NovaStar, FM100, Non-Woven Mask Body Making Machine, 120 to 160 pcs/min, 1 to 5 Layers, 4.5 kW (New)

NovaStar, FM100, Non-Woven Mask Body Making Machine, 120 to 160 pcs/min, 1 to 5 Layers, 4.5 kW

Description

  1. Overview

    1. Machine can only produce mask body; ultrasonic welding machine is needed to weld the ear-loop.

    2. Main mask making machine incorporates advanced design; placing raw material on the feeding rack is the only manual step.

    3. Upon completion of modulating, only one person is needed to operate and fully realize automatic production.

    4. Equipment incorporates ultrasonic welding, which is sanitary and environment friendly.

    5. Output is 120 to 160 pcs/min.

    6. Length of nose bridge bar can be adjusted.

    7. By replacing parts of the molds, a variety of mask specifications can be achieved.

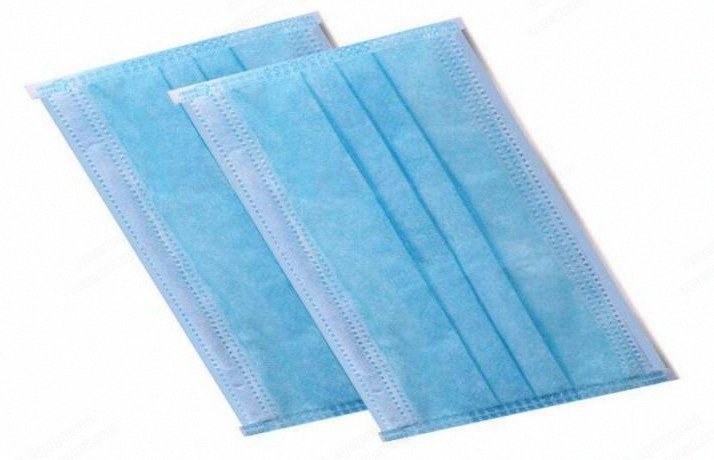

    8. Can produce all kinds of non-woven masks: smooth cloth masks, gauze masks, activated carbon masks, double-nasal line masks.

    9. Can do 1 to 5 layers of non-woven mask sheet production.

  2. Specifications

    1. Product size error: ±1 mm

    2. Overall dimension: 5850 x 700 x 1850 mm

    3. Voltage: AC 220V, 50 or 60 Hz

    4. Production speed: 120 to 160 pcs/min

    5. Power: 4.5 kW

    6. Weight: 1000 kg

  3. Lead Time

    1. 5 to 7 weeks from receipt of order
