NovaStar, NN101, Meltblown Machine, 1600mm, 1814 kg/24h Capacity, 450 kW (New)

NovaStar, NN101, Meltblown Machine, 1600mm, 1814 kg/24h Capacity, 450 kW

Description

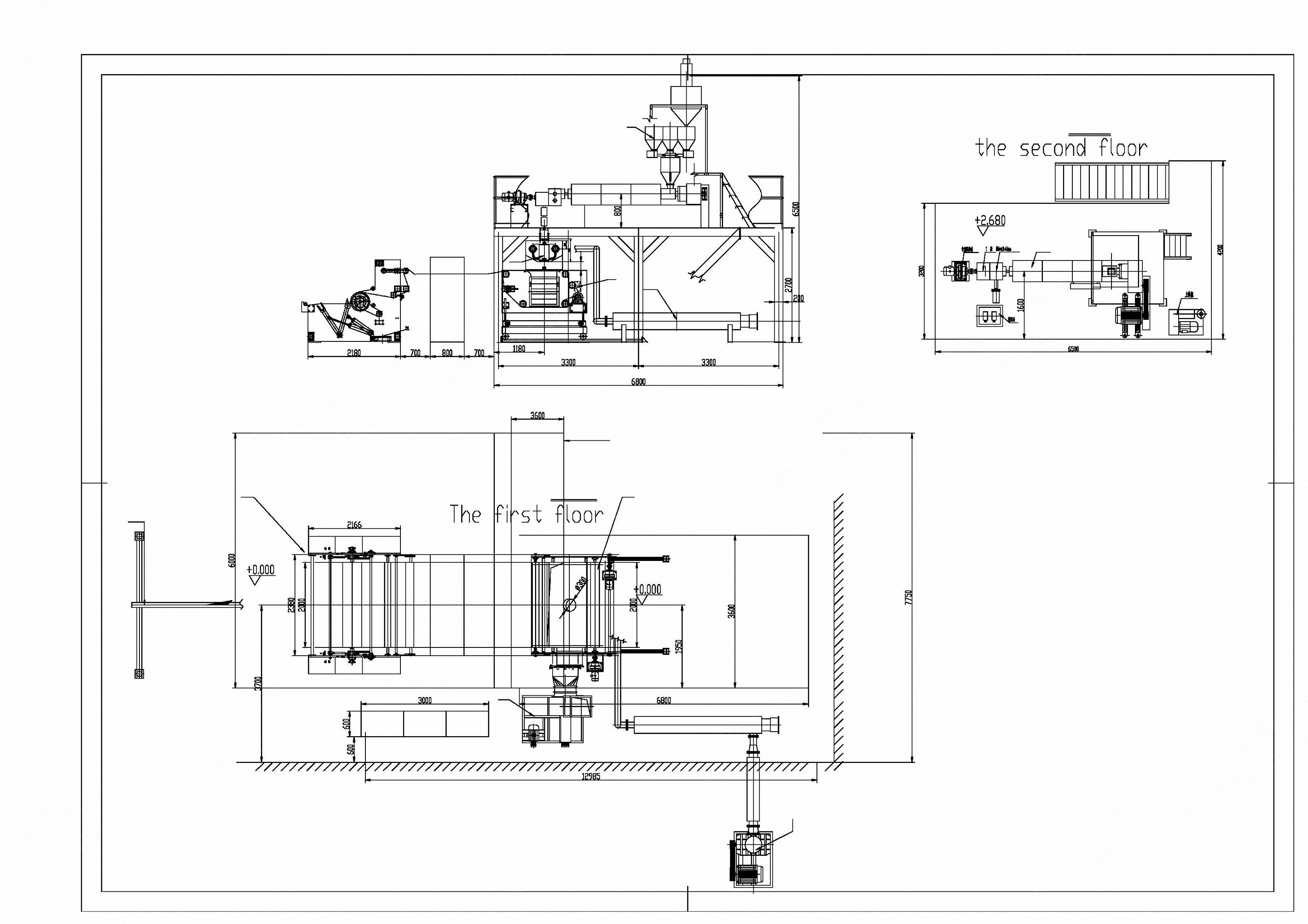

  1. Production Flow
    1. Parts of meltblown machine: feeding part, main extruder, filter, pump, air heating system, melt blown sprayer, web former, winder.
    2. Melt blown flow: raw material, melting, filtering, measuring, air heating, spraying, web forming, winding, final product.
  2. Specifications
    1. Machine type: meltblown.
    2. Working width: 1600 mm.
    3. Speed: ≤ 60 m/min.
    4. Extruder diameter: 73 kW, 1 set.
    5. Product weight range: 15 to 80 gsm.
    6. Filament thickness: 2 to 5 microns.
    7. Max roll diameter: 800 mm.
    8. Max output: 1814.37 kg/24 hours.
    9. Dimension: 15000 x 10000 x 8000 mm.
    10. Weight: 6 tons.
    11. Power (total kW): 450 kW.
    12. Voltage: 220 volts and 50/60 Hz.
    13. Quantity of containers needed: 3 x 40.
    14. Production time: 45 to 50 days.
