NovaStar, FM111, 100 to 120 pcs/min, 3kW, 2150x1100x1300mm (New)

NovaStar, FM111, 100 to 120 pcs/min, 3kW, 2150x1100x1300mm

Description

  1. Overview
    1. Mask making machine used for automatic production of multi-layer material face mask special equipment.
    2. Can form up to 2 to 3 layers of pp non-woven cloth, activated carbon and cotton filter.
    3. Whole machine from raw material into the nose line insertion, sealing, cutting finished products are in line of automatic operation.
  2. Main Specifications
    1. Capacity: max 100 to 120 pcs per min.
    2. Machine power: 3 kW.
    3. Machine size (l x w x h): 2150 x 1100 x 1300 mm.
    4. Net weight: 380 kg.
    5. Power supply: 220 V or 380 V, 50 to 60 Hz.
  3. Optional Equipment

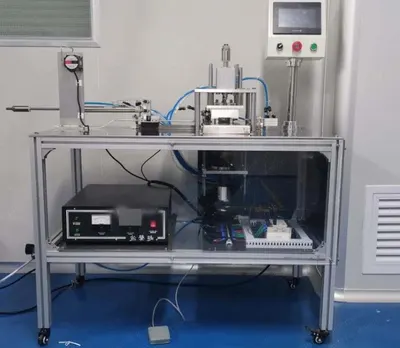

    1. Automatic inside ear loop welding machine
      1. Speed: 20 to 50 pcs per min (speed adjustable).
      2. Size: 2800 x 950 x 1900 mm.
      3. Air compressor: 3 kg per cm².
      4. Weight: 300 kg.
    2. Semi-auto ear loop welding machine (cut line automatic)
      1. Speed: 30 to 40 pcs per min.
      2. Size: 800 x 120 x 135 mm.
      3. Air compressor: 3 kg per cm².
      4. Weight: 150 kg.

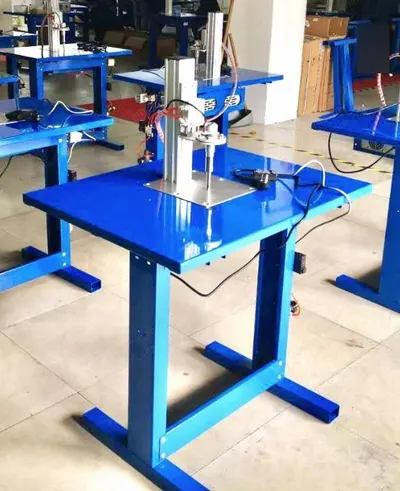

    3. Single spot ear loop welding machine (cut line by hand in advance)
      1. Speed: 15 to 20 pcs per min.
      2. Size: 800 x 800 x 1200 mm.
      3. Air compressor: 3 kg per cm².
      4. Weight: 70 kg.
  4. Lead Time
    1. 5 to 7 weeks from receipt of order.
