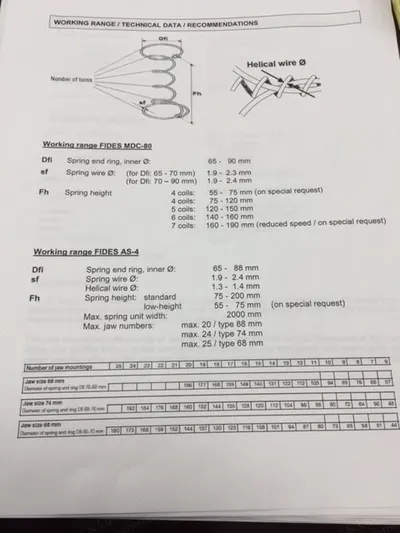

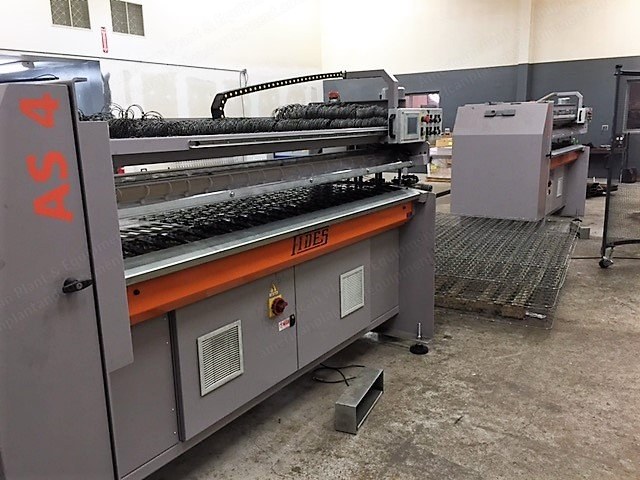

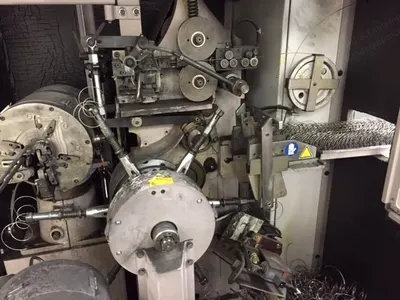

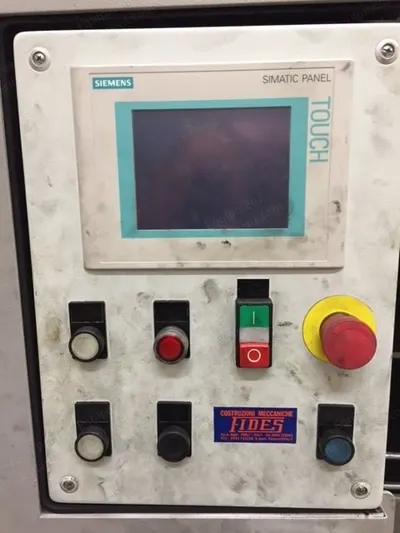

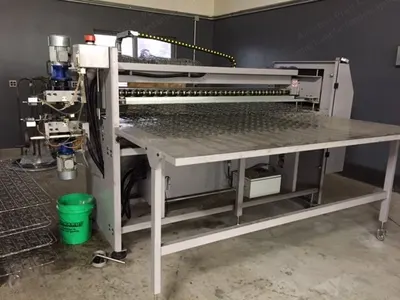

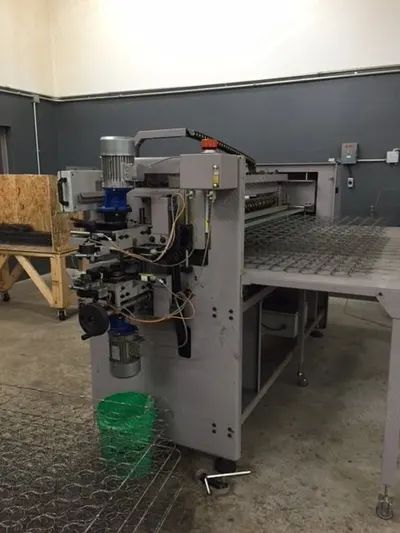

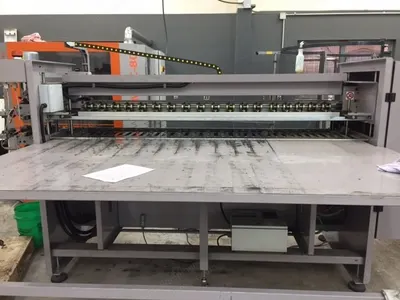

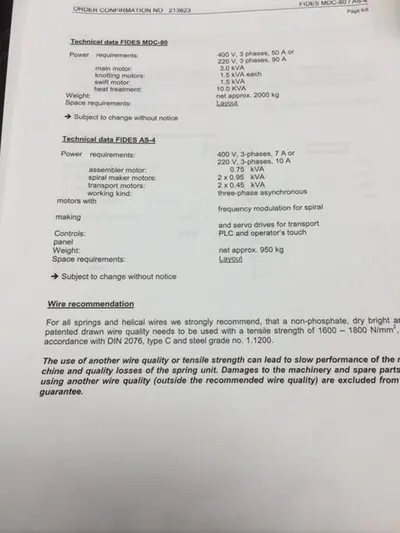

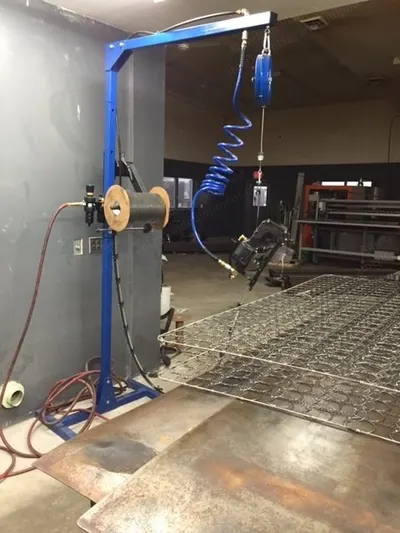

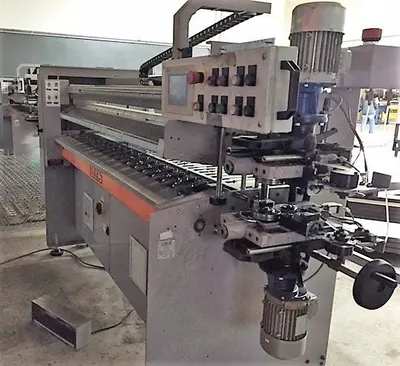

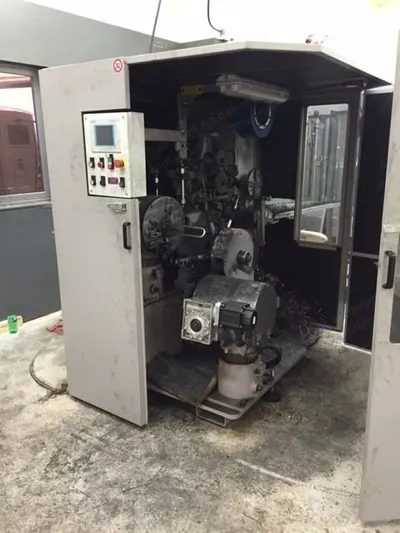

Description Overview 1 coiler 2 assemblers 1 border clipping station All items above sold as a lot Fides MDC-80 Coiler Power requirements: 400 V, 3 phases, 50 A or 220 V, 3 phases, 90 A Main motor: 3.0 kVA Knotting motors: 1.5 kVA each Swifting motor: 1.5 kVA Heat treatment: 10.0 kVA Weight: net approx. 2000 kg Space requirements: layout Dfi (spring end ring, inner Ø): 65 – 88 mm sf (spring wire Ø): for Dfi 65 – 70 mm: 1.9 – 2.3 mm; for Dfi 70 – 90 mm: 1.9 – 2.4 mm Fh (spring height): 4 coils: 55 – 75 mm (on special request); 4 coils: 75 – 120 mm; 5 coils: 102 – 150 mm; 6 coils: 140 – 160 mm; 7 coils: 160 – 190 mm (reduced speed / on special request) Fides AS-4 Assembler Power requirements: 400 V, 3 phases, 7 A or 220 V, 3 phases, 10 A Assembler motor: 0.75 kVA Spiral maker motors: 2 x 0.95 kVA Transport motor: 2 x 0.95 kVA Working kind: three-phase asynchronous motors with frequency modulations for spiral making and servo drives for transport Controls: PLC and operator’s touch panel Weight: net approx. 950 kg Space requirements: layout Dfi (spring end ring, inner Ø): 65 – 88 mm sf (spring wire Ø): 1.9 – 2.4 mm Helical wire Ø: 1.3 – 1.4 mm Fh (spring height): standard 75 – 200 mm; low-height 55 – 75 mm (on special request) Max. spring unit width: 2000 mm Max. jaw numbers: max. 20 / type 88 mm; max. 24 / type 74 mm; max. 25 / type 68 mm Condition and Included All items are sold as a lot Includes the coiler, two assemblers, and one border clipping station Not specified in the provided description Image
