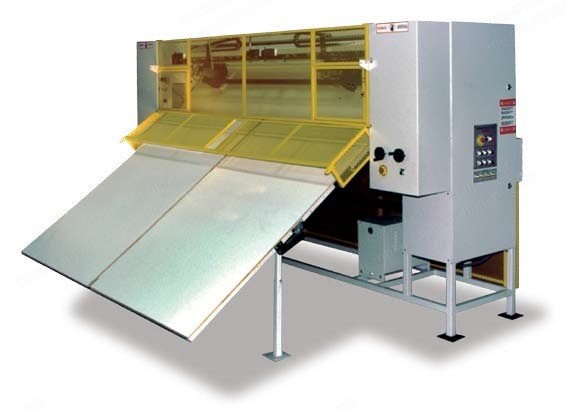

Description Overview Gribetz PCS standard panel cutter Dependable high speed mattress cutter for thick or thin quilt packages One of the most popular and trusted panel cutters in the worldwide bedding industry Workhorse panel cutter in the mattress industry Cuts through mattress panels quickly and dependably Specifications Manual adjustable trim blades Selector control for four (4) photo eyes easily adjust length of twin, full, queen, and king panel sizes High-speed capability: accepts quilting machine feed rate of 2 ½ yards (2.74 m) per minute Control panel functions include: roller – forward/reverse; up/down & roller jog; eye select; sharpen mode; sweep cut; manual mode Simple microprocessor control system Electronically controlled accumulator system Optional wind-up attachment available Meets all OSHA and CE safety directives High speed, high torque electric motors Available cutting widths: 90”/229 cm, 110”/279 cm, 136”/345 cm Maximum length: 90”/228.6 cm Maximum cutting thickness: 2.5”/64 mm Voltage: any 3 phase voltage – includes multi-tap transformer Current (aps): 10, 15, or 20 depending on voltage Air pressure: 90 psi / 6.2 bar Air consumption: 3 cfm Ce approved: yes Repeatability: ± ¼” / 6.4 mm Dimensions And Weight Weight: 2,400 lbs / 1,089 kg Height (90” model): 96”/244 cm Width (90” model): 142”/361 cm Length (90” model): 85”/216 cm
